7. Electrical installation
Installer reference guide / Mono tank integrated type 102

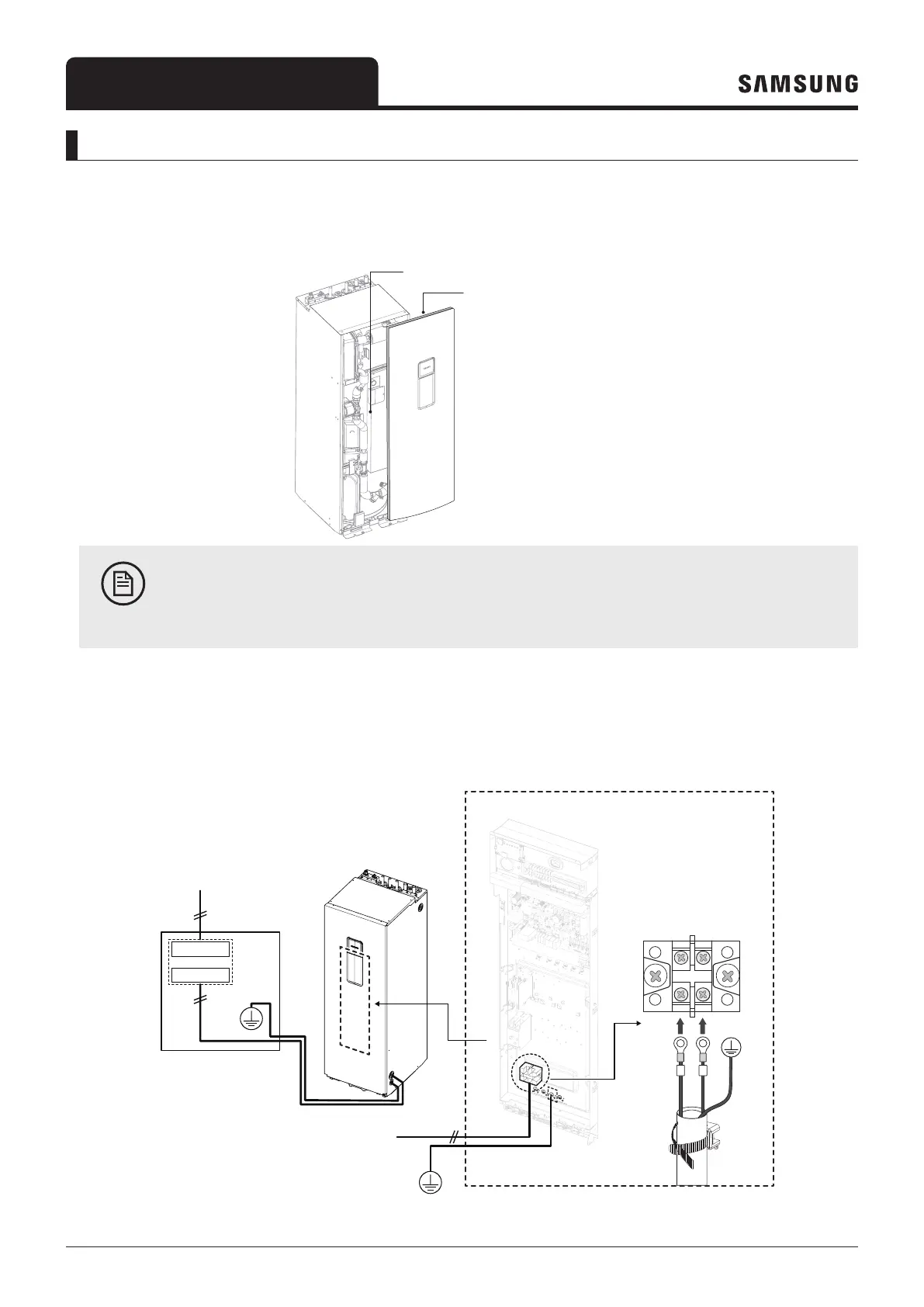

To connect the main power supply
To access the switch box:
1 Unscrew the front panel screws and take the front panel from the indoor unit.
2 Unscrew the control box cover.
②
①
1 Front panel
2 Control box cover
NOTE
Store both panel and cover in a safe place to avoid damage or injury.
Power supply cable connections to the power in/out terminal of the control panel.
• 1 phase product
L N
L N
1Φ, 220-240Vac
Distribution board
1 phase AC POWER-IN
220~240V~
MCB + ELB
RCBO(ELCB)
Earthing
Earthing
1 phase AC POWER
or
