4. Typical applications
Installer reference guide / Mono tank integrated type 24

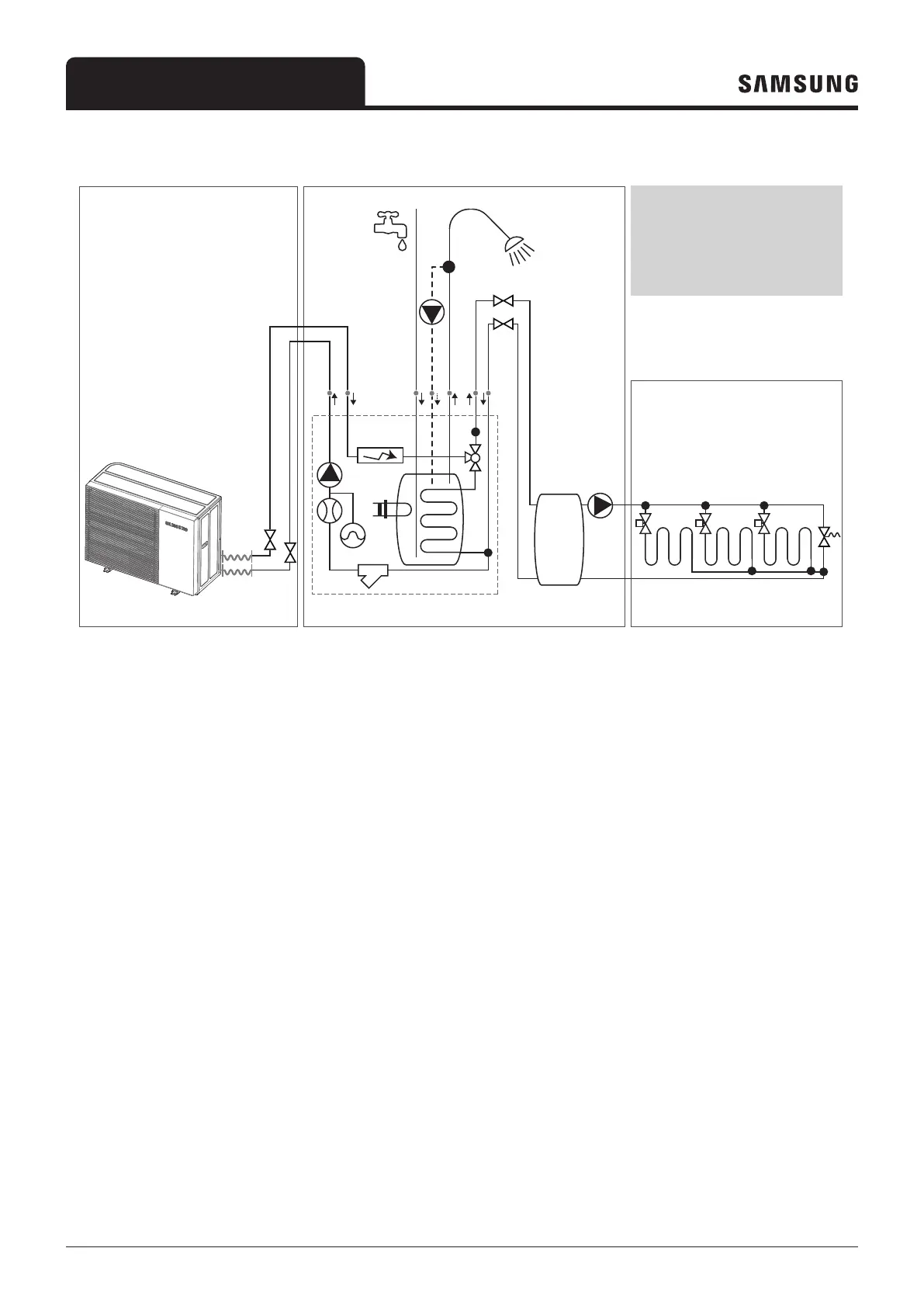

4.2 Single zone underfloor
Outdoor Indoor
FSV to set:
2091 or 2093 = 1,2,3 or 4
3011 = 1 or 2
4021 = 1
4022 = 1
4023 = 1
FSV to check:
4024
4025
Outdoor unit ClimateHub Indoor unit
Underfloor Heating
Secondary
pump
ClimateHub
components:
a. Return to ODU
b. Supply from ODU
c. Fresh water in
d. DHW return
e. DHW supply
f. Supply to zone
g. Return from zone
h. Backup heater
i. Diverter valve
j. Primary pump
k. DHW Tank
l. Flow meter
m. Booster Heater
n. Expansion vessel
o. Y-Strainer
p. spring loaded bypass
(in combination with a
fixed speed pump and
thermostatic valves)
Flexible
pipe
a.
j.
l.
n.
o.
m.
k.
h. i.
b. c. d. e. f. g.
p.
Zone
Buffer
• The combination of a single underfloor heating zone and DHW heating requires settings of FSVs (#2091 (ext.
thermostat) or 2093 (Samsung wired remote) set to 1~4 and #3011 set to 1~2 ).
• To enable the backup heater as an additional heat source, please set FSV (#4021, 4022). The backup heater must be
installed and operational by control logic. When ambient conditions can reach below 24°C.
• For the heating compensation at cold weather conditions and backup during defrost, please set FSV (#4023, 4024,
4025) accordingly.
