Samsung EHS AE080BXYDGG/EU - Mono Refrigerant Circuit Diagram Outdoor Unit

12. Technical data
Installer reference guide / Mono tank integrated type 201

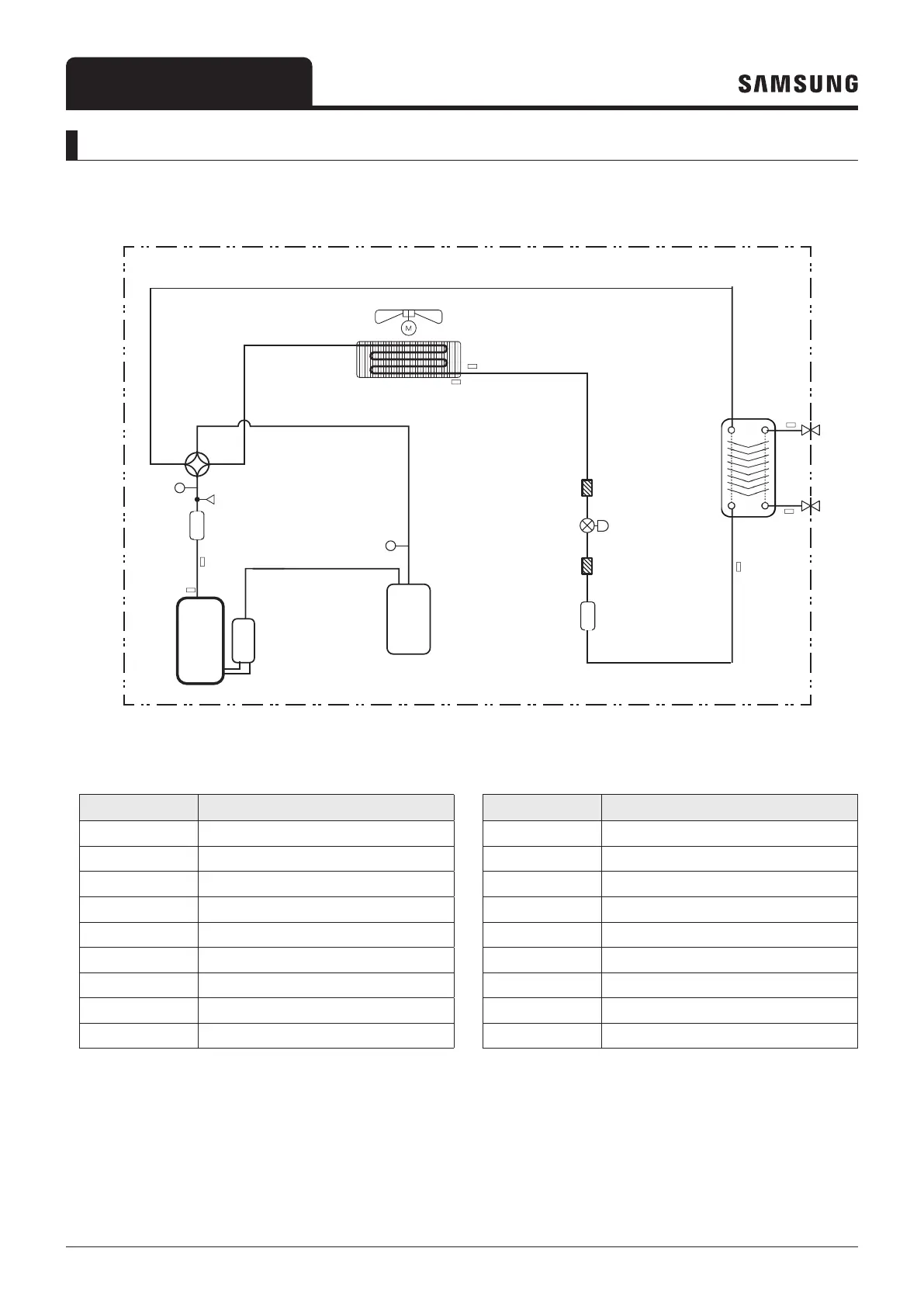

Mono Refrigerant circuit diagram outdoor unit
• AE050/080/120/160RXYD*G/EU
OFM1
COMP
T_CO
T_A
V_4W
HX_M
AC
(E_M)
T_II
T_WI
HP s/w
Muffler
Muffler
T_D
PT_C
PW_H1
PT_C
T_CT
Part Description
COMP Inverter Compressor
AC Accumulator
HX_PHE Heat Exchanger - PHE
HX_M Heat Exchanger - Main (Outdoor unit)
OFM1 Outdoor Fan Motor 1
OFM2 Outdoor Fan Motor 2
V_4W Solenoid valve - 4Way
E_M Electronic Expansion Valve - Main
PW_H1 Pressure Switch
Part Description
PS_H Pressure Sensor - High
PT_C Service Port - Charging
T_A Thermistor - Ambient
T_C Thermistor - Compressor
T_D Thermistor - Discharge pipe
T_CO Thermistor - Cond Out
T_II Thermistor - Heat Exchanger In
T_WI Thermistor - Water In
T_WO Thermistor - Water Out
