5. Unit installation
Installer reference guide / Mono tank integrated type 41

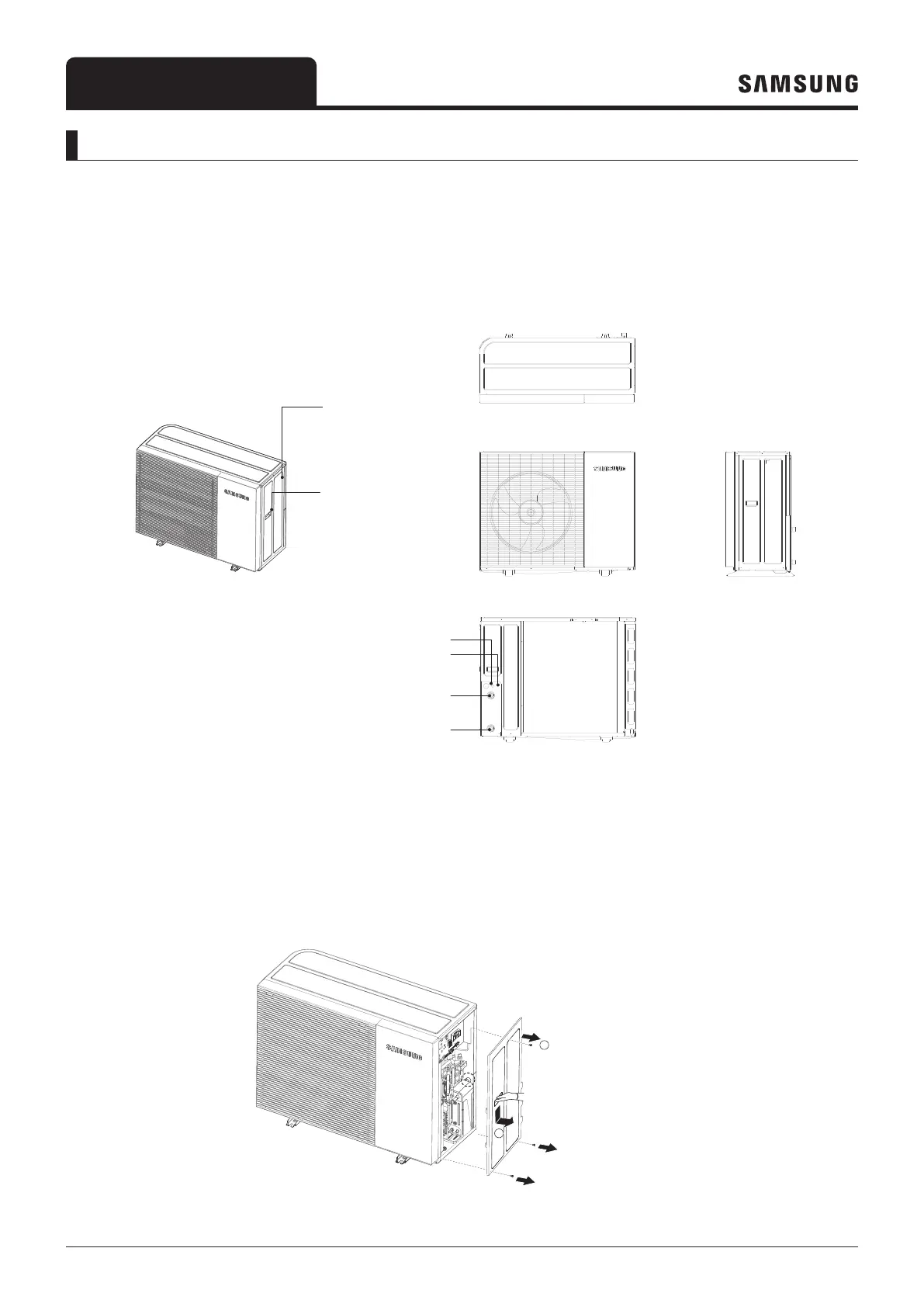

Opening the outdoor unit
To open the outdoor unit
Overview
※
AE080/AE120/140BXYD**
①
②
1. Front panel
2. Handle
3. Power wiring conduit hole
4. Communication wiring conduit hole
5. Water pipe (Out)
6. Water pipe (In)
④
⑤
⑥
③
Open
1 Remove the 3 screws of the side panel.
2 To remove the side panel, slide it down and pull it out.
1 32 4
