Installer reference guide / Mono tank integrated type 23
CAUTION
• The application examples given below are for illustration purposes only.
• When the Samsung air to water heat pump system is used with another heat source (e.g. gas boiler),
ensure that the return water temperature does not exceed 65 °C.
• The unit is only to be used in a closed water circuit system. Application in an open water circuit can lead
to excessive corrosion of the water piping.
• Samsung can not be responsible for incorrect or unsafe conditions in the water system. Make sure that
the boiler, radiators, convectors, UFHs, FCUs, additional pumps, pipings, and controls in the water system
are in accordance with relevant local laws and regulations under the installer's responsibility.
• Samsung shall not be held liable for any damage resulting from not observing this rule.
• Samsung does not provide specific water system components such as pressure relief valve, air vent
valve, buffer tank and etc. Installers and end-users shall consider how to install the above designated
components in overall water system depending on the installation condition and the system
requirements. If the components are not installed in an appropriate location, the water system can not
be operated as designed.
※
UFH (Under floor heating), FCU (Fan coil unit)
※
BSH (Booster heater), FSV(Field setting value), DHW (Domestic hot water)
※
AE***BXYD*G/EU, AE***RXYD*G/EU

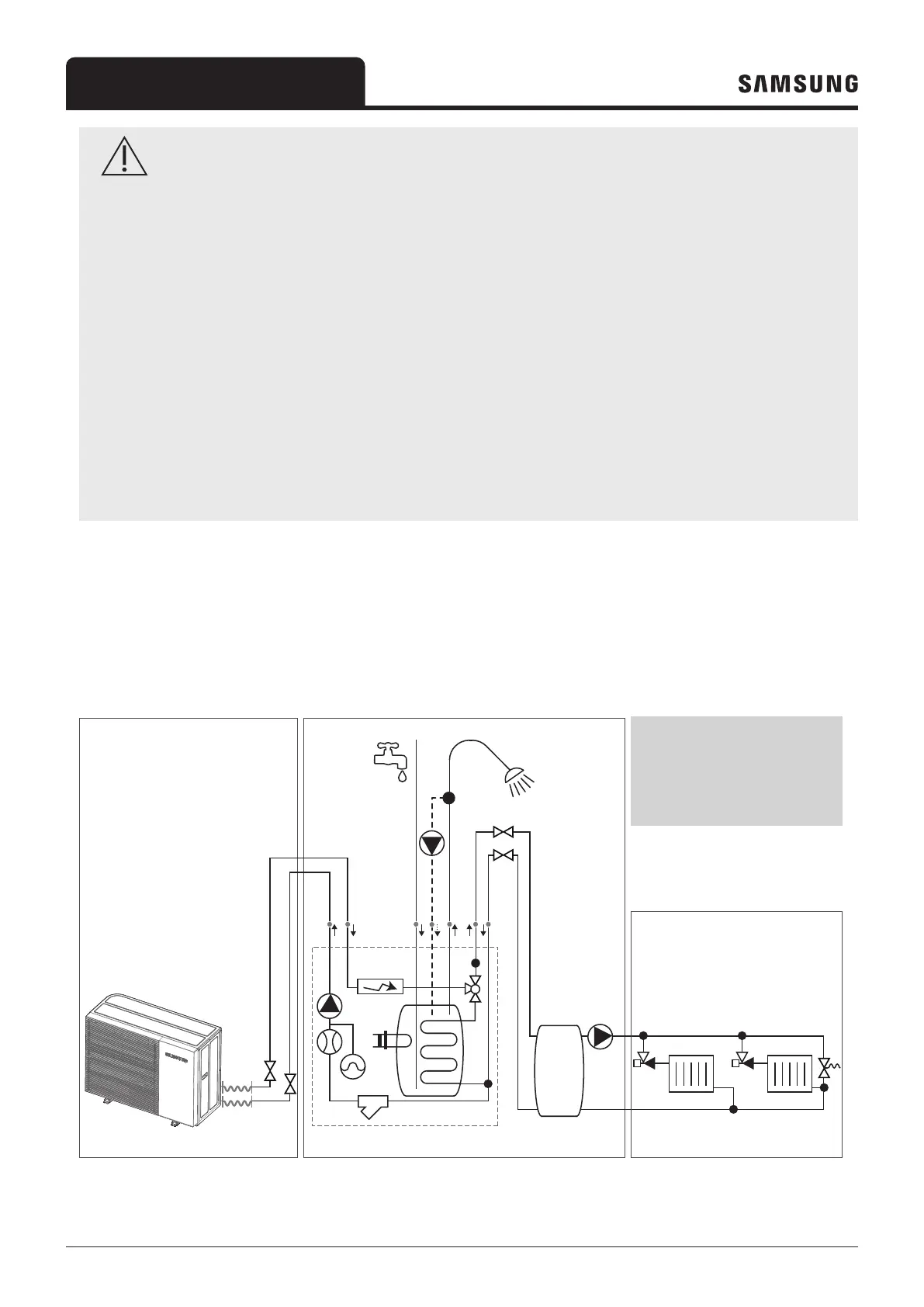

4.1 Single zone radiator
Outdoor Indoor
FSV to set:
2092 or 2093 = 1,2,3 or 4
3011 = 1 or 2
4021 = 1
4022 = 1
4023 = 1
FSV to check:
4024
4025
Outdoor unit Cl
imateHub Indoor unit
Radiator Heating
Thermostatic Valve
p. spring loaded bypass
(in combination with a
fixed speed pump and
thermostatic valves)
Flexible
pipe
a.
j.
l.
n.
o.
m.
k.
h
. i.
b. c. d. e. f. g.
p.
Zone
Buffer
ClimateHub
components:
a.
Return to ODU
b. Supply from ODU
c. Fresh water in
d. DHW return
e. DHW supply
f. Supply to zone
g. Return from zone
h. Backup heater
i. Diverter valve
j. Primary pump
k. DHW Tank
l. Flow meter
m. Booster Heater
n. Expansion vessel
o. Y-Strainer
Secondary
pump
• The combination of a single radiator heating zone and DHW heating requires settings of FSVs (#2092 (ext. thermostat)
or 2093 (Samsung wired remote) set to 1~4 and #3011 set to 1~2 ).
