Installer reference guide / Mono tank integrated type 204

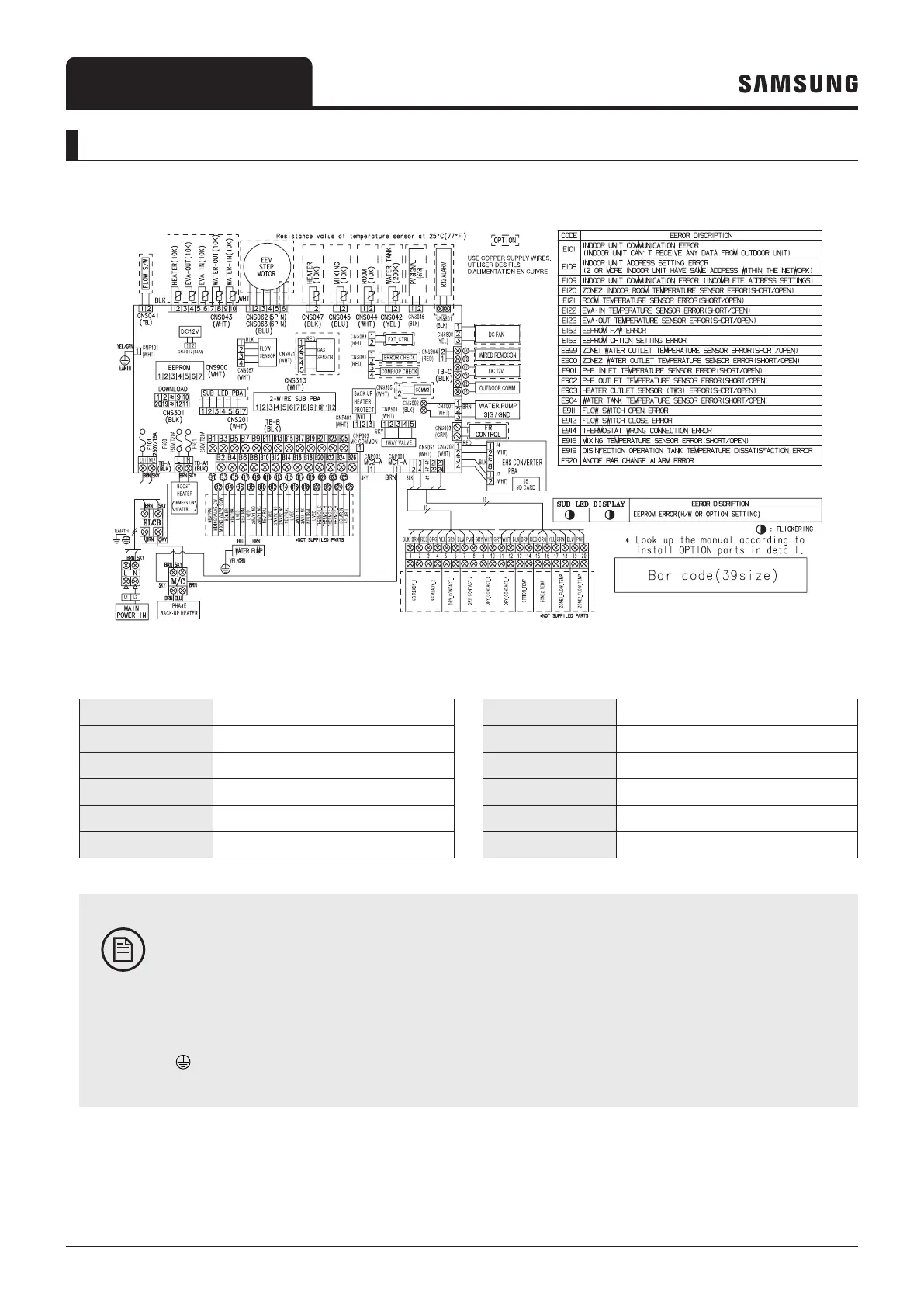

Electrical wiring diagram indoor unit
• AE200/260RNWMEG/EU
It does not support external input(CNS083)/output(CNS081) signal function
HEATER
Thermistor HEATER(10K)
EVA-OUT
Thermistor EVA-OUT(10K)
EVA-IN
Thermistor EVA-IN(10K)
WATER-OUT
Thermistor WATER-OUT(10K)
WATER-IN
Thermistor WATER-IN(10K)
MIXING
Thermistor MIXING VALVE(10K)
OUTDOOR COMM
Outdoor Communication
ELCB
Earth Leakage Circuit Breaker
WATER TANK
Thermistor WATER TANK(200K)
WIRED REMOCON
Wired Remote Controller
SIG/GND
Signal/Ground
M/C
Magnetic Contactor
NOTE
• Symbols show as follow :
BLK: black, RED: red, BLU: blue, WHT: white, YEL: yellow, BRN: brown, SKY: skyblue, GRN: green
• Wiring indoor-outdoor communication F1-F2, indoor-wired remote controller communication F3-F4.
• Protective earth (SCREW)
To Next Page
