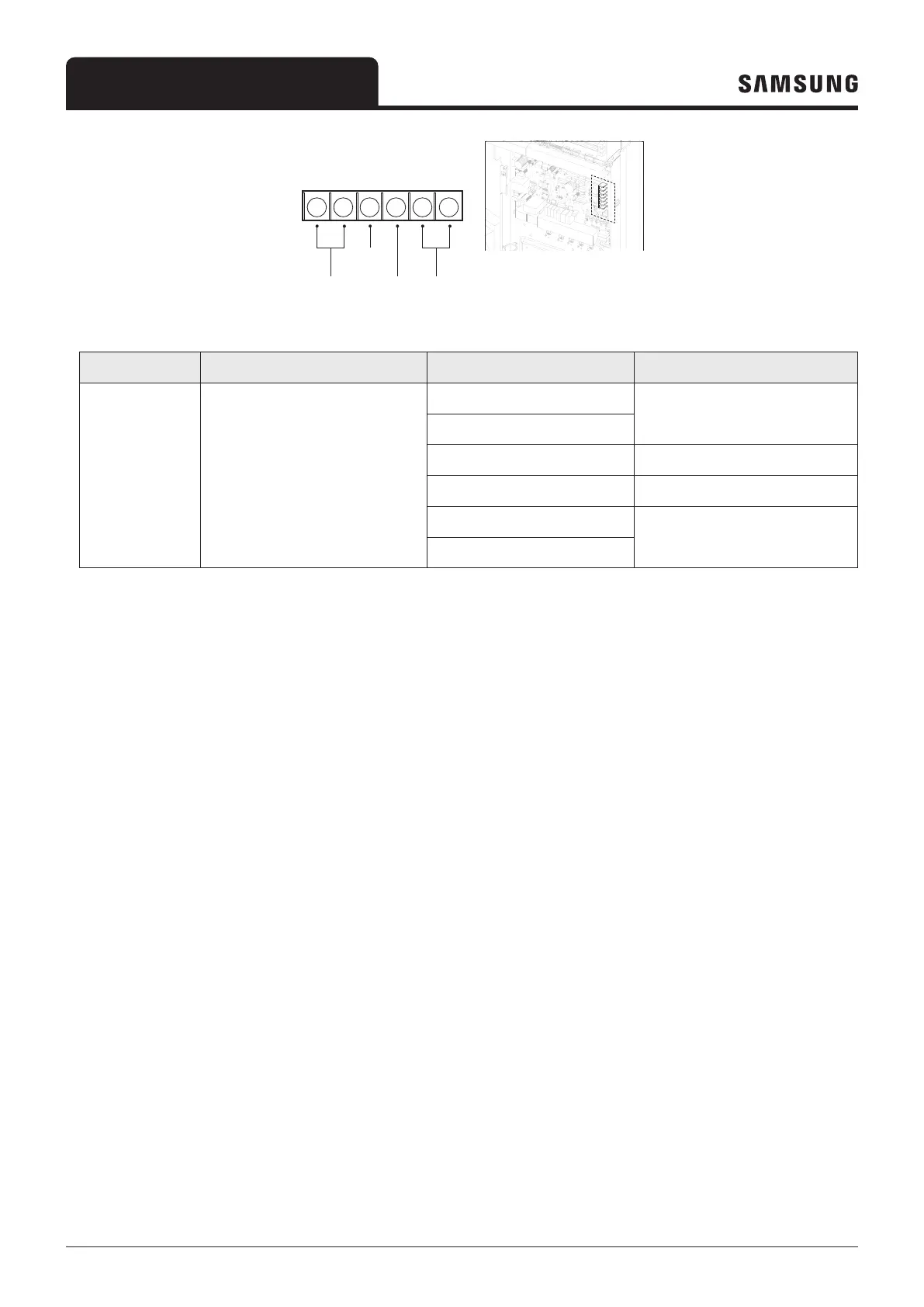

7. Electrical installation
Installer reference guide / Mono tank integrated type 93
F4V2F2 F3V1F1
COMMUNICATION
CABLE
WIRED REMOTE
CONTROLLER
DC
OUTPUT
DIGITAL
GROUND
Part code Part name Terminal Terminal description
TB-C Communication & DC 12V
#1:COM1 (F1)
Communication cable
#2:COM1 (F2)
#3:V1 (DC 12V) DC 12 V
#4:V2 (GND) Digital ground
#5:COM2 (F3)
Wired remote controller
#6:COM2 (F4)
