14

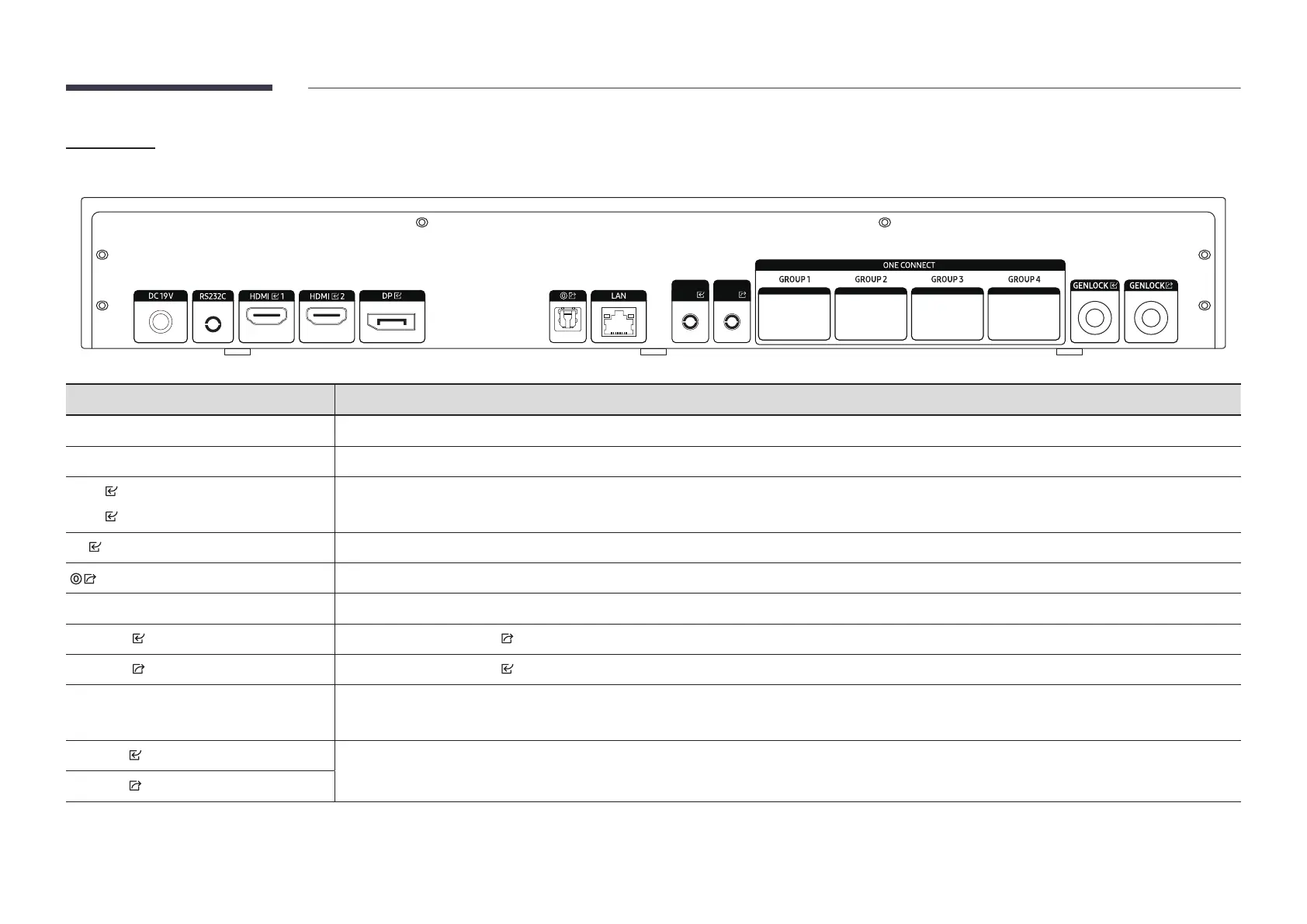

SBB-CS4B
"
The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
Parts Description
DC 19V
Connects to the AC/DC adapter.
RS232C
Used for service purposes.
HDMI 1
HDMI 2
Connects to a source device using a HDMI cable or HDMI-DVI cable.
DP
Connects to a PC using a DP cable.
Connects to a audio device using the optical(digital) cable.
LAN
Connect to a network using the LAN cable. (10/100 Mbps)
HDR DATA
Connects to the HDR DATA port on the next S-Box.
HDR DATA
Connects to the HDR DATA port on the previous S-Box to receive video data.
ONE CONNECT
(Group 1, Group 2, Group 3, Group 4)
Connects to a cabinet using an LC fiber cable.
GENLOCK
Used for synchronizing the S-Box with external camera signals.
GENLOCK
"
For further information on connection of some ports, refer to the installation guide.
