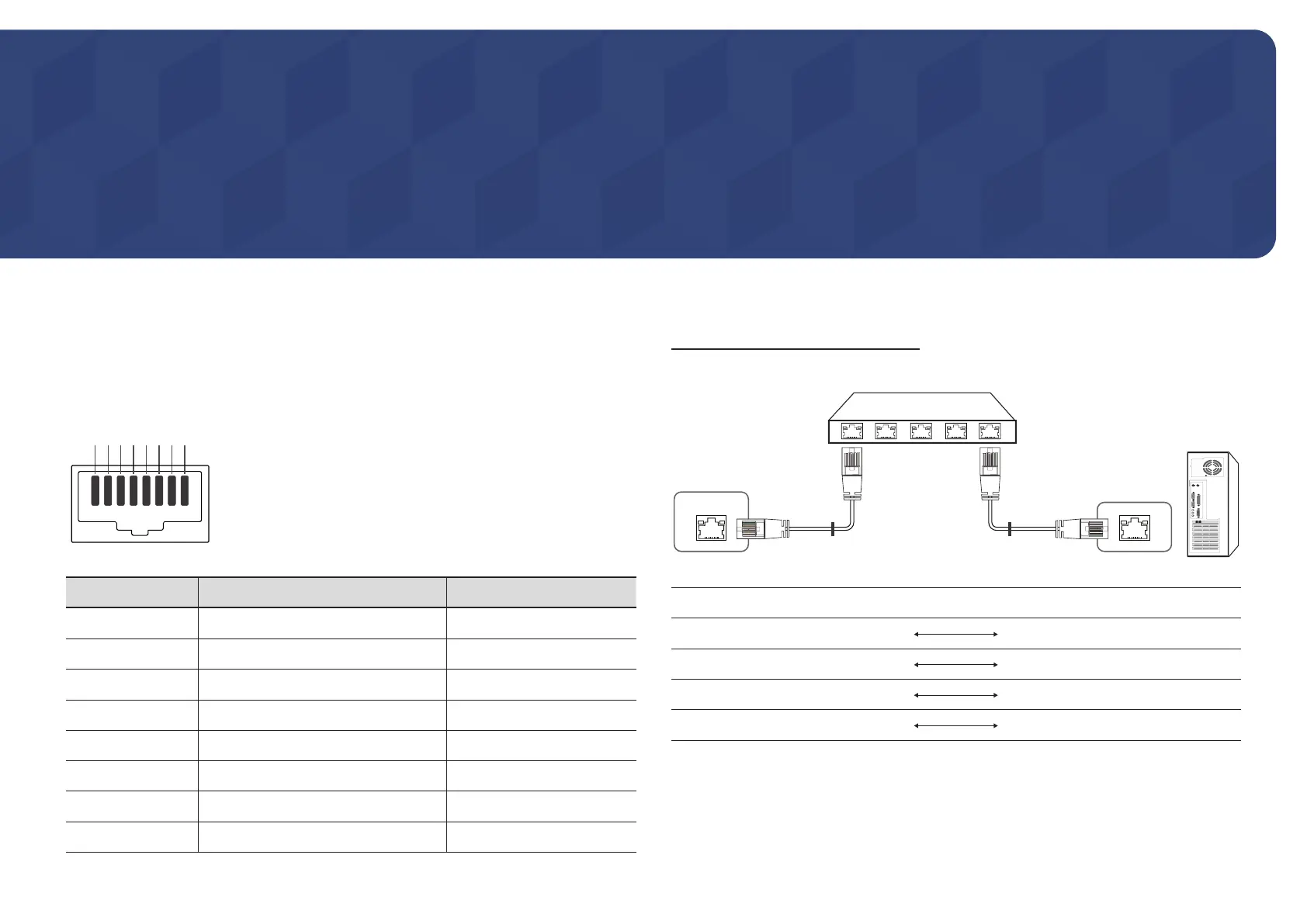

Cable Connection
LAN Cable
 Pin assignment
1 2 3 4 5 6 7 8
Pin No Standard Colour Signal
1 White and orange TX+
2 Orange TX-
3 White and green RX+
4 Blue NC
5 White and blue NC
6 Green RX-
7 White and brown NC
8 Brown NC
 Connector: RJ45
Direct LAN cable (PC to HUB)
LAN
HUB
P1
P1P2
P2
Signal P1 P2 Signal
TX+ 1 1 TX+
TX- 2
2 TX-
RX+ 3
3 RX+
RX- 6
6 RX-
Multiple Display Control
Control multiple display devices connected to a PC simultaneously.
