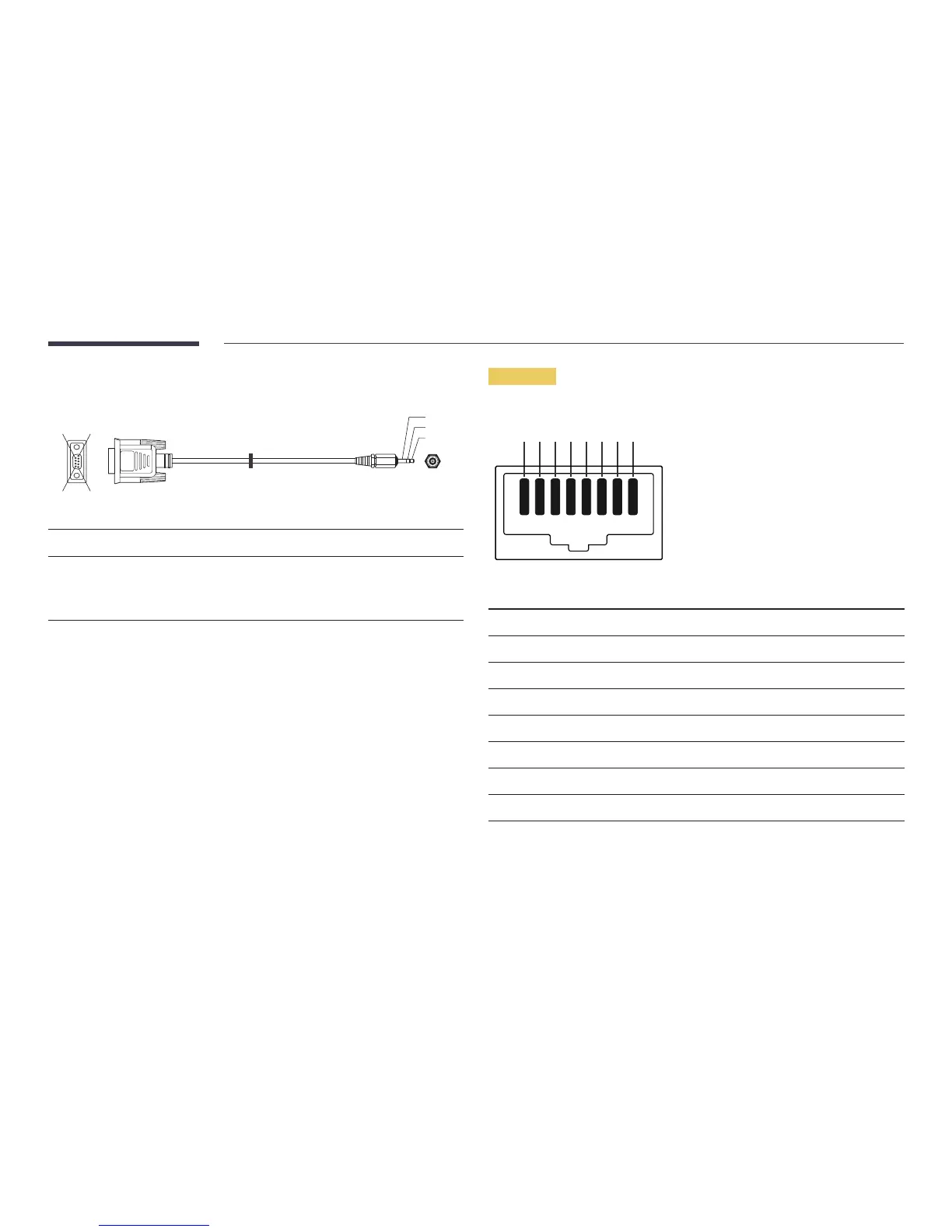

RS232C cable
Connector: 9-Pin D-Sub to Stereo Cable
1
59
6
-P2-
1
2
3
-P1-
-P1- -P1- -P2- -P2-
Female Rx
Tx
Gnd
2
3
5
-------->
<--------
----------
3
2
5
Tx
Rx
Gnd
STEREO
PLUG
(3.5ø)
LAN Cable
•
Pin assignment
1 2 3 4 5 6 7 8
Pin No Standard Color Signal
1 White and orange TX+
2 Orange TX-
3 White and green RX+
4 Blue NC
5 White and blue NC
6 Green RX-
7 White and brown NC
8 Brown NC
