ENGLISH
64
Playing back a tape
✤ To watch a tape you recorded.
✤ Playback function works in PLAYER mode only.
✤ View a tape using the LCD when a TV is not available.
✤ To play a tape back, the TV must feature a compatible color system.
✤ We recommend that you use the AC Power Adapter as the power source of the camcorder.

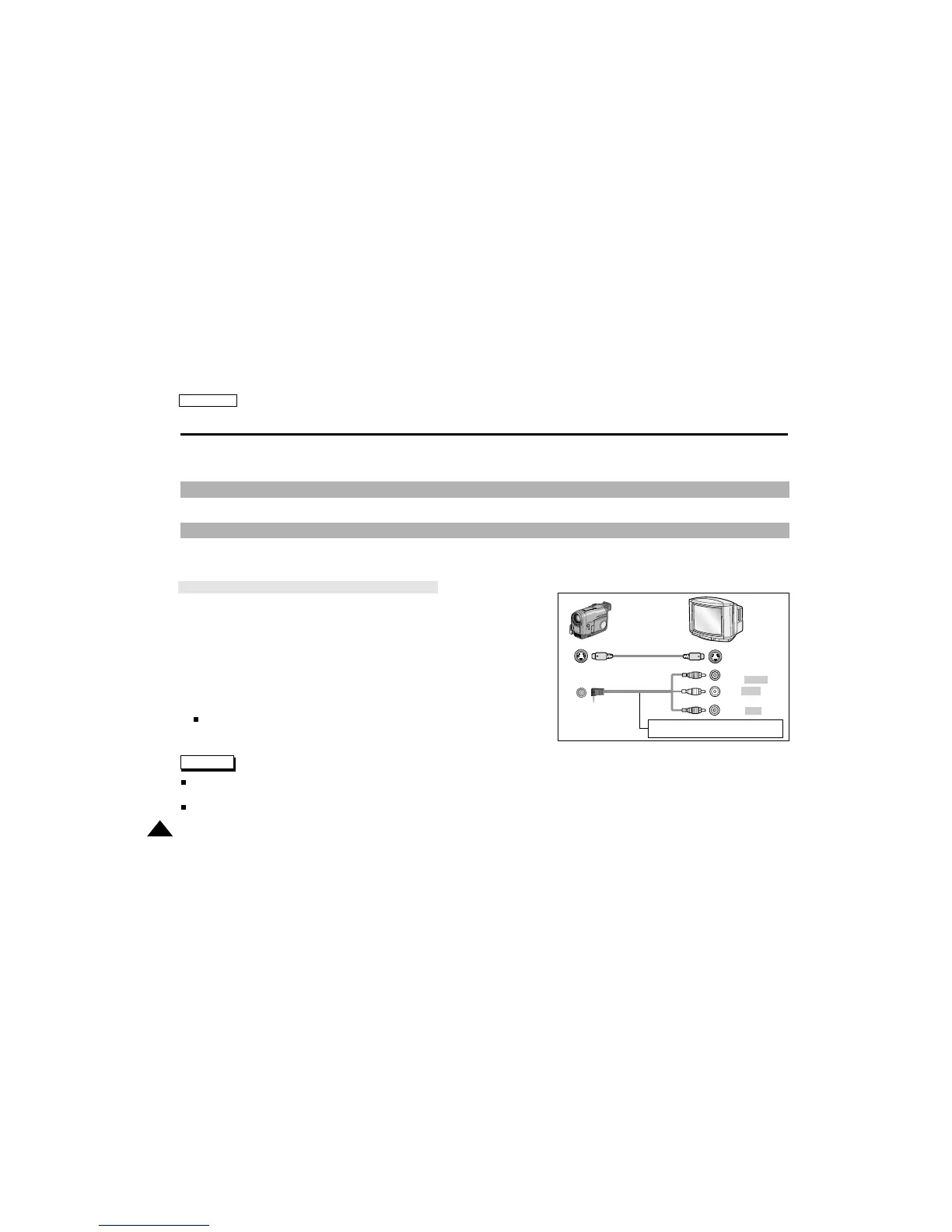

Connecting to a TV with Audio and Video input jacks
1. Connect the camcorder and TV with the Audio/Video cable.
■
The yellow plug : Video
■
The white plug : Audio(L)
■
The red plug : Audio(R) – STEREO only
– If you connect to a mono TV or VCR, connect the yellow plug (Video) to
the video input and the white plug (Audio L) to audio input.
2. Set the power switch of camcorder to PLAYER.
3. Turn on a TV and set the TV/VIDEO selector on the TV to VIDEO.
Refer to your TV or VCR owner's manual.
4. Playback a tape.
Notes
You can use the S-VIDEO cable to obtain better quality pictures if you have a
S-VIDEO connector on your TV.
Even if you use an S-video cable, you must still connect an audio cable.
Camcorder TV
S-VIDEO
OUT
A/V OUT
When you have input terminal for video
and audio on the television set
S-video input
Audio input
(left)-White
(right)-Red
Video
input-Yellow
To watch with the LCD
To watch with a TV monitor
