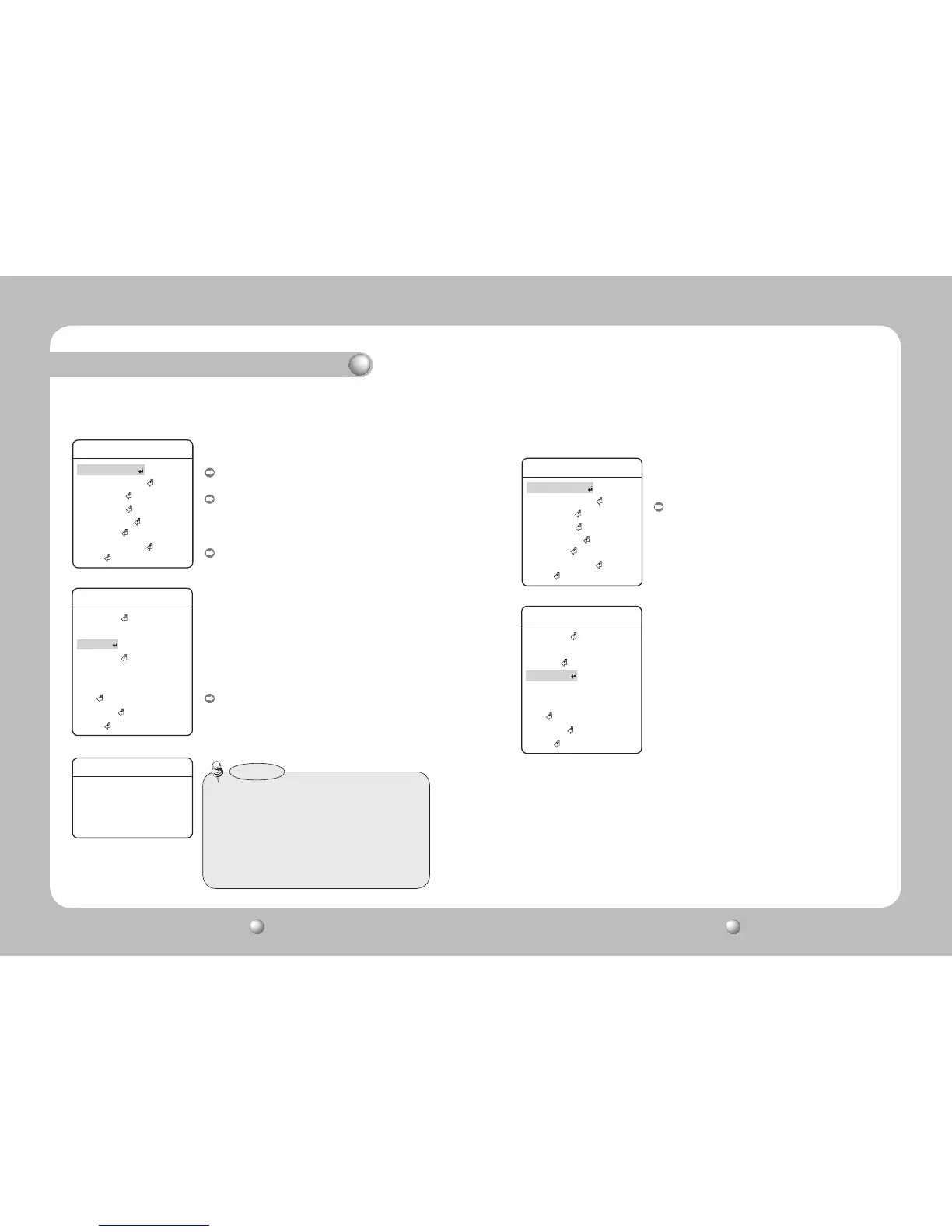

Functional Description
➡
Exposure
Brightness 050
Iris AUTO
Shutter ---
Sens-Up AUTO
3. Exposure
 ▶
Main Menu/Camera Setting/Exposure
The Exposure settings are to control the camera’s exposure
meter.
Brightness : Adjusts the screen brightness.
(Over 50: Brighter, Under 50: Darker)
Iris :
- AUTO : Automatically adjusts the exposure meter.
- MANUAL : Enables manual adjustment of the exposure
meter. (Over 50: Brighter, Under 50: Darker)
Shutter : Controls the camera’s electronic shutter.
- --- : The shutter speed is fixed at 1/60 for NTSC and 1/50
for PAL. Operates when Iris is on the Auto Mode.
- ESC : Adjusts the shutter speed automatically according
to the screen brightness. Operates when Iris is on
the Manual Mode.
- A.FLK : Select this setting when you experience picture
flickering. Flickering can happen when artificial
lighting frequencies clash with camera frame rates.
- MANUAL : Enables manual adjustment of the shutter
speed.
Sens-Up :
- AUTO : Automatically detects light levels and maintains a
clear picture at night or under low-light conditions.
- SENS-UP LIMIT : Adjusts to the maximum-powered zoom
per frame.
•Foroptimal performanceoftheA.FLKmode,avoid
using the mode in conjunction with Backlight.
•WhiletheInternal Syncmodeisin effect,setting the
shutter to '---' and facing the camera directly to a
bright light source may cause poor camera
performance.
•Sens-UpisdisabledwhentheshutterisinManualor
A.FLKmode.
Notes
Camera Setting
Zoom/Focus
White Balance ATW
Exposure
Back Light OFF
AGC HIGH
SSNR MEDIUM
SSDR
Day/Night
Others
➡
4. Backlight
4.1 Backlight Mode Settings
 ▶
Main Menu/Camera Setting/Back Light
Unlike other cameras, Samsung Techwin’s unique W-V
DSP chip gives you a clear image of the subject even
with bright backlight.
Back Light Mode
:
- OFF : Disables the Backlight mode.
- HLC : Activates the Highlight Compensation (HLC)
mode.
- BLC : Activates a user defined backlight compensation
mode.
Camera Setting
Zoom/Focus
White Balance ATW
Exposure
Back Light OFF
AGC HIGH
SSNR MEDIUM
SSDR
Day/Night
Others
➡
Main Menu
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Password Setting
Status
Main Menu
Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Password Setting
Status
