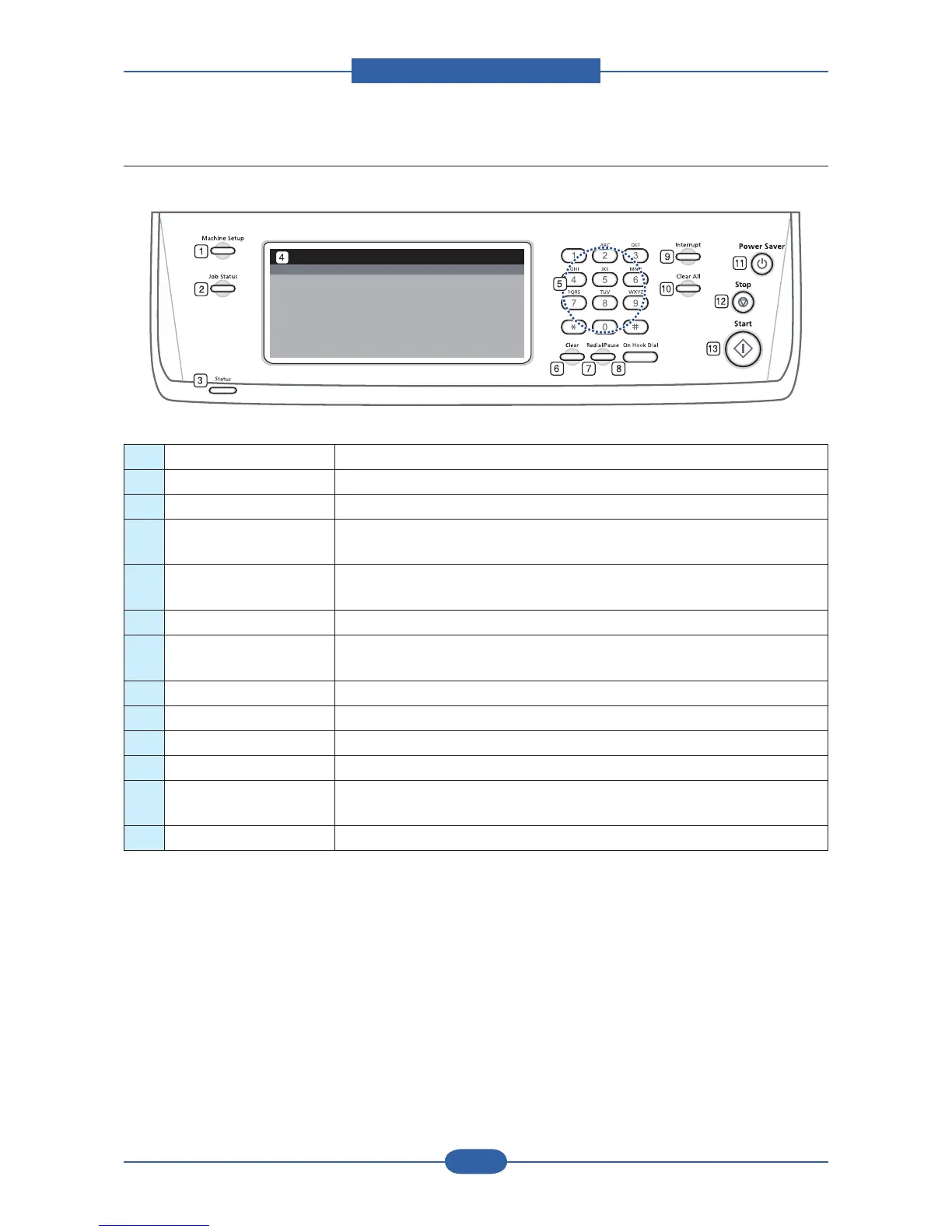

4.1.4 Control Panel Overview
1 Machine Setup Leads you to the machine setup and advanced settings.
2 Job Status Shows the jobs currently running, queued jobs or completed jobs.
3 Status Shows the status of your machine.
4 Display screen Displays the current machine status and prompts during an operation. You
can set menus easily using the touch screen.
5 number keypad Dials fax number, and enters the number value for document copies or
other options.
6 Clear Deletes characters in the edit area.
7 Redial/Pause In standby mode, redials the last number, or in edit mode, inserts a pause
into a fax number.
8 On Hook Dial Engages the telephone line.
9 Interrupt Stops a job in process to do an urgent copy job.
10 Clear All Reverts the current settings to the default values.
11 Power Saver Sends the machine into the power saver mode.
12 Stop Stops an operation at any time. The pop up window appears on the screen
showing the current job that the user can stop or resume.
13 Start Starts a job.

Samsung SCX-6545N Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Speed (Black)	45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Copy Speed (Black)	45 cpm
Max Copy Resolution (B&W)	1200 x 1200 dpi
Zoom Range	25% - 400%
Scan Resolution	600 x 600 dpi
Fax Modem Speed	33.6 Kbps
Duplex Printing	Yes
Scanner Type	Flatbed
Operating System Compatibility	Windows, Mac, Linux
Memory	512 MB
Interface	Ethernet, USB
Display	LCD
