18_ connecting with other device
The following fi gures are based on Model SRD-1652D.

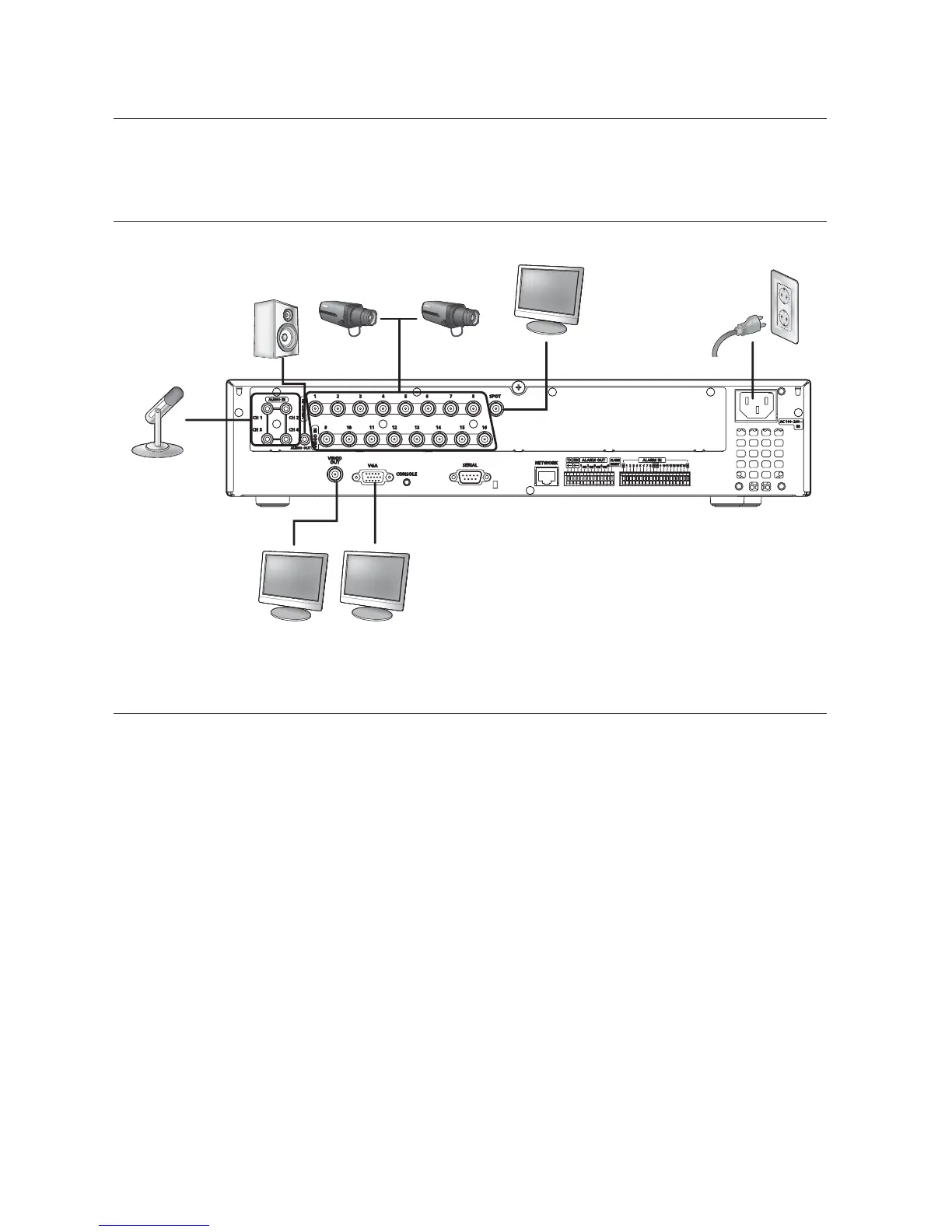

CONNECTING THE VIDEO, AUDIO, AND MONITOR
CONNECTING THE USB
By factory default, a USB port is provided for external connection.
You can connect a USB HDD, USB CD/DVD player, USB memory or mouse to the USB port.
If a USB HDD is connected to the system, recognition and settings are available in “Menu > Setting the Device >
Storage Device”. (Page
46)
This product supports hot-plugging, which connects/removes the USB device during the system operation.
If you use the USB device for Backup purposes, format it with FAT32 on PC if it is not formatted on the DVR.
M
1.
2.
3.
4.
J
connecting with other device
VIDEO IN
AUDIO IN
SPOT
AC 100-240V~IN
VIDEO OUT
(VGA)
VIDEO OUT
(composite)
AUDIO OUT VIDEO IN
