22_ connecting with other device
connecting with other device
SRD-1656D/1676D

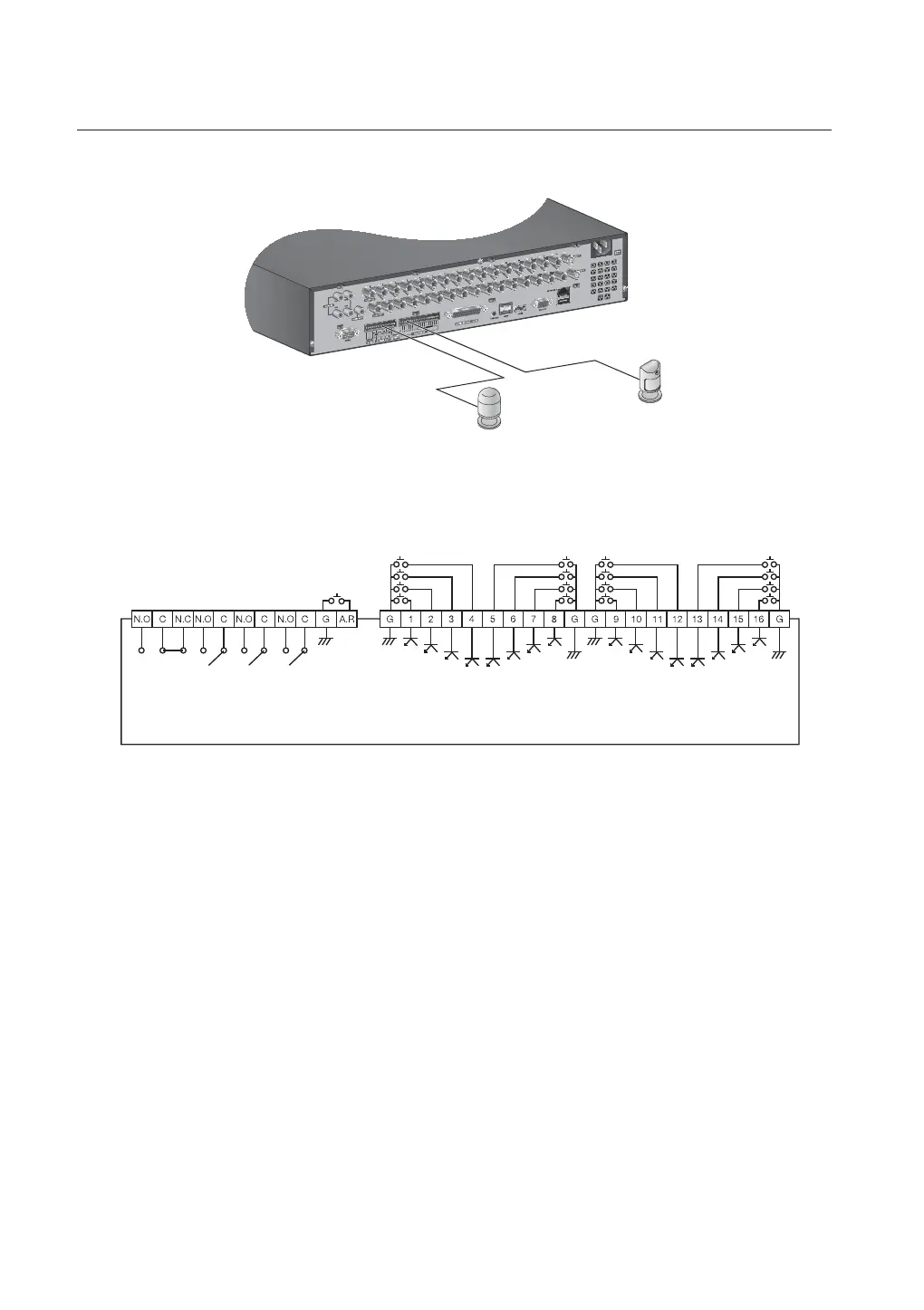

• ALARM IN 1 ~ 16 : Alarm Input Port
• ALARM RESET : On receiving an Alarm Reset signal, the system cancels the current Alarm Input and
resumes sensing.
• ALARM OUT 1 ~ 4 : Alarm Output Port
ALARM OUT
(30VDC 2A,
125VAC 0.5A MAX)
ALARM IN
(5mA sink)
ALARM IN
(5mA sink)
USB
Sensors
Alarm
