Samsung SRD-876D - PART NAMES AND FUNCTIONS (REAR)

12_ overview
overview

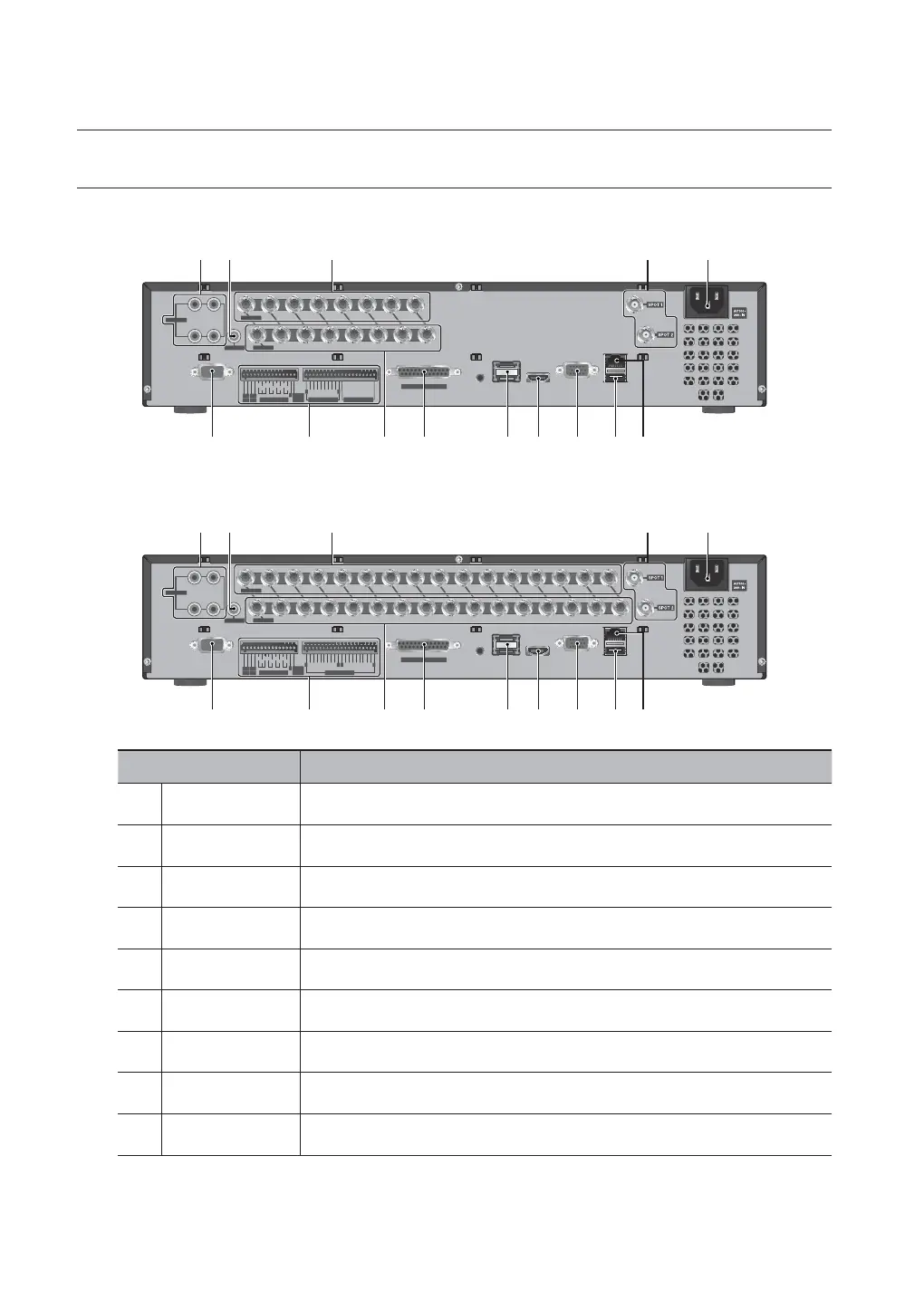

PART NAMES AND FUNCTIONS (REAR)
SRD-876D
SRD-1656D/1676D
Part Names Functions

AUDIO IN Audio input signal port (RCA jack) and port for optional audio extension cable.
b
AUDIO OUT Audio Signal Output Port (RCA jack).
c
VIDEO IN Video Signal Input Port (BNC type connector).

SPOT1/2
BNC type of output port for the Spot signal.

Power Power connection port.

NETWORK NETWORK connector port.

USB Connects the USB devices.

VGA OUT Composite Video Signal Output Port (VGA type connector).

HDMI HDMI connector port.
1
NO
COM COM COM COM
NC NO NO NO
234
ALARM OUT
G
+-
TX
+-
RX
ALARM
RESET
CH1
CH3
CH2
CH4
CONSOLE HDMIeSATA VGA OUT USB
SERIAL
1234567 8
LOOP OUT
12 345678
ALARM IN NO CONNECTION
G G
NETWORK
AUDIO IN CH5 ~ CH8
VIDEO IN
AUDIO OUT
AUDIO IN
b c 
 m  
 
1
NO
COM COM COM COM
NC NO NO NO
234
ALARM OUT
G
+-
TX
+-
RX
ALARM
RESET
CONSOLE HDMIeSATA VGA OUT USB
SERIAL
16151413121110912345678
12 345678 9 10 11 12 13 14 15 16
ALARM IN
G G G G
NETWORK
AUDIO IN CH5 ~ CH16
CH1
CH3
CH2
CH4
VIDEO IN
AUDIO IN
LOOP OUTAUDIO OUT
b c 
 m  
 
