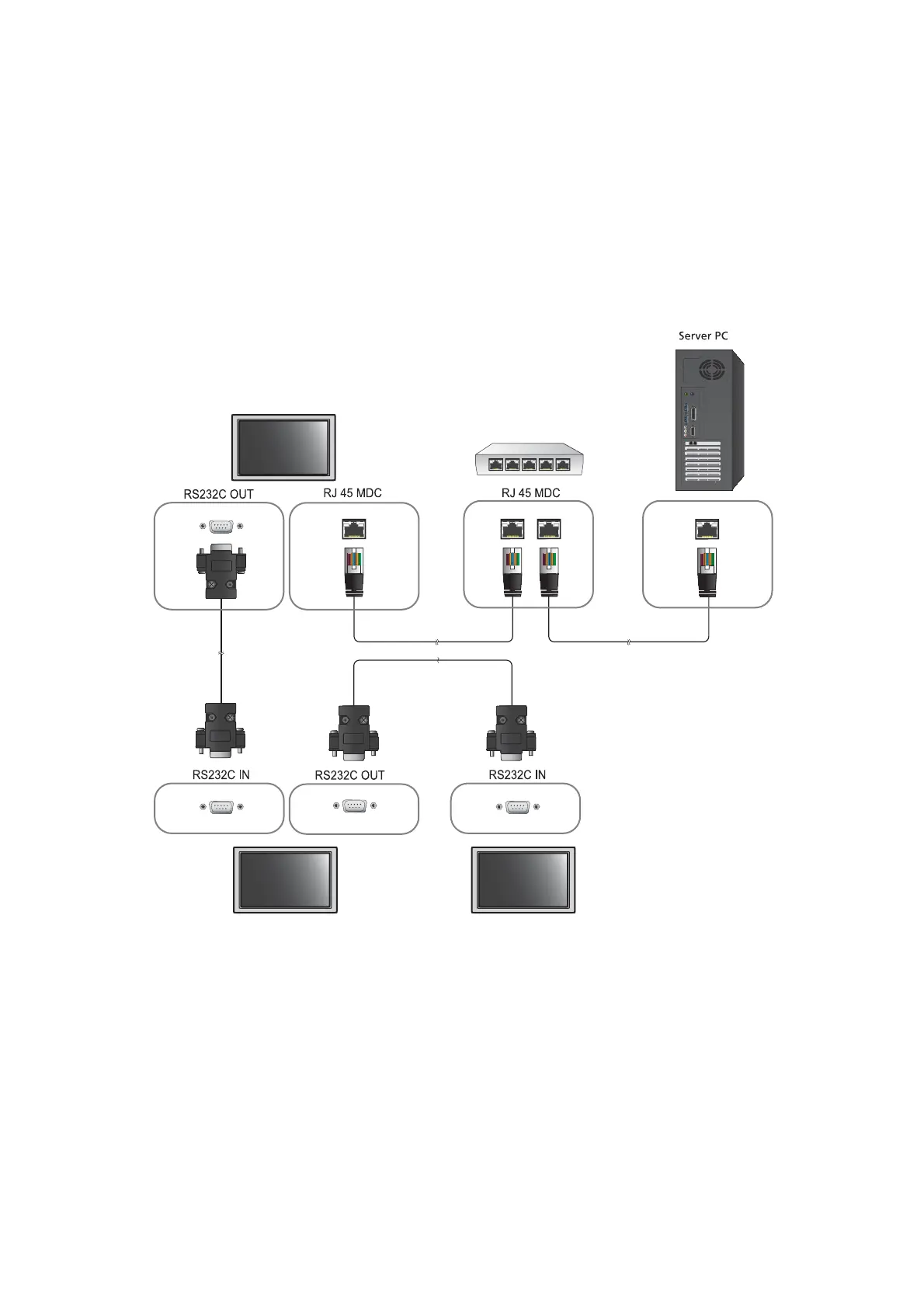

Using MDC via Ethernet

Enter the IP for the primary display device and connect the device to the PC. One display device can

connect to another using an RS-232C serial cable.
