Troubleshooting
105
1) Checklist :
(1) Is input voltage normal?
(2) Is the UP/DOWN louver motor properly connected with the connector (CN61)?
2) Troubleshooting procedure
(1) Is the set temperature of Remote Control lower than room temperature in Cool mode?
(2) Is the Indoor PCB properly connected with the CN71 connector?
Remove power cord and plug in again in approx. 5 seconds.
Is STD lamp blinking?
Does operation start when swing button of the remote control
unit pushed?
Voltage at pin #1-#4 of micom (ICO4) change?(Squarewave)
Volatge at pin #13 ~ #16 of IC06 (KID65003)
change?(Squarewave)
UP/DOWN louver motor is faulty.
Driver IC06 (KID65003) is faulty.
Micom (IC04) is faulty.
Normal
Check as in the procedure
"No Power parts".
After training on, the Cooling operation should
start in five minutes.
Is the munber #18 of Micom (IC04) DC 5.0 V?
Is the munber checking #10 of IC06 (KID65003) LOW?
RYOI or Cable Check.
NO
YES
NO
NO
YES
Normal
Abnormal Micom
Abnormal IC06
PCB should be replaced.

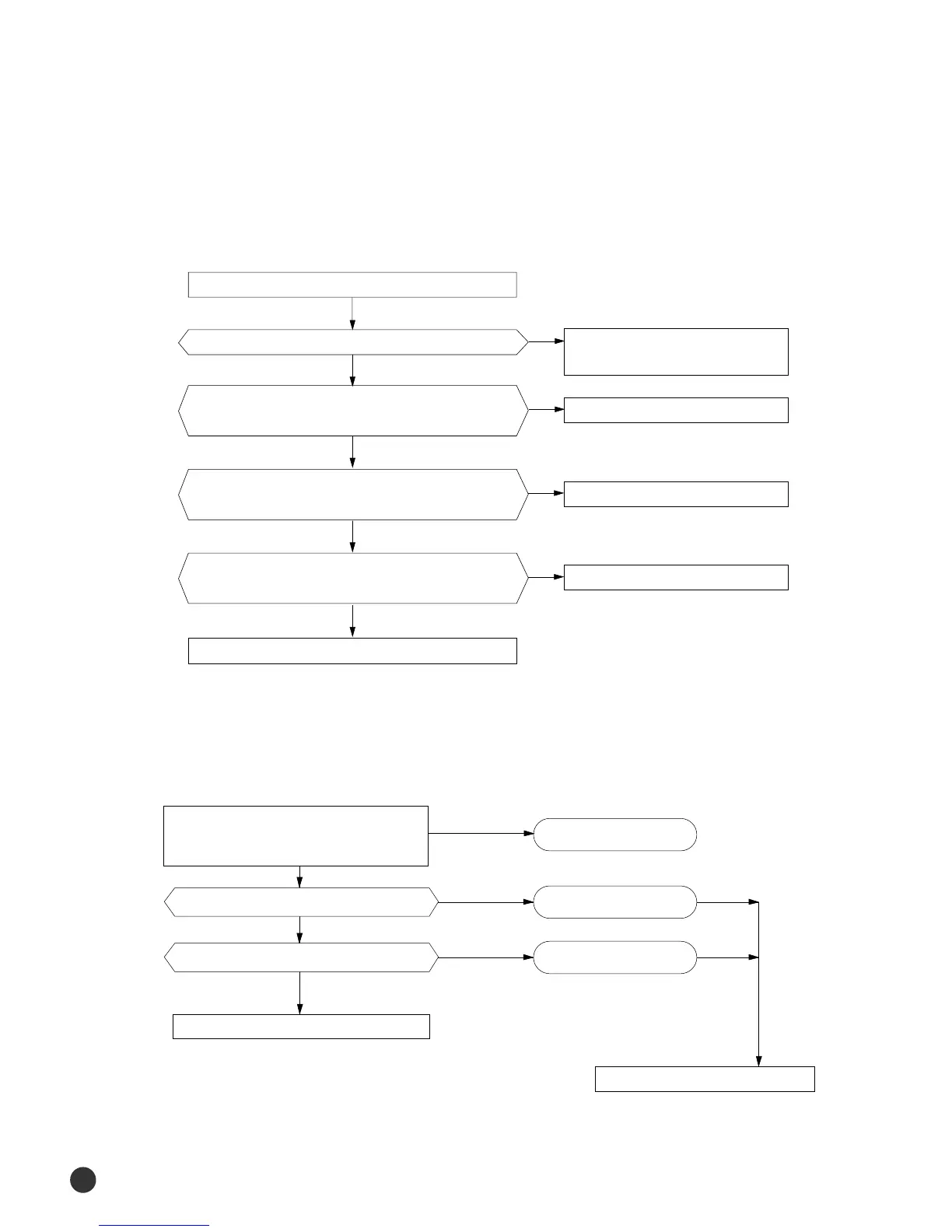

◆ When the UP/DOWN Louver Moter Does Not Operate. (Initial Diagnosis)
◆ In the mode, When there is no cool air current. Check this first;
