Samsung WALL MOUNTED TYPE - Fixing the Installation Plate

Installation
40

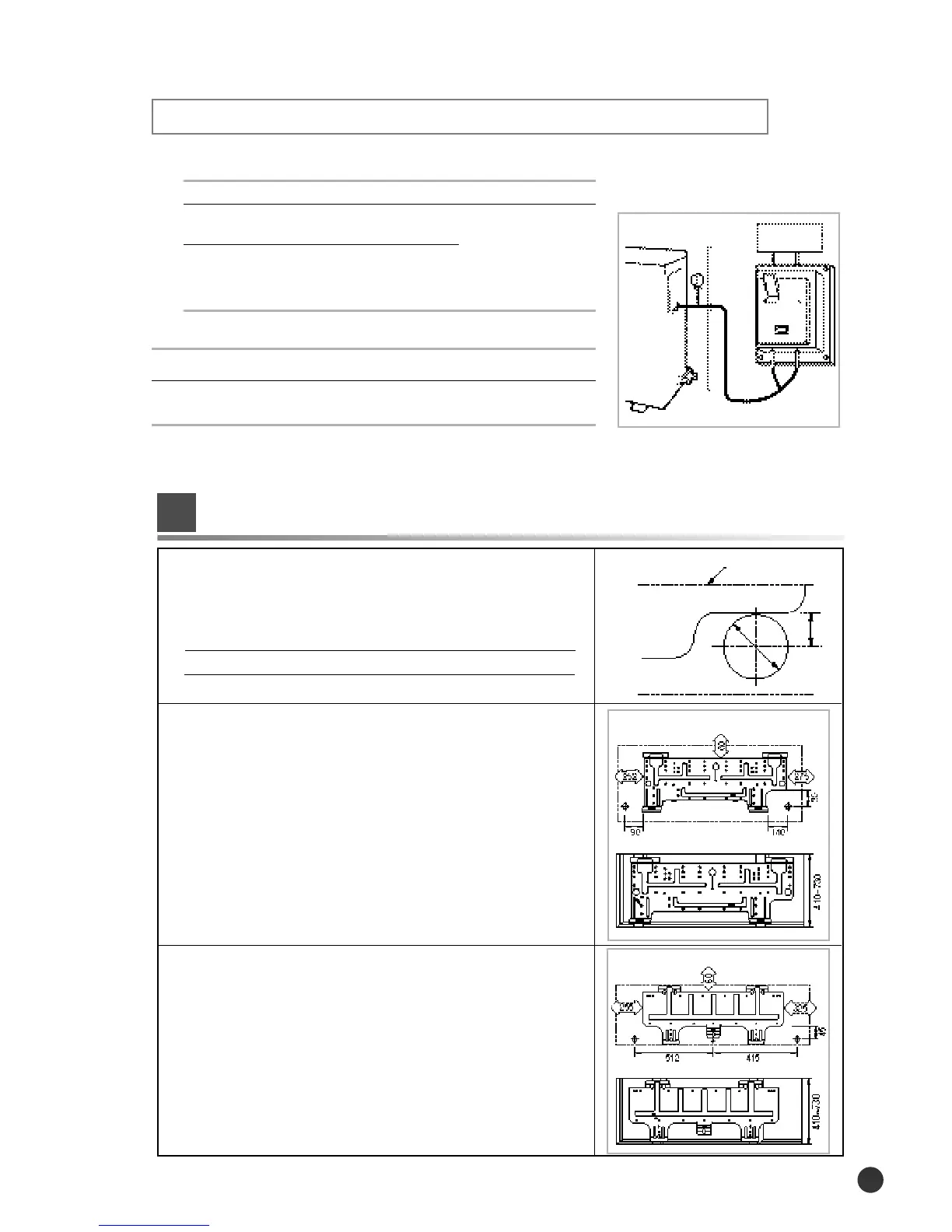

Fixing the Installation Plate
Installation plate
45
65ø
1. Determine the position of the pipe and drain hose
hole refering to the right figure and drill the hole with an
inner diameter of 65mm so that it slants slightly downwards.
2. If you are fixing the indoor unit to a… Then follow Steps…
Wall 3.
Window frame 4 to 6.
3. Fix the installation plate to the wall in a manner
appropriate to the weight of the indoor unit.
If you are mounting the plate on a concrete wall with anchor
bolts, anchor bolts must not be projected by more than
20mm.
4. Determine the position of the wooden uprights to
be attached to the window frame.
5. Attach the wooden upright to the window frame in
a manner appropriate to the weight of the indoor unit.
6. Using tapped screws, attach the installation plate to the
wooden upright, as illustrated in the last figure opposite.
1
◆ Installing a Breaker
(18K/24K Model)
You must install a breaker close to the indoor unit, to be used exclusively for the air conditioner.
The following electrical characteristics must be respected.
Model Power cable Assembly cable
US18
✴✴ 3 Wire power cable
SC18ZA1X (above 1.5mm
2
/area)
UST18
✴✴ 3 Wire power cable
UST24
✴✴ (above 2.5mm
2
/area)
SC18(24)TA1X
❇ Approyed according to IEC standard.
1 Connect the breaker to the main distribution board.
2 When installing the outdoor unit, connect the power cable from the outdoor
unit to the breaker.
➢ The indoor unit is powered via the outdoor unit; for further details
on how to connect the indoor unit assembly cable.
(Unit : mm)
7K/ 9K/ 12K
(Unit : mm)
Outdoor unit
Distribution
board
(Unit : mm)
(Unit : mm)
18K/ 24K
5(Cooling Only) or
7(Heat Pump) wire
assembly Cable
(above 0.75 mm
2
/area)
18K
24K
