Installation
39

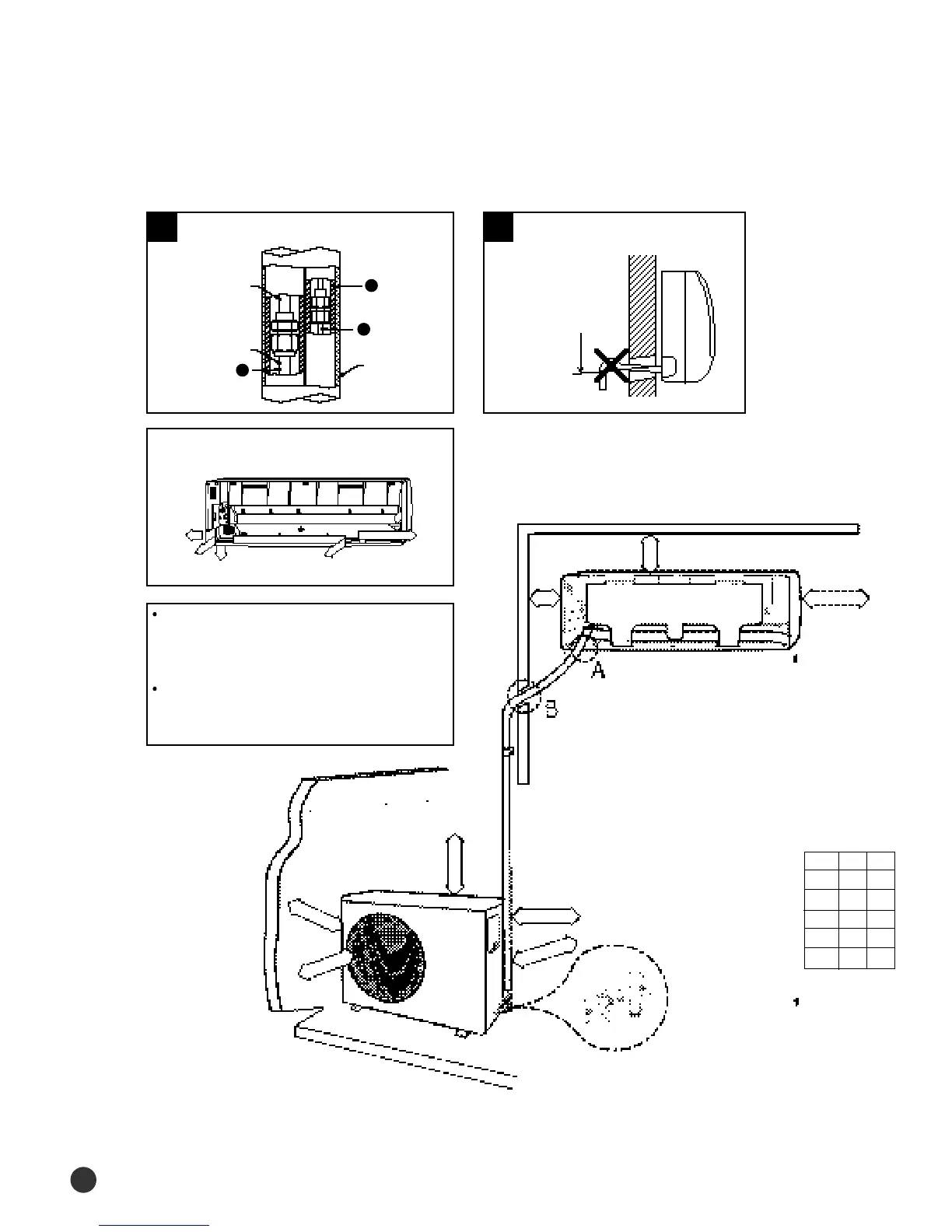

Installation Diagram of Indoor
Unit and Outdoor Unit
2
A Indoor unit gas leak test check point
Tape vinyl
Piping
Indoor unit
B Drain hose installation
Cut the piping hole
sloped slightly
MODEL L H
7K 15 7
9K 15 7
12K 15 7
18K 15 8
24K 20 8
Piping may be laid to the rear, left,
right or down.
Wrap the refrigerant pipes and the drain
hose up in the abgorbent pad and the
vinyl thape.
Triply wind the pipes and hose to the
end of the indoor unit with the absorbent
pad (make intervals of 20mm)
“L” metres maximum.
* The designs of the unit and Connectionvalue are subject to Change according to the model.
Right
Rear
Down
50mm or more
600mm minimum
600mm minimum
100mm minimum
350mm minimum
100mm minimum
125mm
or more
125mm or more
Rear
Left
3
1
2
“H” metres maximum.
