Installation

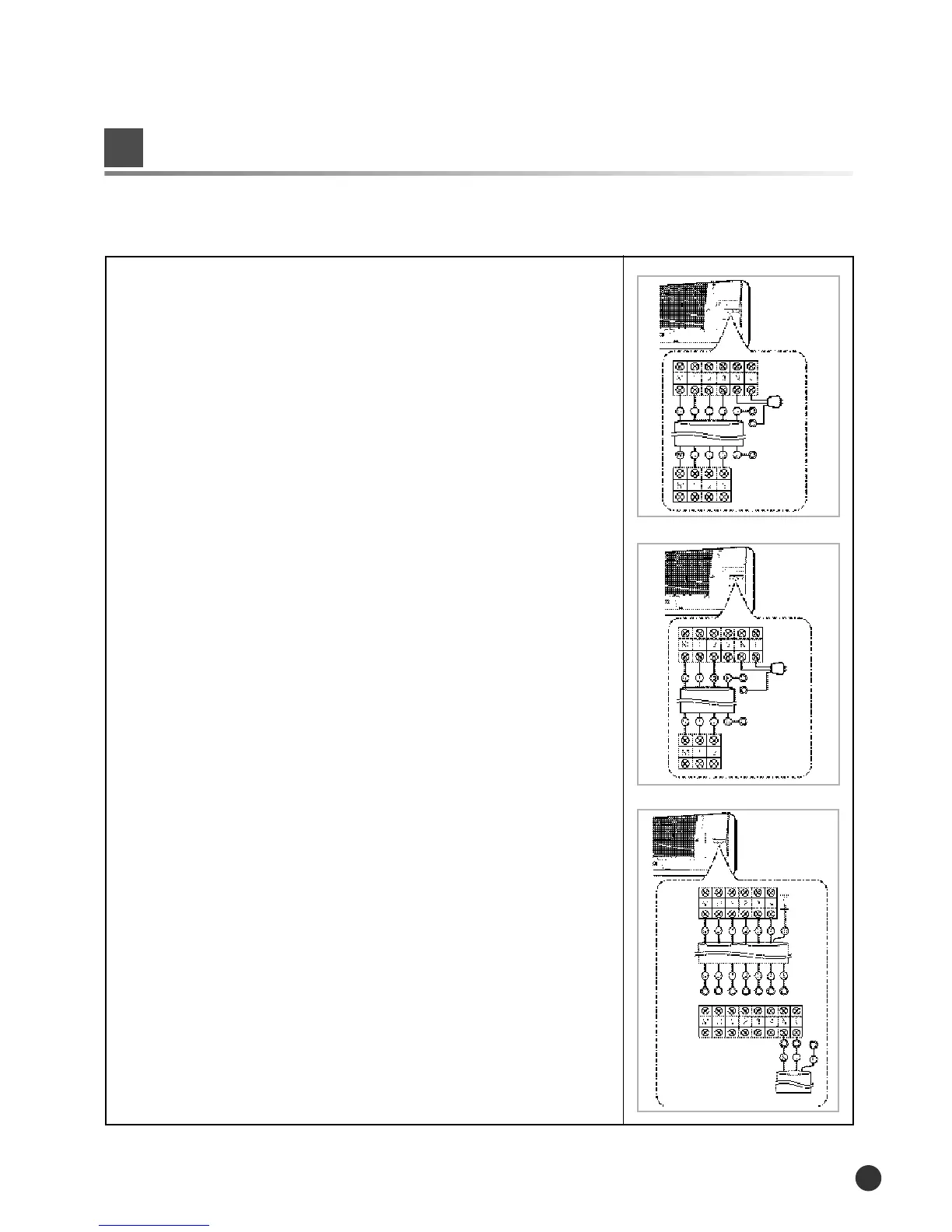

Connecting the Assembly Cable(Heat Pump)
4
The outdoor unit is powered from the indoor unit via the assembly cable. (7K/9K/12K)
The indoor unit is powered from the outdoor unit via the assembly cable. (18K/24K) If the outdoor unit
is more than five metres away from the indoor unit, the cable must first be extended to a maximum.
1 Extend the assembly cable if necessary.
2 Open the front grille by pulling on the tabs on the lower right and
left sides of the indoor unit.
3 Remove the screw securing the connector cover.
4 Pass the assembly cable through the rear of the indoor unit and
connect the assembly cable to terminals
➢ Each wire is labelled with the corresponding terminal number.
5 Pass the other end of the cable through the 65 mm hole in the
wall.
6 Replace the connector cover, carefully tightening the screw.
7 Close the front grille.
8 For further details on how to plug the other end of the assembly
cable into the outdoor unit.
Indoor unit
Outdoor unit
Circuit Breaker
(Main Power)
Indoor unit
Outdoor unit
Earth
terminal
Earth
terminal
Indoor unit
Outdoor unit
Earth
terminal
Earth
terminal
7K/ 9K/ 12K
9K/ 12K(Inverter)
18K/ 24K
