Installation
45

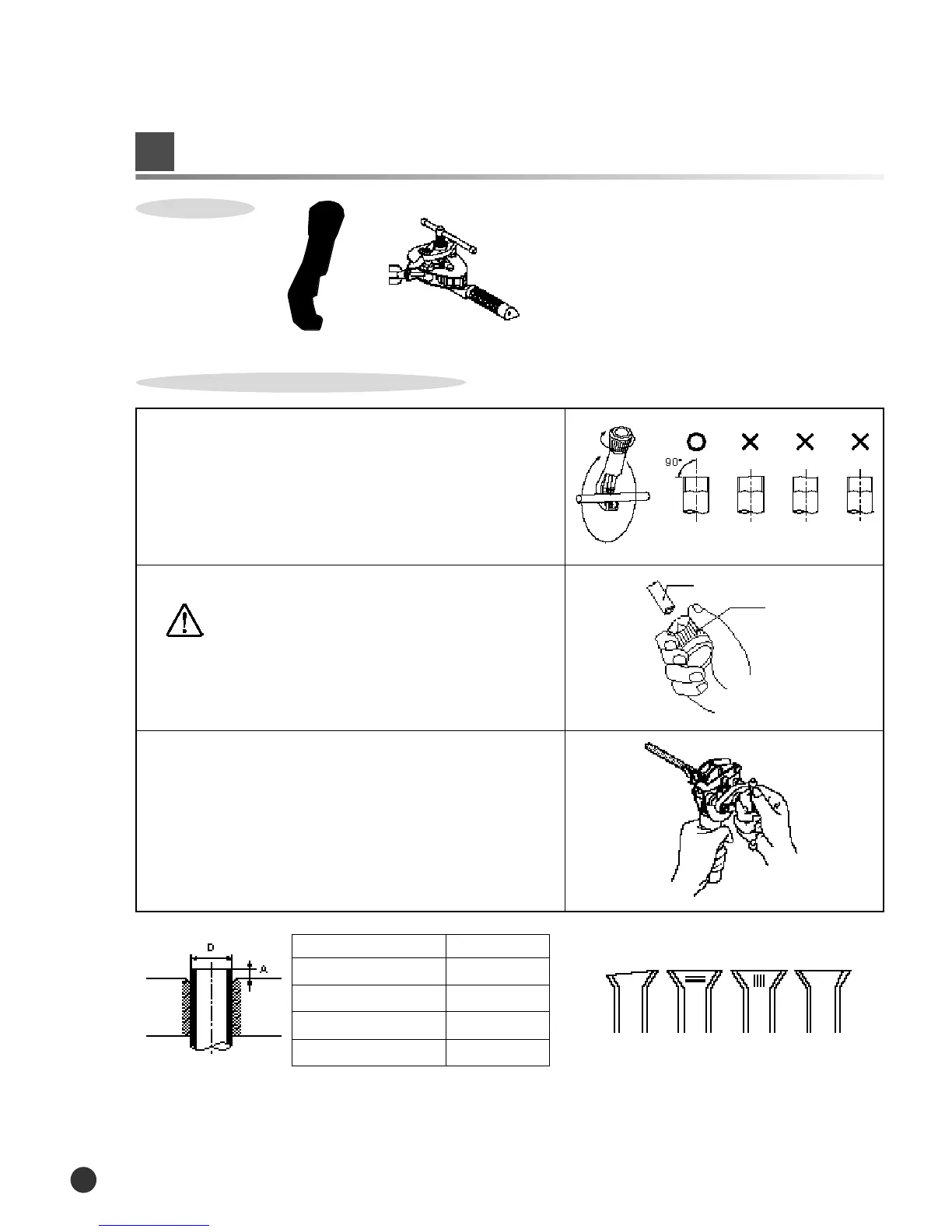

Flare Modification
7
1. Cut the pipe using a pipe cutter.
2. Remove burrs at the tip of the pipe cut.
Burrs not removed may result in
leakage of gas.
Caution
3. Insert a flare nut into the pipe and modify flare.
Outer diameter A(mm)
ø6.35mm 1.3
ø9.52mm 1.8
ø12.7mm 2.0
ø15.8mm 2.2
Oblique
Roughness
Burr
Pipe
Reamer
* Unproper flaring
Inclined Surface
damaged
Cracked Uneven
thickness
TOOLS USED
FLARE MODIFICATION PROCEDURE
