Samwontech TEMP2000 Series User Manual

SAMWONTECH
2nd Edition of TEMP2000_Series IM : July. 16. 2010 Page 6 / 87

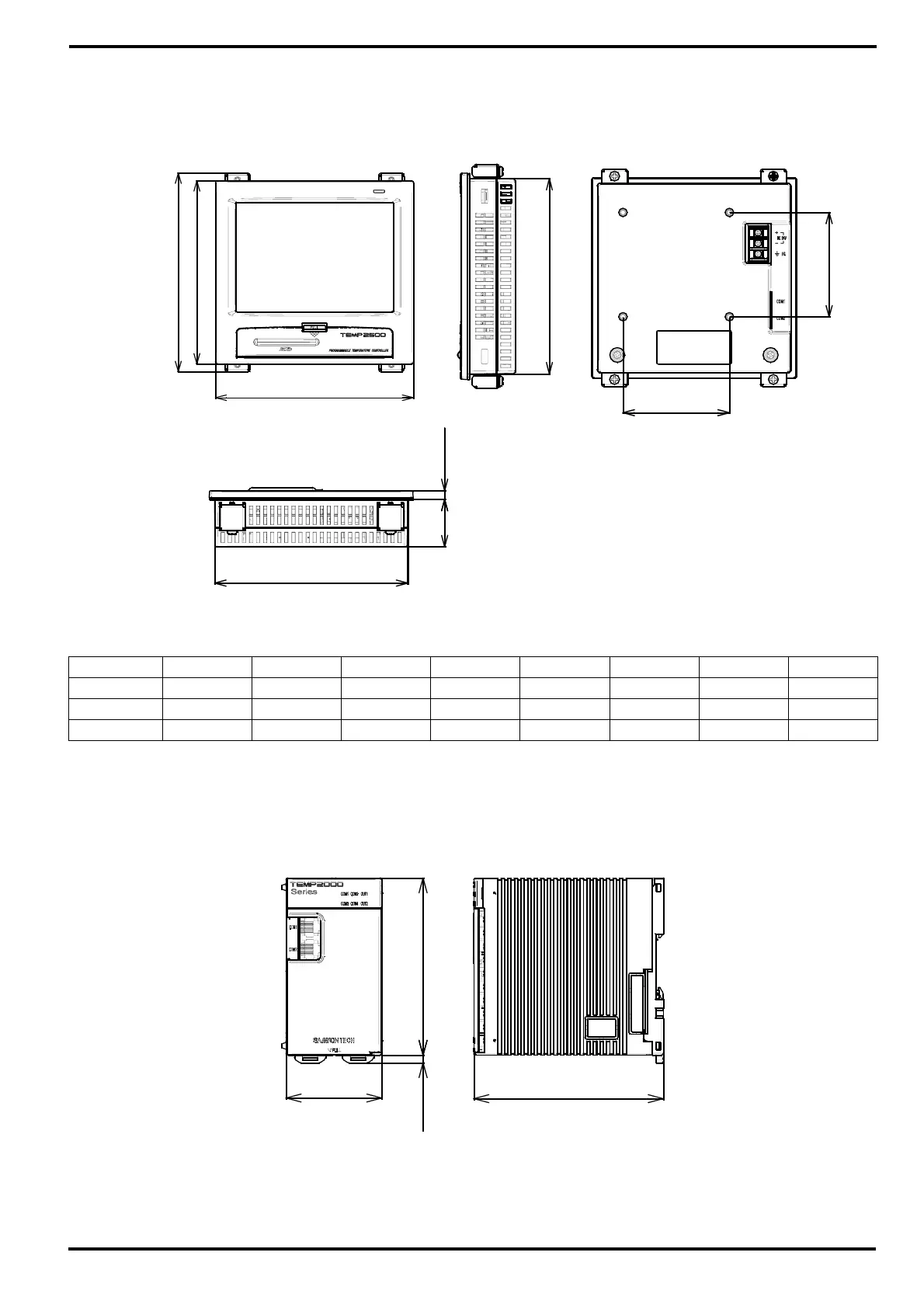

1.2.2 External Dimension (Unit : mm)
1.2.2.1 External Dimension of Display Unit according to each Model
Unit : mm
Model A B C D E F G H
TEMP2300 112 105 6.5 33.5 97.5 104.5 117 75
TEMP2500 144 144 6.5 33.5 136.5 136.5 156 75
TEMP2700 203 180 6.8 38.2 172.5 195.5 192 75
1.2.2.2 External Dimension of Control Unit
E
H
H
D
C
F
B
G
A
51
964.2
100.8

Samwontech TEMP2000 Series Specifications

General

Brand	Samwontech
Model	TEMP2000 Series
Category	Controller
Language	English
