2nd Edition of TEMP2000_Series IM : July. 16. 2010 Page 7 / 87

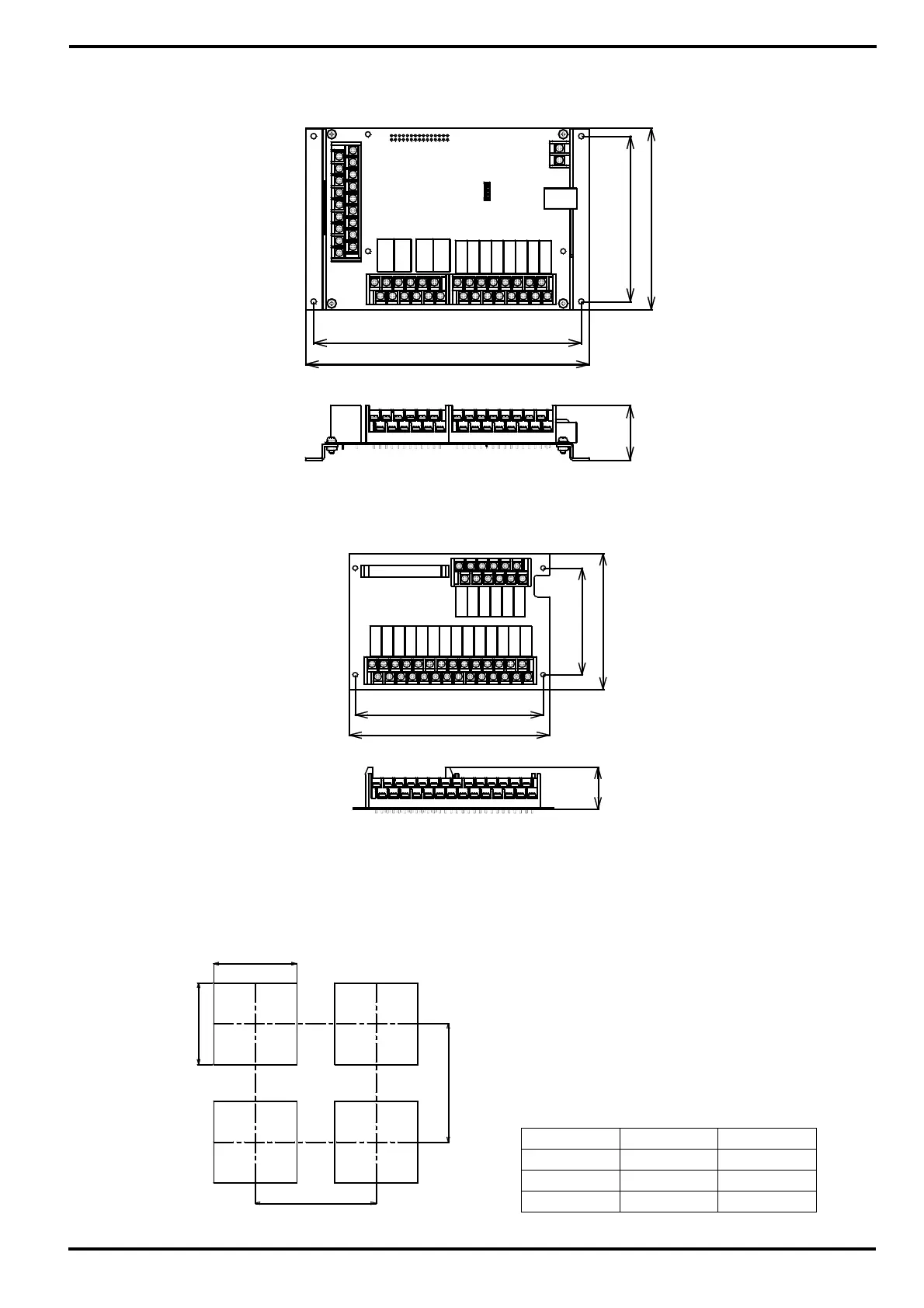

1.2.2.3 External Dimension of I/O1 BOARD

1.2.2.4 External Dimension of I/O2 BOARD

1.2.3 PANEL CUTOUTS

▶ Normal Panel Cutting

※ Panel Cutouts Unit : mm

Model A B

TEMP2300 105 98

TEMP2500 137 137

TEMP2700 196 173

132

124

34.7

104.6

115

180

170

+1.0

250(MIN)
