Samyung F700 - Connections; Power;Data Cable

Installation and Operation Manual
63
[Sonar]
Pin No.
Detail
1
SONAR +
2
SONAR / TEMP. , GND
3
SPEED / + POWER SUPPLY
4
TEMP.
5
SONAR -
6
SONAR GND
[Radio]
Pin No.
Detail
1
+ 12 V DC
2
GND (COMMON)
3
NMEA 2000 H
4
NMEA 2000 L
5
NMEA 0183-1 OUTPUT
6
NMEA 0183-1 INPUT
7
NMEA 0183-2 OUTPUT
8
NMEA 0183-2 INPUT
5-2 Connections
The GPS chart plotter has connectors that are used to connect to the power supply, GPS
antenna and to NMEA devices such as VHF‟s AIS receivers, digital instruments and autopilots.
5-3 Power/data cable
Basic power

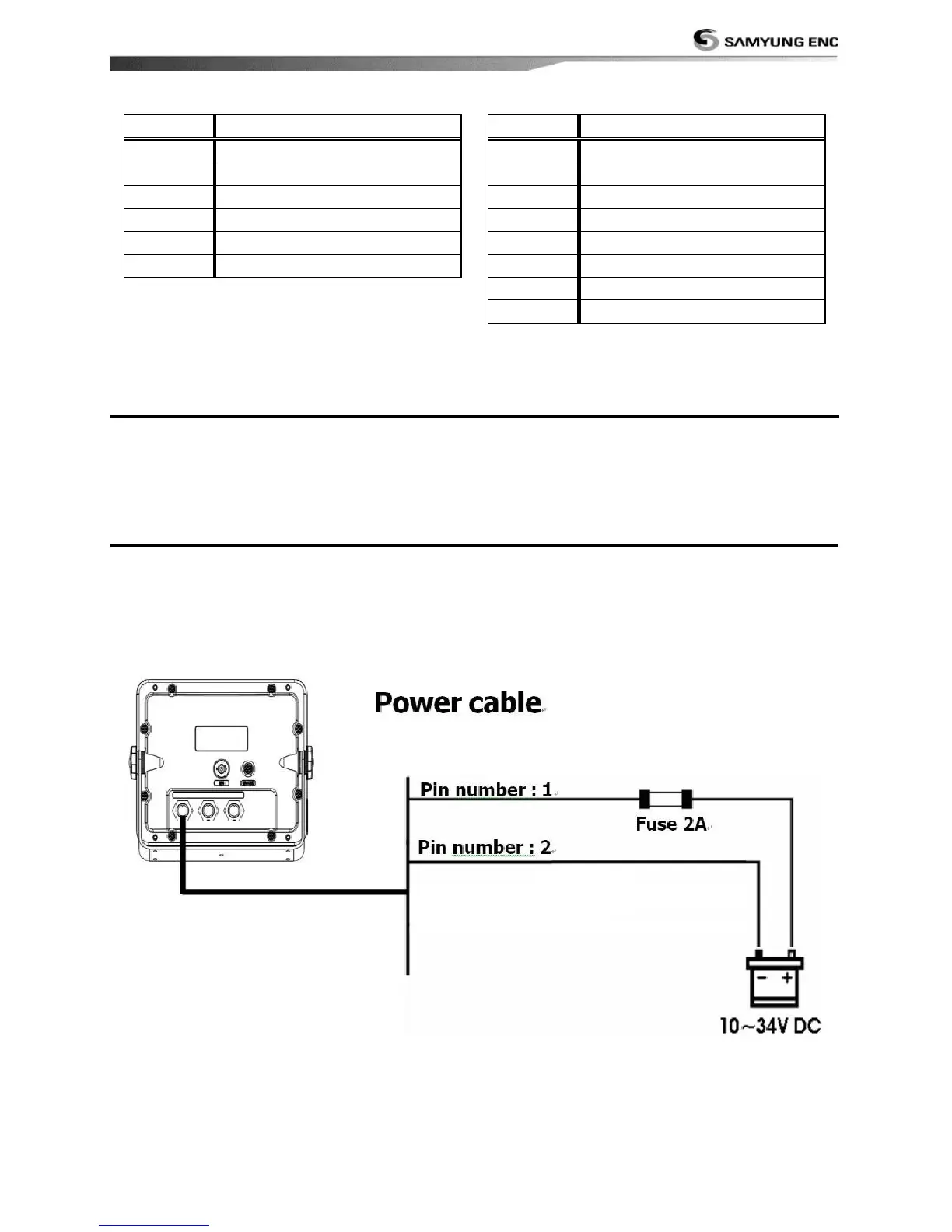

• Wire the display unit for basic power as below picture.
