Samyung F700 - Nmea 0183

Installation and Operation Manual
65
5-5 NMEA 0183
The GPS chart plotter can be connected to
external devices with NMEA0183 and display
information such as followings.
• DSC VHF Radio
• GPS antenna(NMEA 0183)
• Navtex
• AIS receiver
DSC VHF radio
Fit and set up the optional DSC VHF radio as
above Pictures: NMEA 0183(1) IN and NMEA
0183(2) IN.
Other NMEA instruments
NMEA is an industry standard for
interconnecting instruments. The chart plotter
can be connected to other NMEA instruments.
Set up the optional NMEA instruments as
above pictures.
• The chart plotter can receive and display
depth, paddlewheel boat speed and water
temperature from an optional compatible
instrument.
• The chart plotter can receive data from an
optional compatible GPS or GPS/DGPS
source.
• The chart plotter can send GPS position and
other navigation data to an autopilot or
other instrument. An autopilot requires
APB, APA and VTG sentences
For information on sending NMEA data to the
instrument, contact Samyung ENC.
During setup to send NMEA data to other
instruments, set NMEA out and specify the
NMEA data to send.

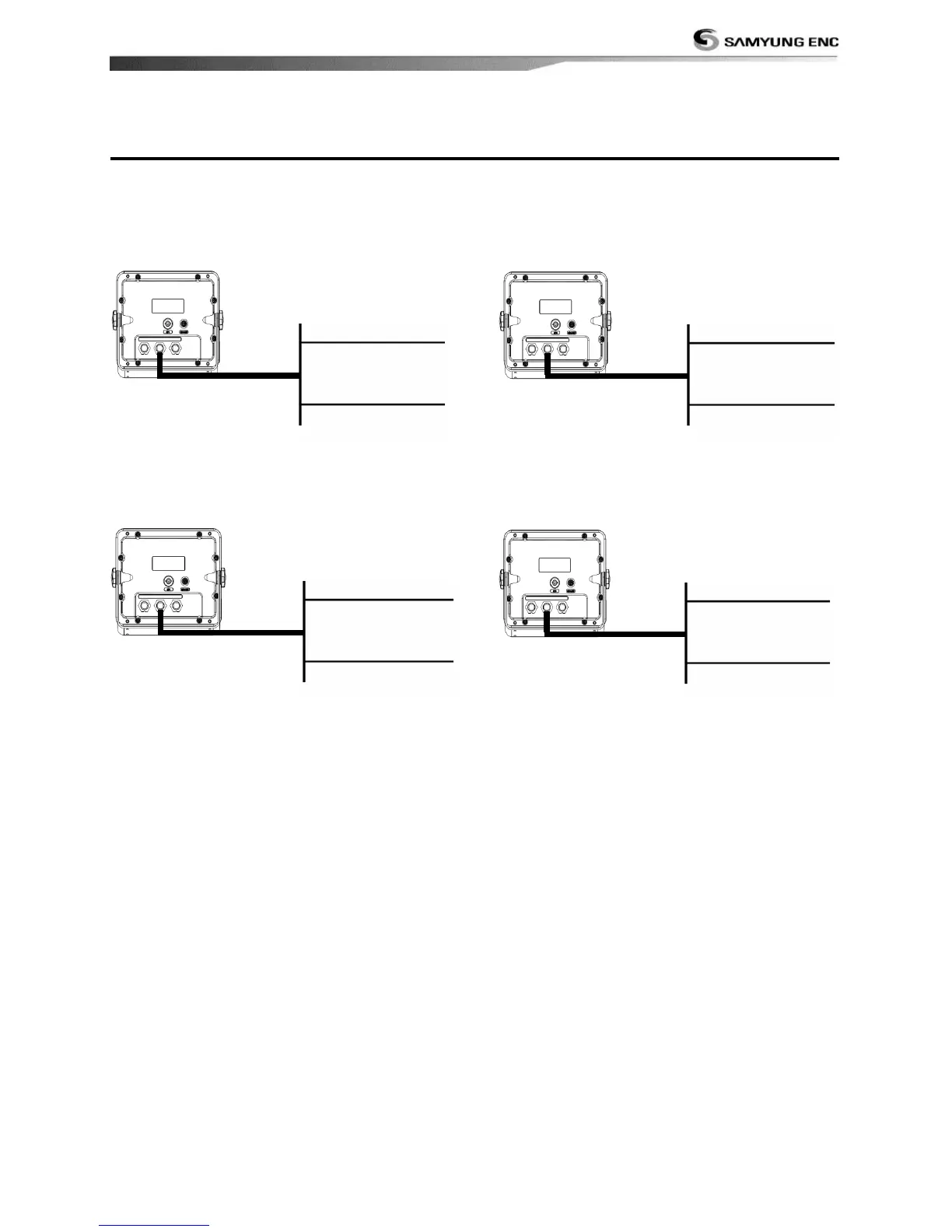

Data cable
Pin number : 2 -
Pin number : 5 +
Output (1) NMEA 0183
Data cable
Pin number : 2 -
Pin number : 6 +
Input (1) NMEA 0183
Data cable
Pin number : 2 -
Pin number : 8 +
Input (2) NMEA 0183
Data cable
Pin number : 2 -
Pin number : 7 +
Output (2) NMEA 0183
