GPS Communication Setup

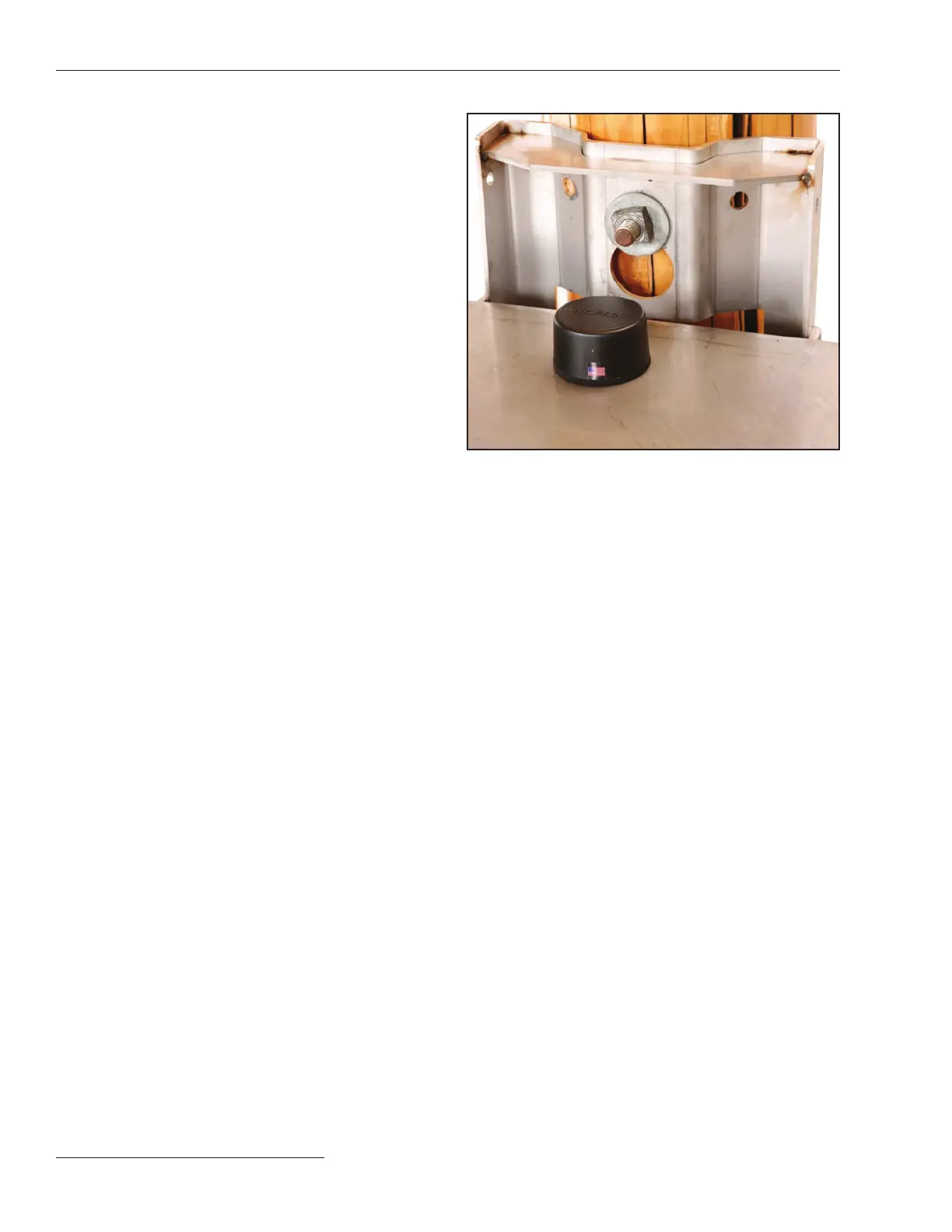

Figure 16. GPS antenna installed on the top of the IntelliRupter
fault interrupter base.
GPS Capabilities
A global positioning system (GPS) receiver installed
in the communication module provides precise time
synchronization. The system allows rapid analysis of event
records, simplifying the determination of a sequence of
events.
GPS Antenna
The factory-installed GPS antenna is located on the top of
the base as shown in Figure 16.
GPS Setup and Diagnostics
As discussed in S&C Instruction Sheet 766-530,
“IntelliRupter
®
PulseCloser
®
Fault Interrupter: Protection
and Communication Setup,” no setup procedure is
required for the GPS other than specifying how time is
displayed. GPS coordinate information will be displayed on
one screen. The screen for specifying how time is displayed
indicates the quality of the GPS signal. The GPS receiver
requires no maintenance.
