S&C IntelliRupter PulseCloser Instruction Sheet

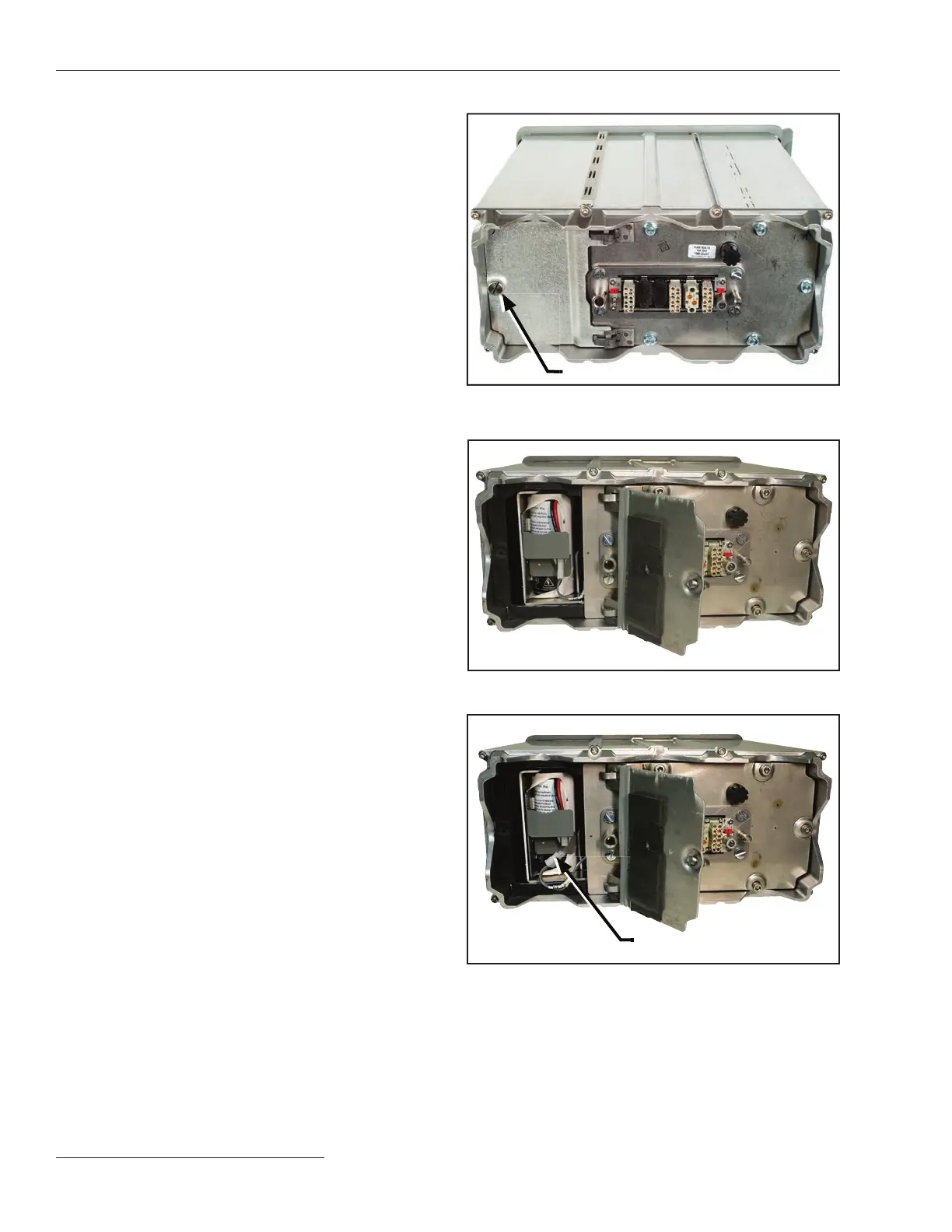

Figure 4. Loosening the battery compartment cover locking
screw.
Communication Module
Replacing the Battery
Perform the following procedure to replace the battery in
the communication module:
STEP 1. Loosen the battery compartment cover locking
screw using a ⅜ -inch nut driver. See Figure 4.
STEP 2. Open the battery compartment cover. See
Figure 5.
STEP 3. Push in the clip on the battery connector
and carefully disconnect the battery leads.
See Figure 6.
Figure 5. Opening the battery compartment cover.
Figure 6. Disconnecting the battery leads.
Battery connector
Locking screw
8 S&C Instruction Sheet 766-520
