lnstallation Opening
Installation
Installation Procedures
First complete the electrical connections and then check for correctness.

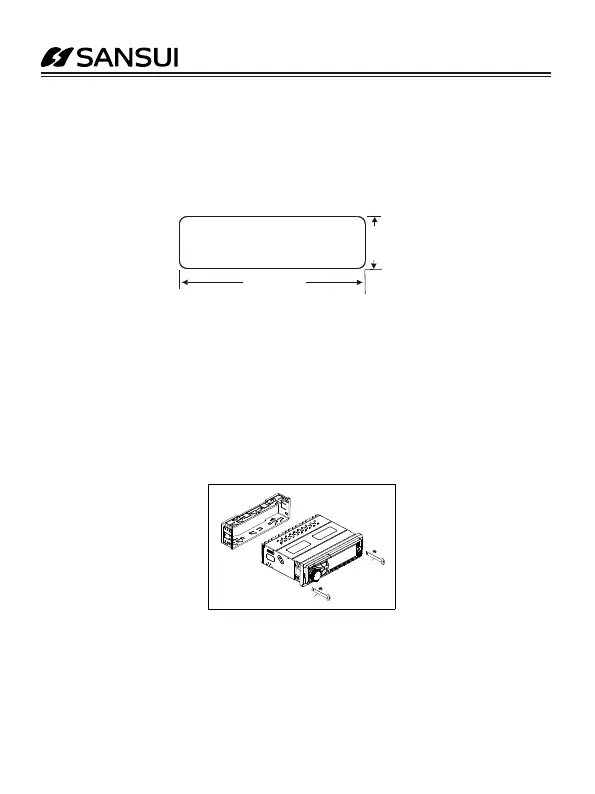

This unit can be installed in any dashboard Having an opening as shown below：
3. Insert the two bracket keys into the left and right side of the chassis, asshown the below figure
to separate the chassis from the housing.
To Install the Car Radio
Be sure you test all connections first, and then follow these steps to install this unit.
1. Make sure the ignition is turned off, and then disconnect the cable from thevehicle battery's
negative (-) terminal.
2. Disconnect the wire harness and the antenna.
6.Make wiring connections, as illustrated in the "Wiring Diagram."
4.Insert mounting sleeve into the dashboard and bend the mounting tabs outwith a screwdriver.
Make sure that the lock lever is flush with the mountin sleeve and is not projecting beyond.
5.Insert car radio into the mounting sleeve.
7.Install the plastic outer trim ring.
182mm
53mm
Bracket key
Bracket key
To Next Page
