The R Series units are designed to supply hot water for handwashing, dishwashing
and general purposes to cloakrooms, canteens and kitchen areas. Containing an
integral cold water cistern, they are ideal for installations where the cold feed is from
the mains supply but an unvented situation is impractical.
Please read and understand these instructions prior to installing your R Series vented
water heater. Particular attention should be paid to the section headed IMPORTANT
INSTALLATION POINTS. Following installation and commissioning the operation of
the heater should be explained to the customer and these instructions left with them for
future reference.
Electrical rating -
2.8 kW @ 230V
3.0 kW @ 240V
Maximum inlet pressure
1 MPa (10 bar)(145psi)
INTRODUCTION
TECHNICAL SPECIFICATION

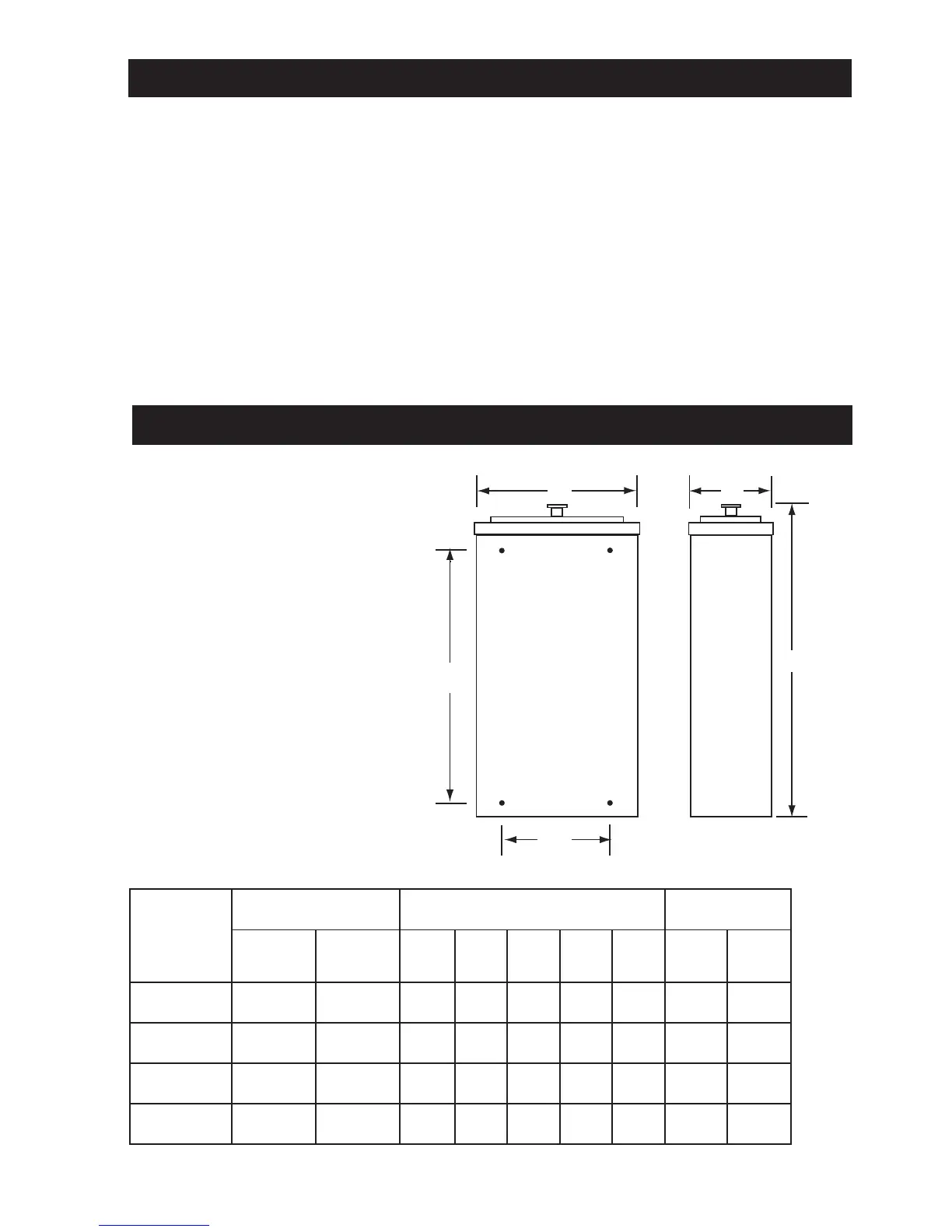

Table 1
A
B
C
D
E
ledoM
)sertil(seiticapaC)mm(snoisnemiD)gk(sthgieW
knaTtoH
nretsiC
knaT
ABCDE ytpmElluF
52R525.40882545127030865154
54R5486480160920147461247
07R078550101609201465852301
511R5118110101654401471803351
