Sanus BLT3 - ADJUSTMENTS; Leveling the TV; Adjusting TV Height; Side-to-Side Shift

10
ADJUSTMENTS

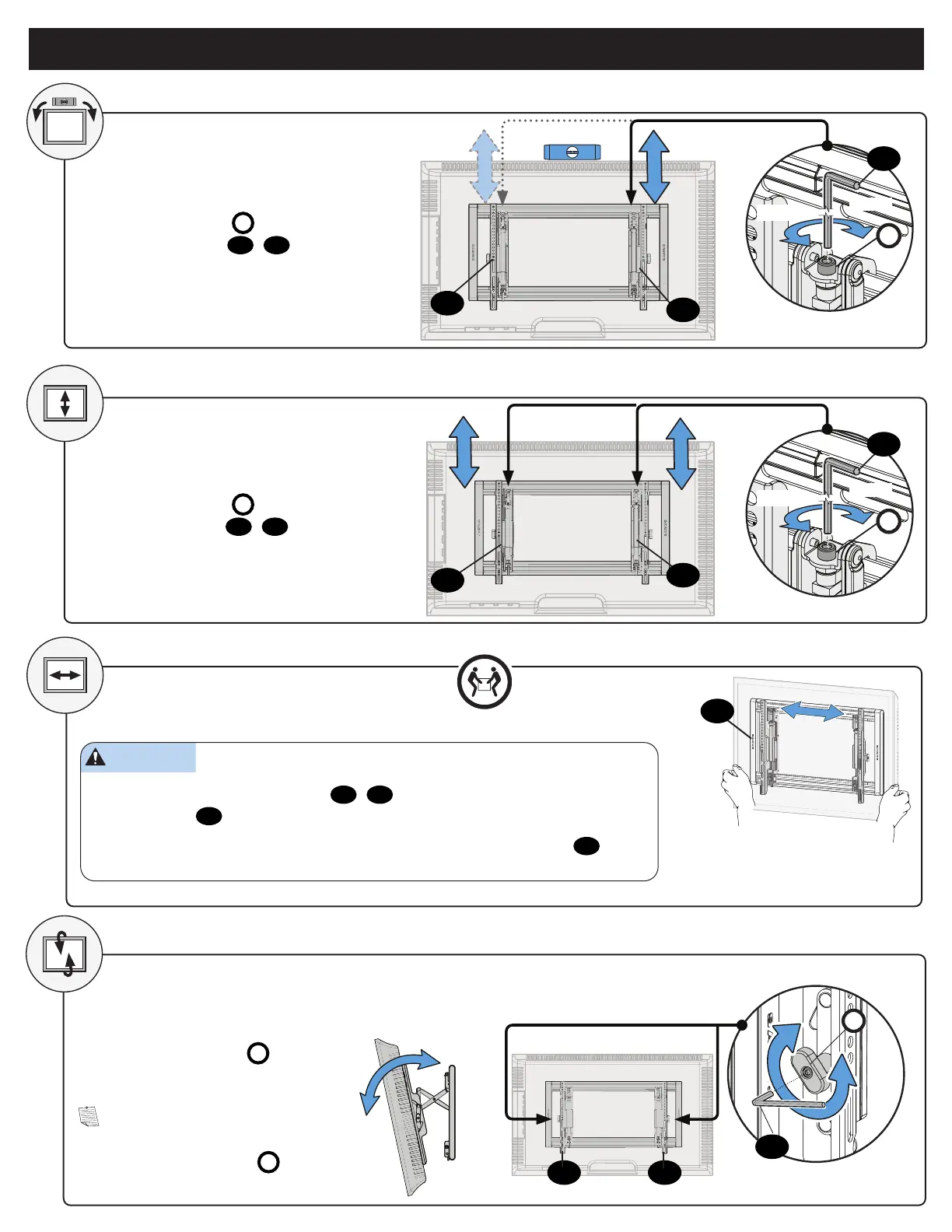

To level your TV, turn the level
adjustment screw
S
on the top of
either TV bracket
04
/
05
to raise or
lower that respective side of the TV.
Adjust the height by turning the level
adjustment screw
S
on the top of
both TV brackets
04
/
05
.
LEVEL
HEIGHT
S
RAISE
LOWER
TILT
Your TV should adjust easily when moved,
then stay in place.
Adjust the tilt tension knob
T
if your TV
naturally tilts up or down.
NOTE: If you do not intend to adjust the
tilt for different viewing locations, you can
tighten the tilt tension knobs
T
to prevent
unwanted movement.
T
CAUTION: Avoid potential personal injury or property damage!
For Concrete Applications, TV brackets
04
/
05
must be centered between the marks on
the wall plate rail
07
.
For Wood Stud Installations ONLY: Slide the TV left or right along the wall plate
07
to
reposition.
SIDE-TO-SIDE SHIFT
HEAVY! You may need
assistance with this step.
05
05
05
04
04
04
10
07
10
S
RAISE
LOWER
10
Align the brackets between
the two lines on the wall plate
for minimum profile depth.
