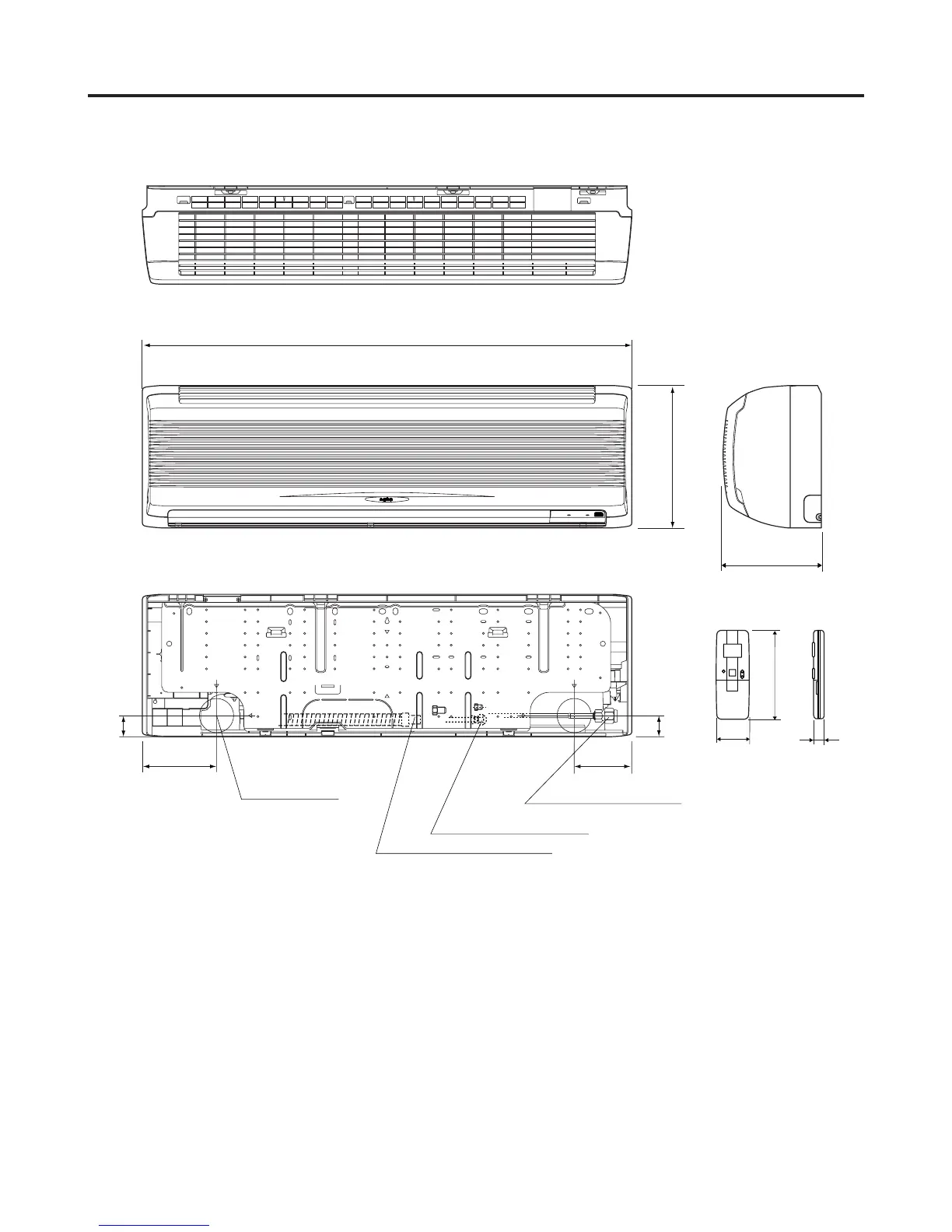

3. DIMENSIONAL DATA
(1) Indoor Unit: KS2462R
6-27/32
Center of tubing
hole (2 places)
Narrow tube 3/8"(ø9.52)
Wide tube 3/4"(ø19.05)
8-31/32
Remote control unit
1-7/8
5-5/16
13
44-7/8
1-7/8
Drain hose O.D. 23/32"(ø18)
2-13/32
25/32
6-7/32
Dimension : inch
