Notes:
• For VIDEO connection, please refer to “BASIC CONNECTIONS”.
• Please refer to the instruction manual of your amplifier.
• When you connect the DVD video player to your amplifier, be sure to turn off the power and disconnect both units from the
wall outlet until all the connections have been made.

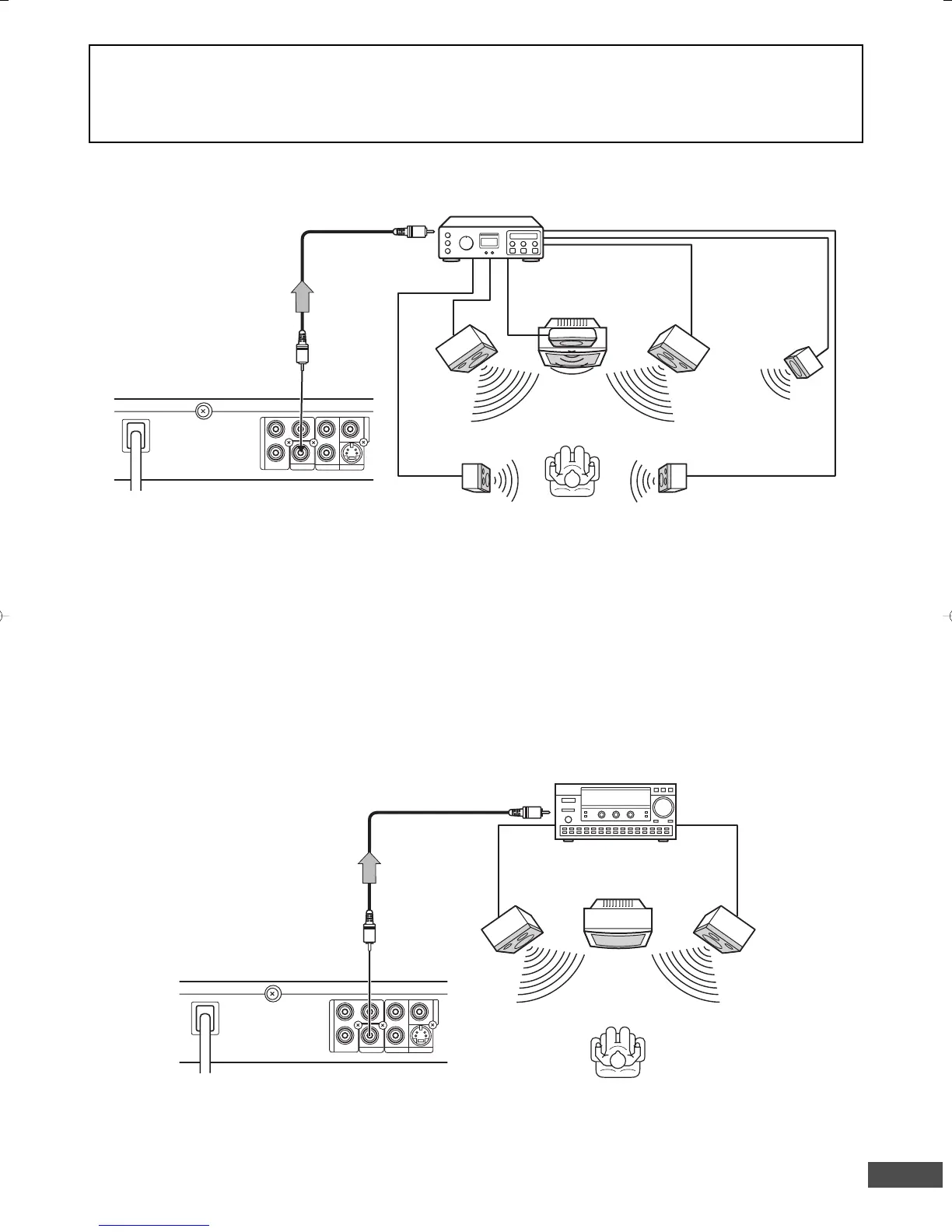

Connecting to an Amplifier with Dolby Digital Decoder or MPEG2 Decoder
(Example 4)
To COAXIAL jack
To enjoy Dolby Digital sound
Select “DOLBY DIGITAL BITSTREAM” in “Setting Digital Out”
on the INITIAL SETTINGS. (See page E33.)
To enjoy MPEG2 sound
Select “MPEG BITSTREAM” in “Setting Digital Out” on the
INITIAL SETTINGS. (See page E33.)
To enjoy 2 Channel Digital Stereo sound
Select “DOLBY DIGITAL LPCM” and “MPEG LPCM” in “Set-
ting Digital Out” on the INITIAL SETTINGS. (See page E33.)
To digital audio input
*Please consult your local audio/video dealer.
To digital audio input
Amplifier with Dolby Digital Decoder or MPEG2 Decoder
*Coaxial audio cable
(not supplied)
Surround
right speaker
Subwoofer
Front right
speaker
Surround left
speaker
Front left
speaker
Center
speaker
Amplifier with a coaxial digital input
Front right
speaker
Front left
speaker
To COAXIAL jack
*Coaxial audio cable
(not supplied)
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are trademarks
of Dolby Laboratories.
*Please consult your local audio/video dealer.
Connecting to a Digital Amplifier (Example 5)
You can enjoy 2 Channel Digital Stereo Sound.
DWM-450-US - English 3/16/05, 3:58 PM13
