-E13-

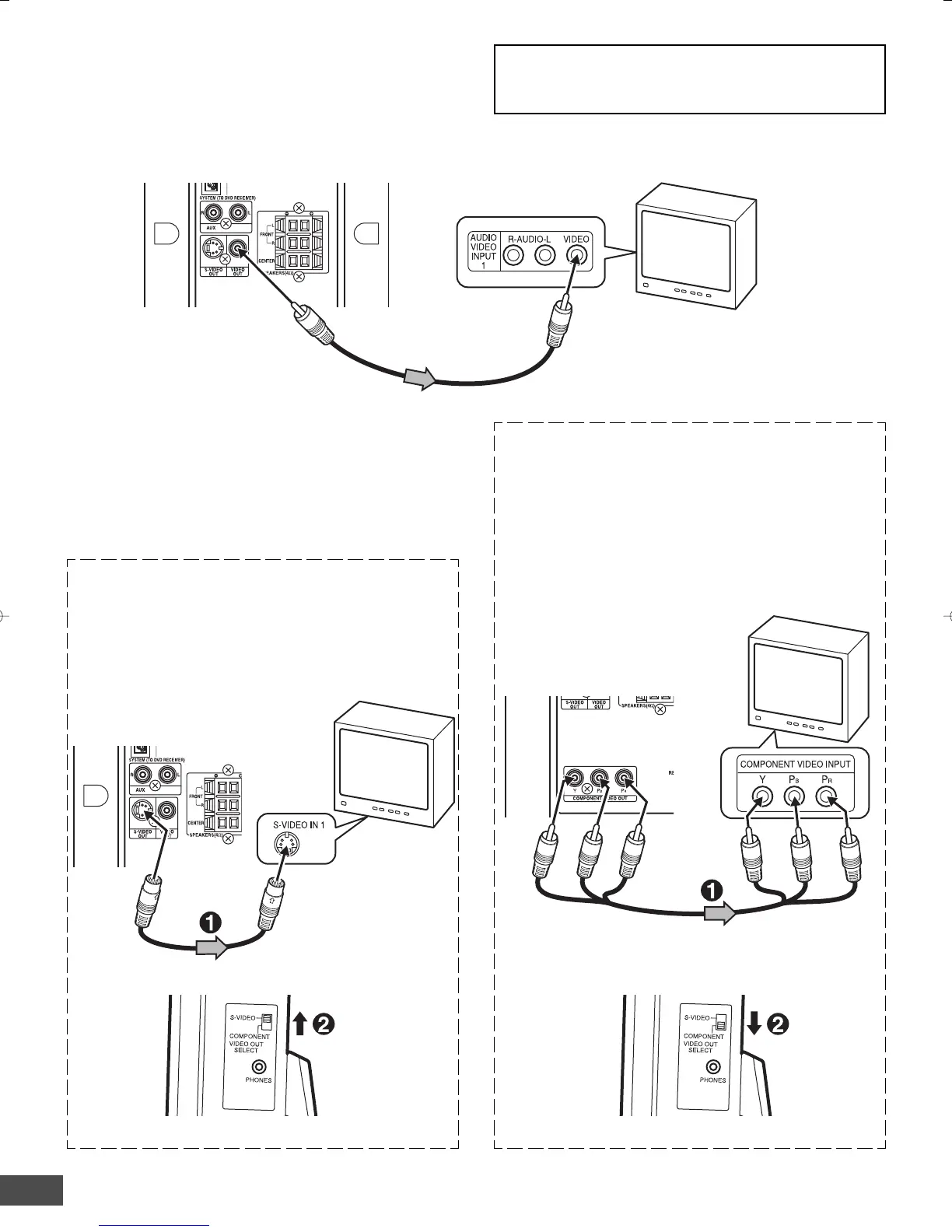

Conventional TV Connection
Using VIDEO OUT jack
Connect the Video cable with yellow connectors (supplied)
between the VIDEO OUT jack of the sub-woofer and the VIDEO
INPUT jack on the TV.
Notes:
• Please refer to your TV instruction manual.
• When you connect the subwoofer to your TV, be sure to turn
off the power and disconnect both units from the wall outlet
until all the connections have been made.
• Do not connect the VIDEO OUT, S-VIDEO OUT, and
COMPONENT VIDEO OUT jacks of the sub-woofer to a VCR
directly. The playback picture will be distorted because DVD
video discs are copy protected.
*S-video cable (not supplied)
TV with S-VIDEO
INPUT jack
Sub-woofer (Powered speaker)
*Please consult your local audio/video dealer.
TV
Important Information:
To connect the unit to a TV, TV must have a Video input jack
(RCA-type) at least. You cannot connect it to an antenna
terminal of TV.
Video cable (supplied)
To VIDEO INPUT jack
To VIDEO OUT jack (Yellow)
Sub-woofer (Powered speaker)
Using S-VIDEO OUT jack
Note:
Please follow the steps before turning on the power.
1. If your TV has the S-VIDEO INPUT jack, connect the *S-
video cable (not supplied) as shown in figure. (The VIDEO
OUT jack connection is not necessary.)
You can enjoy clearer picture playback.
Using COMPONENT VIDEO OUT jacks
Note:
Please follow the steps before turning on the power.
1. If your TV has the COMPONENT VIDEO INPUT jacks,
connect the *Component video cable (not supplied) as
shown in figure.
(The VIDEO OUT or S-VIDEO OUT jack connection is not
necessary.)
You can enjoy high quality picture playback.
TV with COMPONENT
VIDEO INPUT jacks
*Component Video cable (not supplied)
Red
Blue
Green
Sub-woofer (Powered speaker)
Red
Blue
Green
2. Set the VIDEO OUT SELECT switch to the S-VIDEO position.
2. Set the VIDEO OUT SELECT switch to the COMPONENT
position.
Main unit (Right side) Main unit (Right side)
