REMOTE ALARM TERMINAL
WARNING
Always disconnect the power supply cord before connecting an alarm device to the remote alarm
terminal.
The terminal of the remote alarm is installed at the back of the unit. The alarm is generated from this
terminal. The contact capacity is DC 30 V, 2 A.
Contact output:
Between COM and N.O. Between COM and N.C.
At normal condition “Open” “Close”
At abnormal condition “Close” “Open”
Note:
The alarm device is activated when the power cord is disconnected because such condition is determined
as power failure.

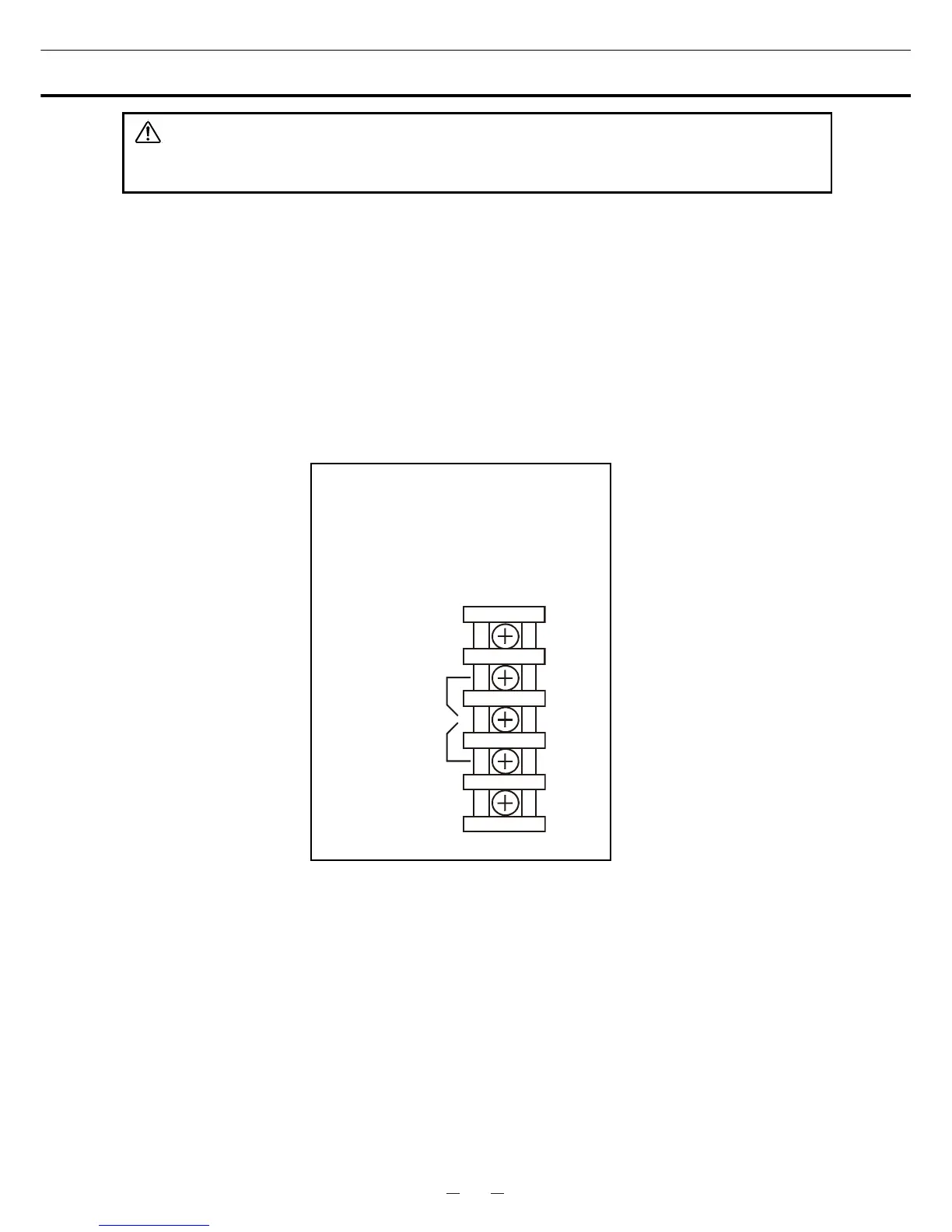

REMOTE
ALARM
COM
MAX DC30 V 2 A
N.C.
N.O.
