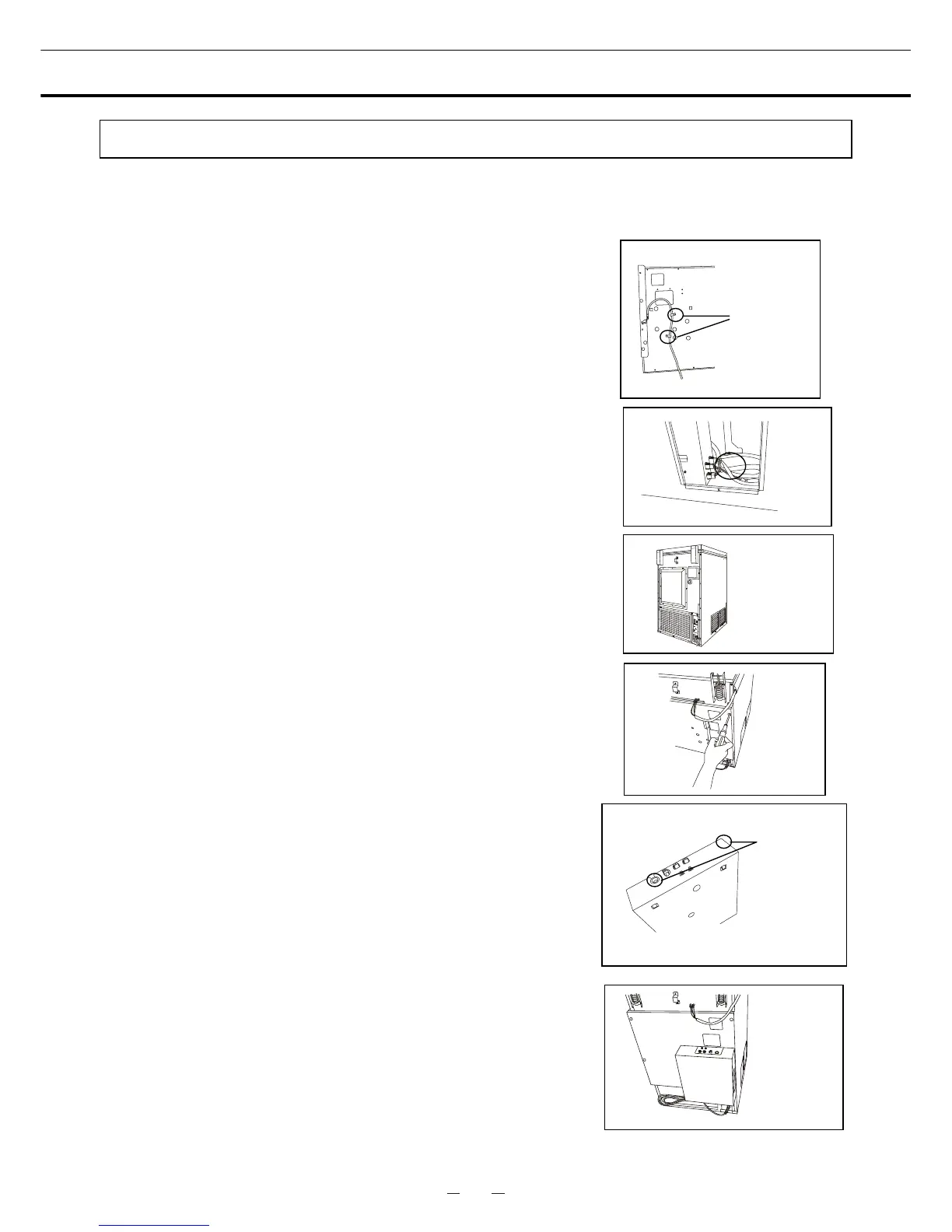

The slit (bottom right rear side) which freezer is being fitted up with, a rear cover, a sensor cover, the
rubber cap of the access port and insulation inside the access port are taken out.
2. Wiring ass’y BP is passed through the nylon clip 7N, and fixed on
the back of MDF-UBK (option) with two screws A (M4 x 10 C It is
tight.). At this time, a wiring ass’y BP point is shown from the lower
corner access port of MDF-UBK 150 mm. (Fig. 1) (It is wired for
the harness in the next step 3)
3. The cover which sticks to the connector (4P) in the rear of
electrical box is removed and connected to the connector that it has
wiring ass’y BP prepared on the product side, It is fixed with lead
wire band on the side of the (Fig. 2) electrical box. The rear cover of
freezer is fixed after the management of the wiring ass’y BP is
finished. (Fig. 3)
4. At this time, four screws in the rear of the freezer are loosened.
(with the second from the top, the 4th (left and right)) And MDF-UBK
is fixed with a screw.
䋨
Fig. 4
䋩
5. An back-up system and an back-up system cover are removed,
and hook of the top (Fig. 5) on the back of the back-up system is
installed on MDF-UBK, and a bottom part is fixed with two screws A
(M4 x 10 C It is tight.). Then, it gains a removed back-up system
cover in the back-up system in the former street. (Fig. 6)
Fig. 3
Fig. 2
Fig. 1
Nylon clip
7N
Fig. 4
Fig. 6
Fig. 5
Fook
To Next Page
