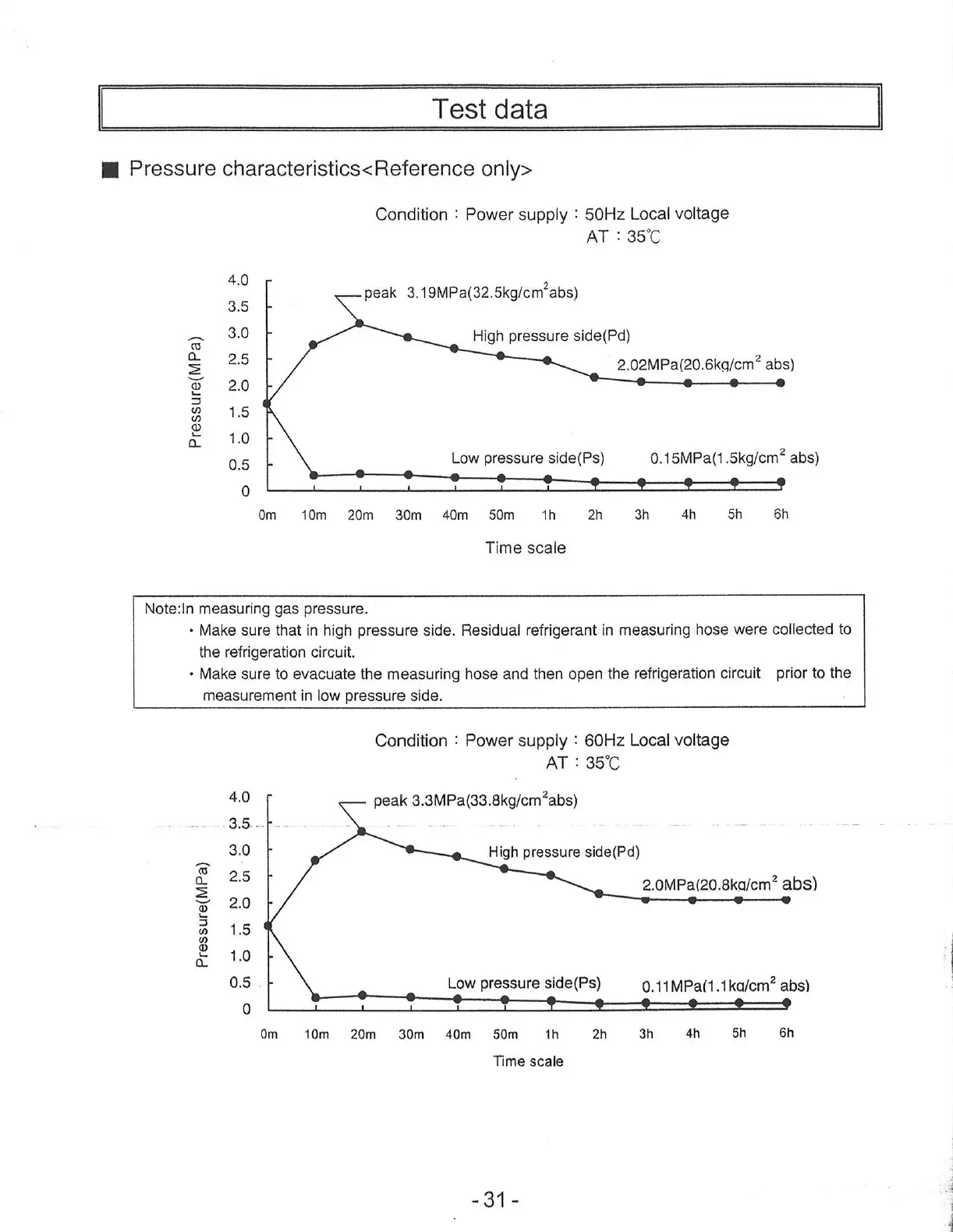

Test data
M Pressure characteristics<Reference only>
Condition : Power supply : 50Hz Local voltage
AT : 35°C
4.0
3.5
3.0
2.5
2.0
15
1.0
0.5
peak 3.19MPa(32.5kg/cm°abs)
High pressure side(Pd)
2.02MPa(20.6kg/cm? abs)
Pressure(MPa)
Low pressure side(Ps) 0.15MPa(1.5kg/cm? abs)
1 1 i 1 L 1
Om 10m 20m 30m 40m 50m th 2h 3h 4h Sh 6h
Time scale
Note:In measuring gas pressure.
+ Make sure that in high pressure side. Residual refrigerant in measuring hose were collected to
the refrigeration circuit.
+ Make sure to evacuate the measuring hose and then open the refrigeration circuit prior to the
measurement in low pressure side.
Condition : Power supply : 60Hz Local voltage
AT : 35°
4.0
3.5--
3.0
25
2.0
1.5
1.0
0.5
peak 3.3MPa(33.8kg/cm“abs)
High pressure side(Pd)
2.0MPa(20.8ka/cm? abs)
Pressure(MPa)
Low pressure side(Ps)
0.11MPa(1.1ka/cm? abs)
L 1
0m 10m 20m 30m 40m 50m 1h 2h 3h 4h 5h 6h
Time scale
-31-
