Sanyo MDF-U730

Test data

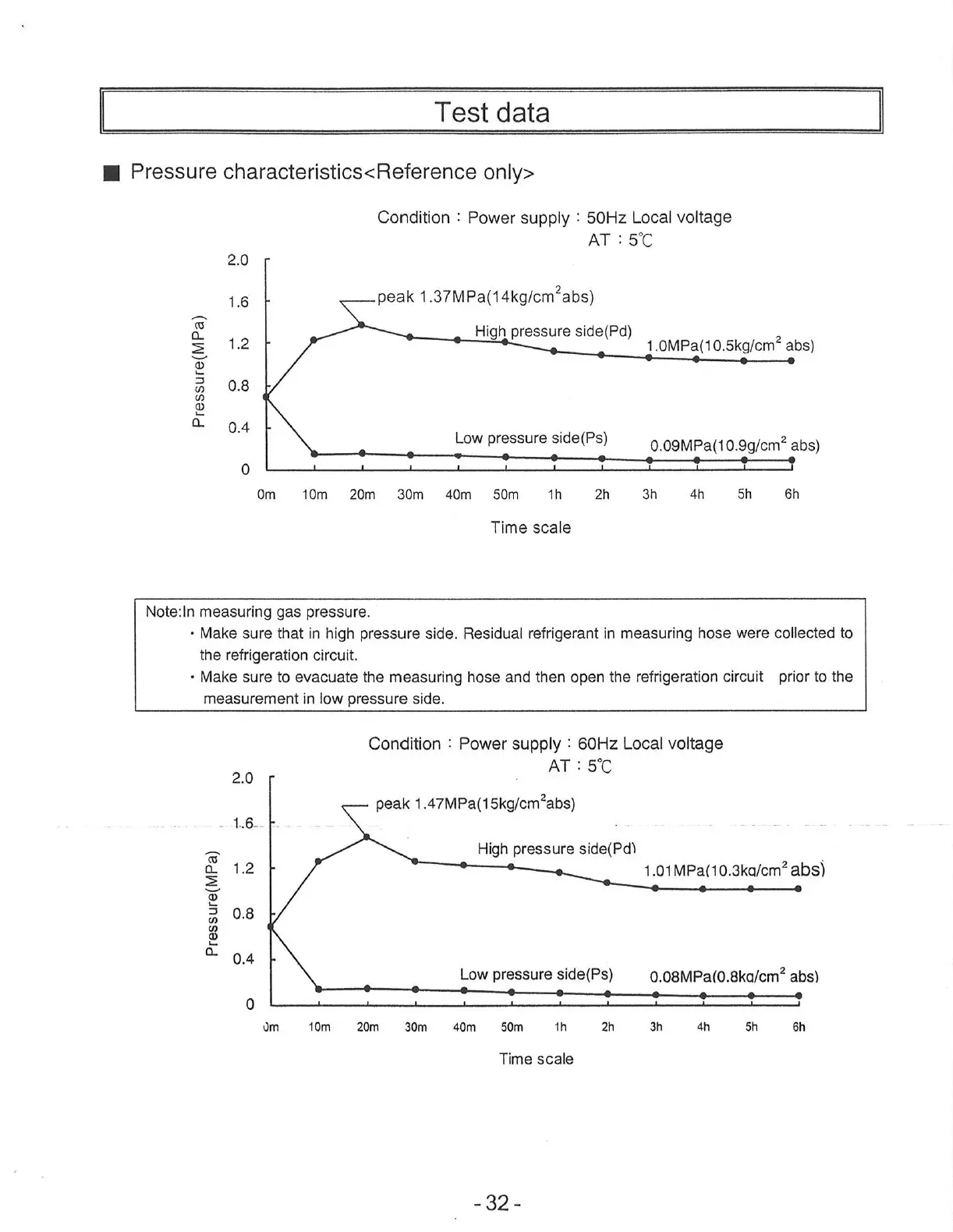

M Pressure characteristics<Reference only>
Condition : Power supply : 50Hz Local voltage
AT : 5C
2.0
16 peak 1.37MPa(14kg/cm?abs)
High pressure side(Pd) 3
1.2 1.0MPa(10.5kg/cm° abs)
0.8
Pressure(MPa)
0.4
Low pressure side(PS) —0.0gMPa(10.9g/cm? abs)
1 1 L 1 1 i 1 1 1 Ἱ
Om 10m 20m 30m 40m 50m th 2h 3h 4h Sh 6h
Time scale
Note:In measuring gas pressure.
* Make sure that in high pressure side. Residual refrigerant in measuring hose were collected to
the refrigeration circuit.
* Make sure to evacuate the measuring hose and then open the refrigeration circuit prior to the
measurement in low pressure side.
Condition : Power supply : 60Hz Local voltage
20 AT : 5°C
peak 1.47MPa(15kg/cm?abs)
1.6
High pressure side(Pd\
12
1.01MPa(10.3ka/cm?
abs)
0.8
Pressure(MPa)
0.4
軸 Low pressure side(Ps) 0.08MPa(0.8ka/cm? abs)
1 + L
om 10m 20m 30m 40m 50m 1h 2h 3h 4h 5h 6h
Time scale
- 32 -
