-15-
Mechanical Disassembly

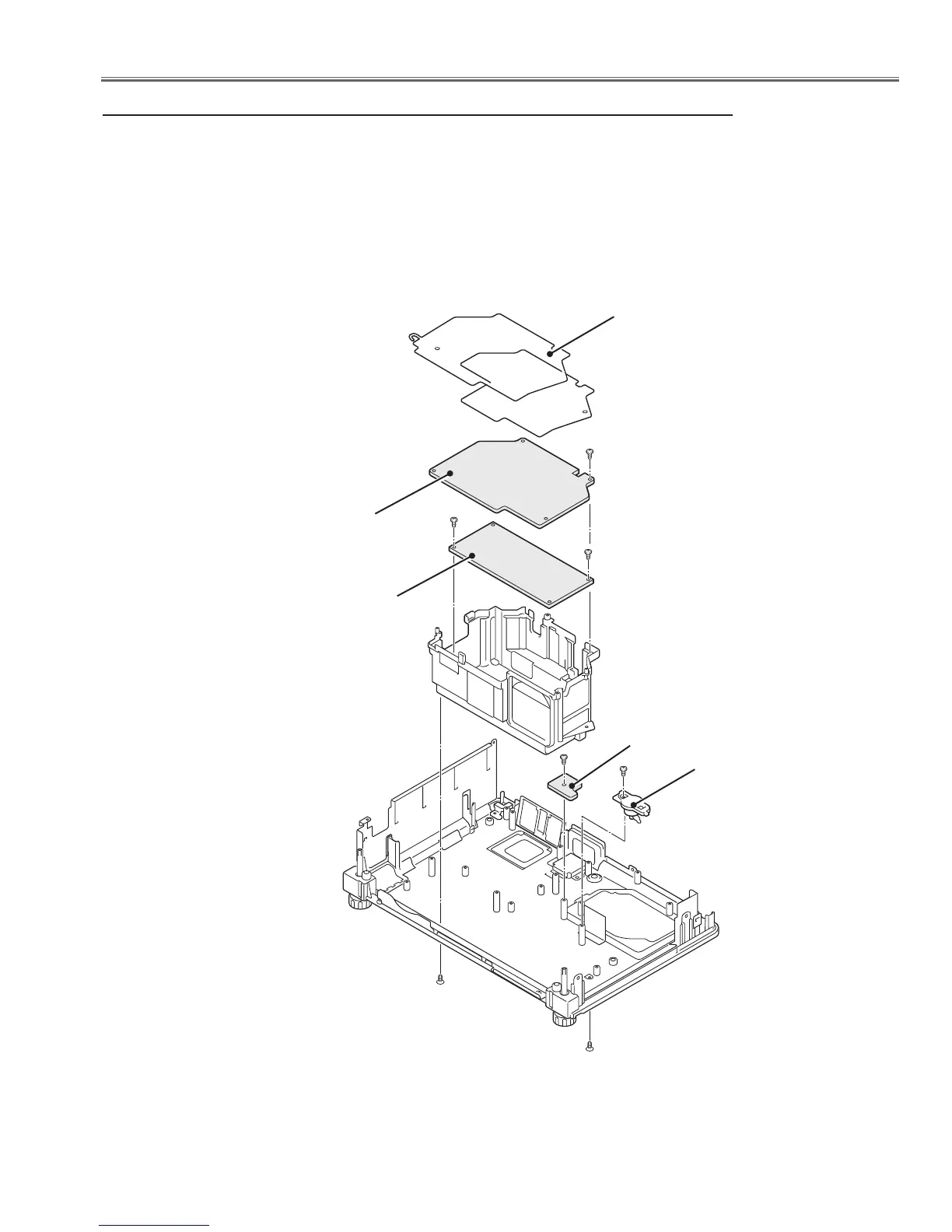

Fig.5
b Power, Ballast, Lamp Cover Sw Board, Thermal Sw(SW902) removal
Isolation sheet (2 sheet)
Lamp cover
switch board
Themal switch
(SW902)
Power board
(T3x6)
(T3x6)
(T3x6)x2
(T3x6)
Ballast board
1. Remove the Power board.
2. Remove the Ballast board.
3. Remove the Lamp cover switch board and thermal switch (SW902).
(T3x6)
(Black)
(T3x6)
(Black)
