Installation
Connecting to a Computer
ONON
S-VIDEO IN
MONITOR OUT
COMPUTER IN 2 /
COMPUTER /
COMPONENT
AUDIO IN
R
VIDEO IN
L
(MONO)
(VARIABLE)
AUDIO OUT
COMPUTER IN 1
/ COMPONENT IN
USB
SERVICE PORT
RESET

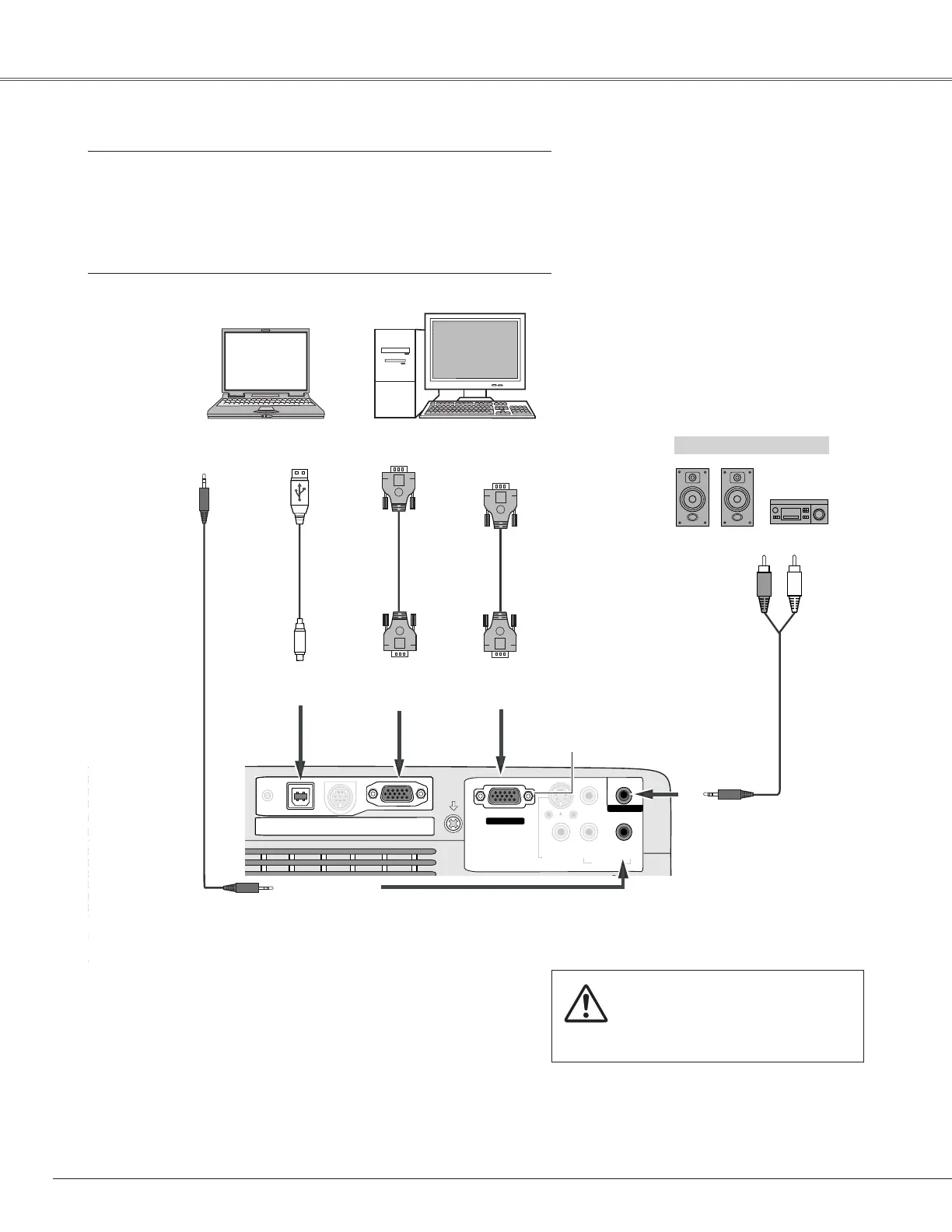

Cables used for connection
• VGA Cables (Mini D-sub 15 pin) (Only one cable is supplied.)
•USB Cable
• Audio Cables (Mini Plug: stereo)
(Not all the cables are suppled with this projector.)
External Audio Equipment
VGA cable USB cable
Audio cable
(stereo)
Audio cable
(stereo)
Monitor Output
or
Monitor Input
USB portAudio Output
USB
COMPUTER/
COMPONENT
AUDIO IN
AUDIO OUT
(stereo)
Audio Input
COMPUTER IN 2/
MONITOR OUT
Unplug the power cords of both the
projector and external equipment from
the AC outlet before connecting the
cables.
✔
Note:
• Input sound to the COMPUTER / COMPONENT AUDIO IN
terminal when using the COMPUTER IN 1 / COMPONENT IN and
the COMPUTER IN 2/MONITOR OUT terminal as input.
• When connecting the AUDIO OUT to external audio equipment,
the projector's built-in speaker is disconnected.
• When the cable is
of the longer variety
, it is advisable to use the
COMPUTER IN 1 / COMPONENT IN and not the COMPUTER IN
2 / MONITOR OUT.
• See p. 65 for ordering optional parts.
Monitor Output
COMPUTER IN 1/
COMPONENT IN
VGA cable
This terminal is switchable. Set up the
terminal as either Computer input or
Monitor output. (See p. 45.)
