Sanyo PLC-XP46 Service Manual

-11-

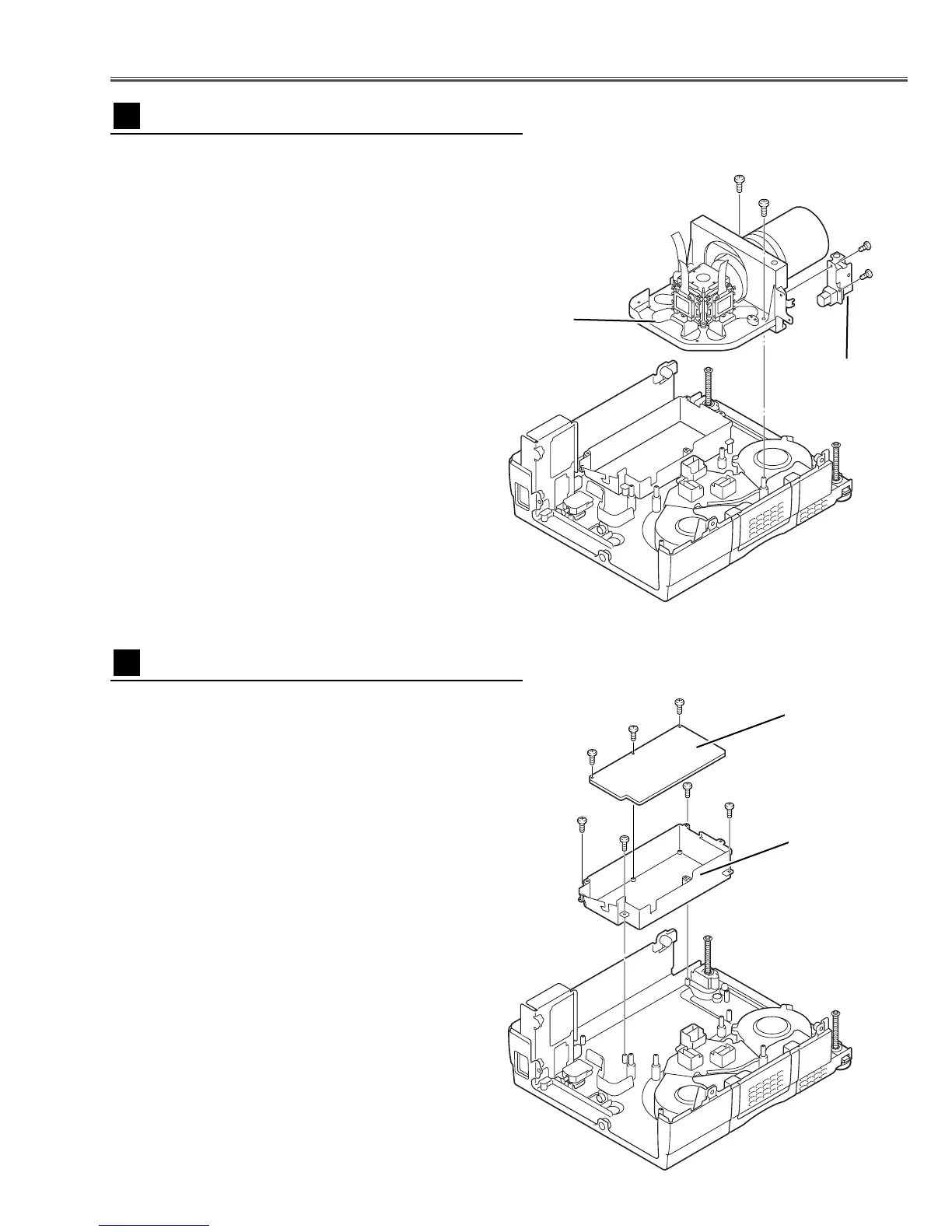

1 Remove 2 screws A to take the Prism Base ass’y
upward off.
2 Remove 2 screws B to take the Lens Shift Motor and
Sensor SW Holder from the Base.
Mechanical Disassemblies
1 Remove 3 screws A to take the Power Board off.
2 Remove 4 screws B to take Holder off from the cabinet
bottom.
Fig.8
Fig.7
Prism Base removal
7
Power Board removal
8
Prism Base Ass’y
Motor and
Sensor Holder
B
B
A
A
Power Board
Power Board
Holder
B
B
A
A
B
B
A
