MA8-XP4600, MA8-XP46L00, MB8-XP4100, MB8-XP41L00
-61-

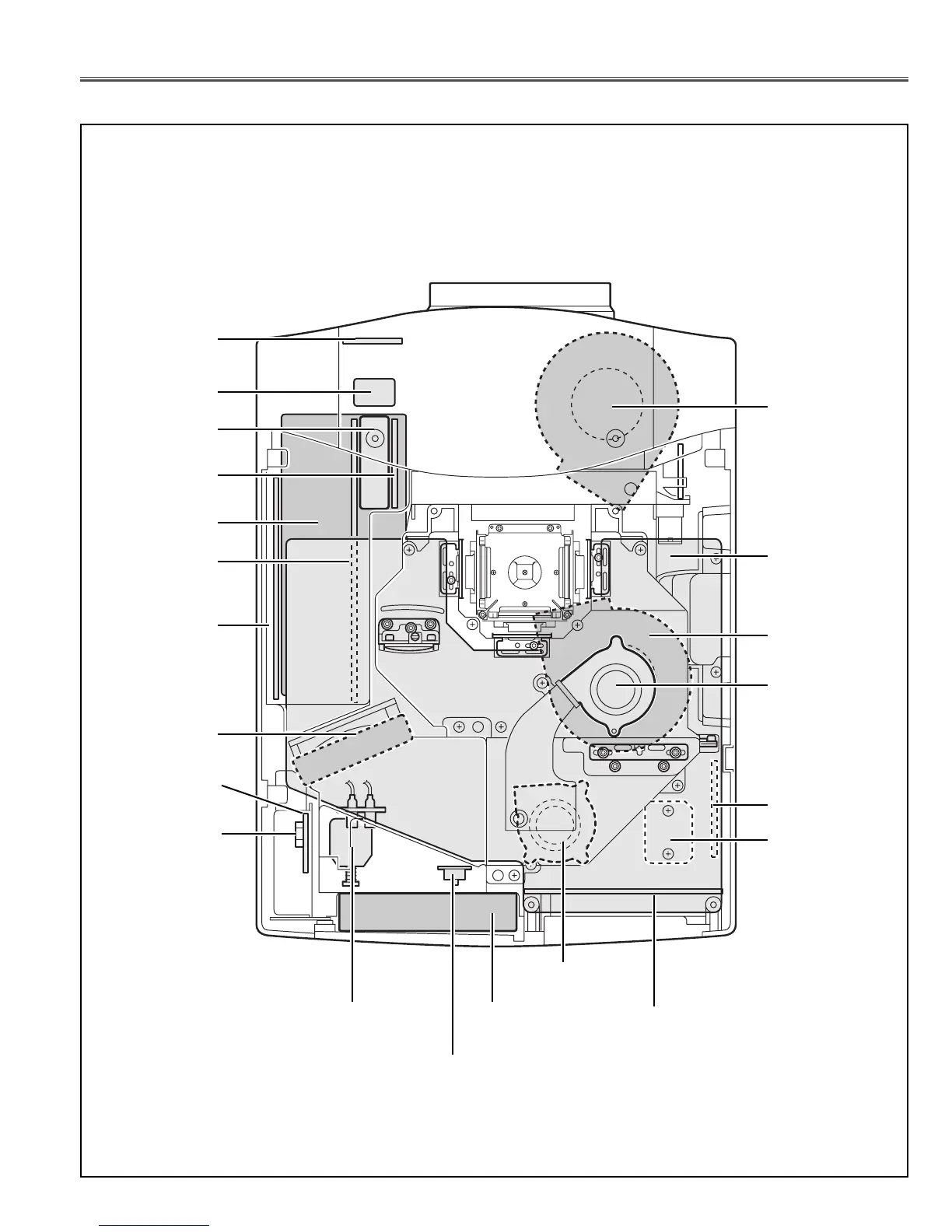

Electrical Parts List
● OUT OF CIRCUIT BOARD
F601
Fuse
Power Board
Thermal Switch
(SW905)
Note: Parts order must contain Chassis No., Part No., and Descriptions.
FN901
Cooling Fan
Connect
Board
FN904
Cooling Fan
Interlock switch
(SW902)
Drive Board
RC1 Board
AV Board
Main Board
Line Filter
Board
Lamp Ballast
Board
FN902
Cooling Fan
FN905
Cooling Fan
Sensor1
Board
FN903
Cooling Fan
FN908
Cooling Fan
Sub Power
Board
FN907
Cooling Fan
I/F
Board
