Sanyo PLC-XP57L Service Manual

- 11 -

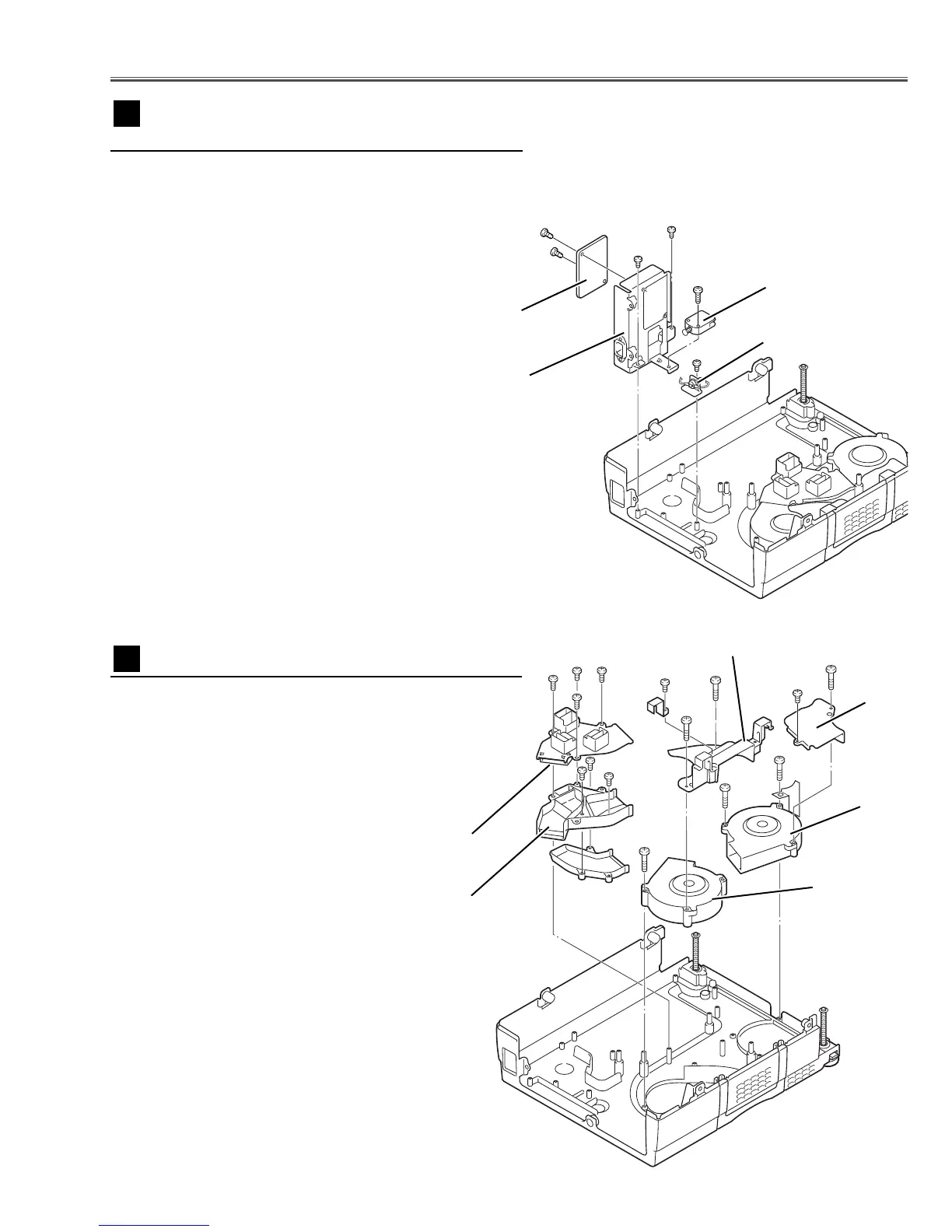

1 Remove 1 screw A to take Interlock Switch(SW902).
2 Remove 2 screws B to take Filter Board Holder and
remove 2 screws C to take Filter Board from the Holder.
3 Remove 1 screw D to take Thermal Switch(SW905).
Mechanical Disassemblies
Fig.9
Filter Board & Interlock SW & Thermal SW
removal
9
D
Interlock Switch
(SW902)
Filter Board
C
C
A
B
B
Holder
Thermal Switch
(SW905)
1 Remove 4 screws A to take Air-duct Top off.
2 Remove 1 screw B (small) and 1 screw C (big) to take
Duct Cover-A.
3 Remove 2 screws D to take Fan (FN901) off.
4 Remove 1 screw E (small) and 3 screws F (big) to take
Air-duct-A and Fan (FN902) off.
Fig.10
Fans (FN901, FN902) removal
10
A
A
AA
B
C
D
D
E
F
F
F
Duct
Cover
-A
FN901
FN902
Air-duct-A
Air-duct
To p
Duct
Cover-B

Sanyo PLC-XP57L Specifications

General

Number of colors	1.073 billion colors
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	2359296 pixels
Aspect ratio	4:3
Dimensions (WxDxH)	319 x 429.5 x 168 mm
Power requirements	100-240 V AC, 50/60 Hz
Lamp type	UHP
Lamp power	318 W
Light source type	Lamp
Noise level	36 dB
Dot clock scanning frequency	180 MHz
Analog signal format system	NTSC, NTSC 4.43, PAL, SECAM
Audio (L/R) in	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	5
Component video (YPbPr/YCbCr) in	3
Power consumption (standby)	15 W
Power consumption (typical)	480 W

Weight and Dimensions

Weight	7900 g
