Sanyo PLC-XP57L Service Manual

- 7 -
Mechanical Disassemblies

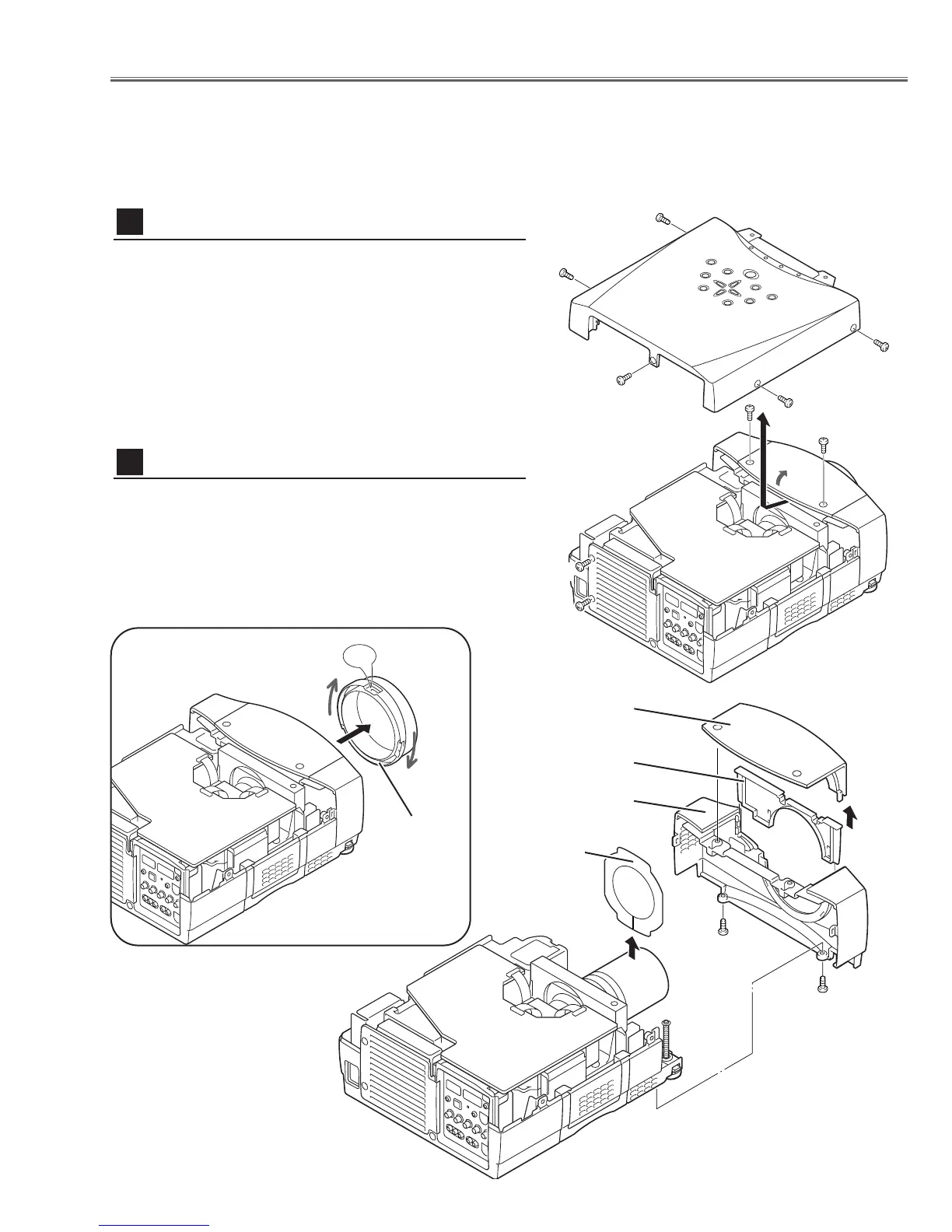

1 Remove 5 screws A, 2 screws B, and loosen 2 screws
C, and then take the Cabinet Top upward off.
Note: If you want to remove the Cabinet Front-Top only,
you do not need to remove screws A. Remove 2 screws B
and Lens Front Cover.
Mechanical disassemble should be made following procedures in numerical order.
Following steps show the basic procedures, therefore unnecessary step may be ignored.
Caution:
The parts and screws should be placed exactly the same position as the original otherwise it may cause loss of
performance and product safety.
Fig.1
1 Tu rn the Lens Front Cover counter-clockwise and to take
it off by pulling forward as shown in Fig.2-1.
2 Remove the Cabinet Front-Top, Lens Cover Holder and
Lens Cover upward off.
3 Remove 2 screws D to take the Cabinet Front off.
4 Remove the RC Board and speakers on the Cabinet
Front.
Fig.2
-2
Cabinet Top removal
1
Cabinet Front removal
2
UP
Fig.2-1
C
B
A
A
A
A
B
A
D
D
Cabinet Front-Top
Lens
Front
Cover
Lens Cover Holder
Cabinet Front
Lens Cover
C

Sanyo PLC-XP57L Specifications

General

Number of colors	1.073 billion colors
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	2359296 pixels
Aspect ratio	4:3
Dimensions (WxDxH)	319 x 429.5 x 168 mm
Power requirements	100-240 V AC, 50/60 Hz
Lamp type	UHP
Lamp power	318 W
Light source type	Lamp
Noise level	36 dB
Dot clock scanning frequency	180 MHz
Analog signal format system	NTSC, NTSC 4.43, PAL, SECAM
Audio (L/R) in	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	5
Component video (YPbPr/YCbCr) in	3
Power consumption (standby)	15 W
Power consumption (typical)	480 W

Weight and Dimensions

Weight	7900 g
