Sanyo PLC-XP57L Service Manual

- 9 -

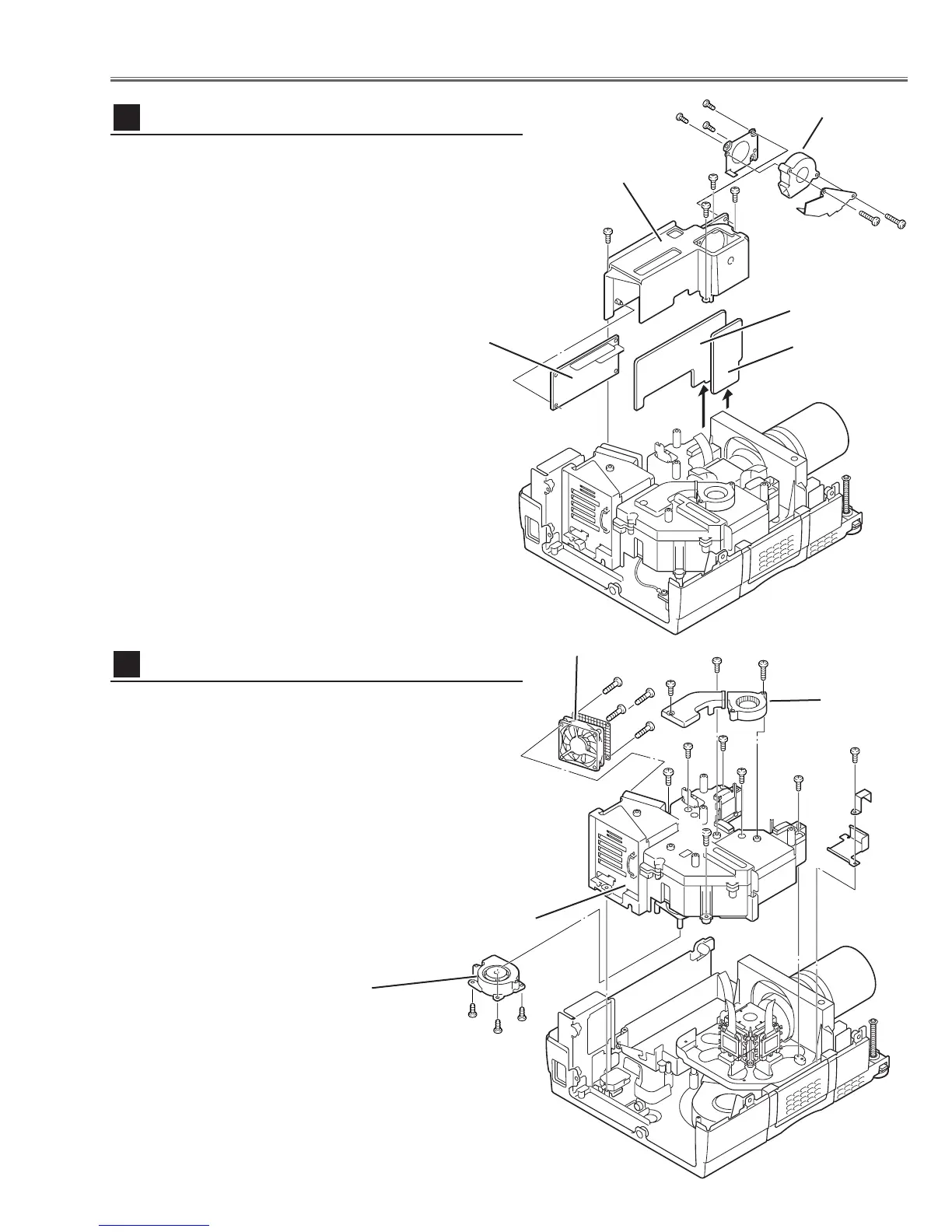

Mechanical Disassemblies
1 Remove 4 screws A to take the Ballast Cover upward
off.
2 Remove 3 screws B to take the Fan (FN904) and the
Fan mounting base off.
3 Remove 2 screws C to take the Fan (FN904) off from
the Fan mounting base.
4 Remove the Sub Power Board and Drive Board by
pulling them upward.
Fig.5
Lamp Ballast Unit removal
5
A
Ballast Board
FN904
Sub Power
Board
Drive Board
A
A
A
C
C
Ballast Cover
1 Remove 1 screw A and then remove the holder.
2 Remove 2 screws B and 4 screws C(small) and pull the
Optical Unit upward off.
3 Remove 4 screws D to take the Fan (FN906) off.
4 Remove 1 screws E to take the Fan (FN903) off and 2
screws F to take the air duct off.
5 Remove 3 screws G to take the Fan (FN907) off.
Fig.6
Optical Unit removal
6
FN906
FN903
Optical Unit
B
B
C
C
C
C
D
D
D
E
F
F
A
FN907
G
G
G
B
B
B

Sanyo PLC-XP57L Specifications

General

Number of colors	1.073 billion colors
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	2359296 pixels
Aspect ratio	4:3
Dimensions (WxDxH)	319 x 429.5 x 168 mm
Power requirements	100-240 V AC, 50/60 Hz
Lamp type	UHP
Lamp power	318 W
Light source type	Lamp
Noise level	36 dB
Dot clock scanning frequency	180 MHz
Analog signal format system	NTSC, NTSC 4.43, PAL, SECAM
Audio (L/R) in	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	5
Component video (YPbPr/YCbCr) in	3
Power consumption (standby)	15 W
Power consumption (typical)	480 W

Weight and Dimensions

Weight	7900 g
