Sanyo PLC-XT11

C
C
D
x
y
a
b
A
A
B
-22-

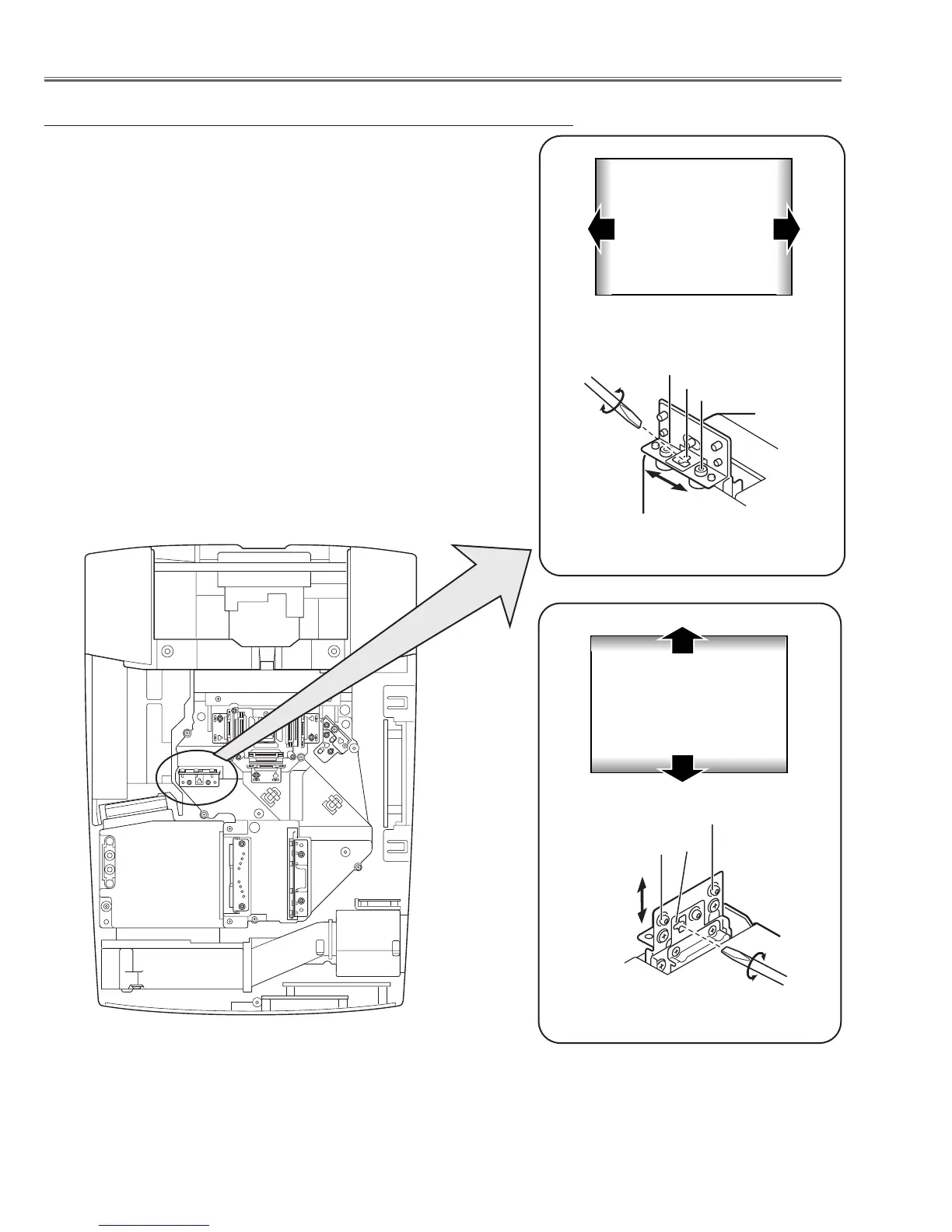

1 Turn the projector on by a state of without FPC cables.
2 Adjust the adjustment base of relay lens ass’y to make color unifor-
mity in white.
1) If the shading appears on the left or right of the screen as shown
in Fig.3-1, loosen 2 screws A with the 2.0mm hex driver, and
adjust the slot B to make color uniformity in white by using a slot
screwdriver.
2) If the shading appears on the top or bottom of the screen as
shown in Fig.3-2, loosen 2 screws C with the 2.0mm hex driver,
and adjust the slot D to make color uniformity in white by using a
slot screwdriver.
3 Tighten the screws A and C to fix the relay lens unit.
Fig.3-1
a
Moving of Slot B
b
White
Fig.3-2
Moving of Slot D
y
x
Relay Lens-Out adjustment
White
Optical Adjustments
