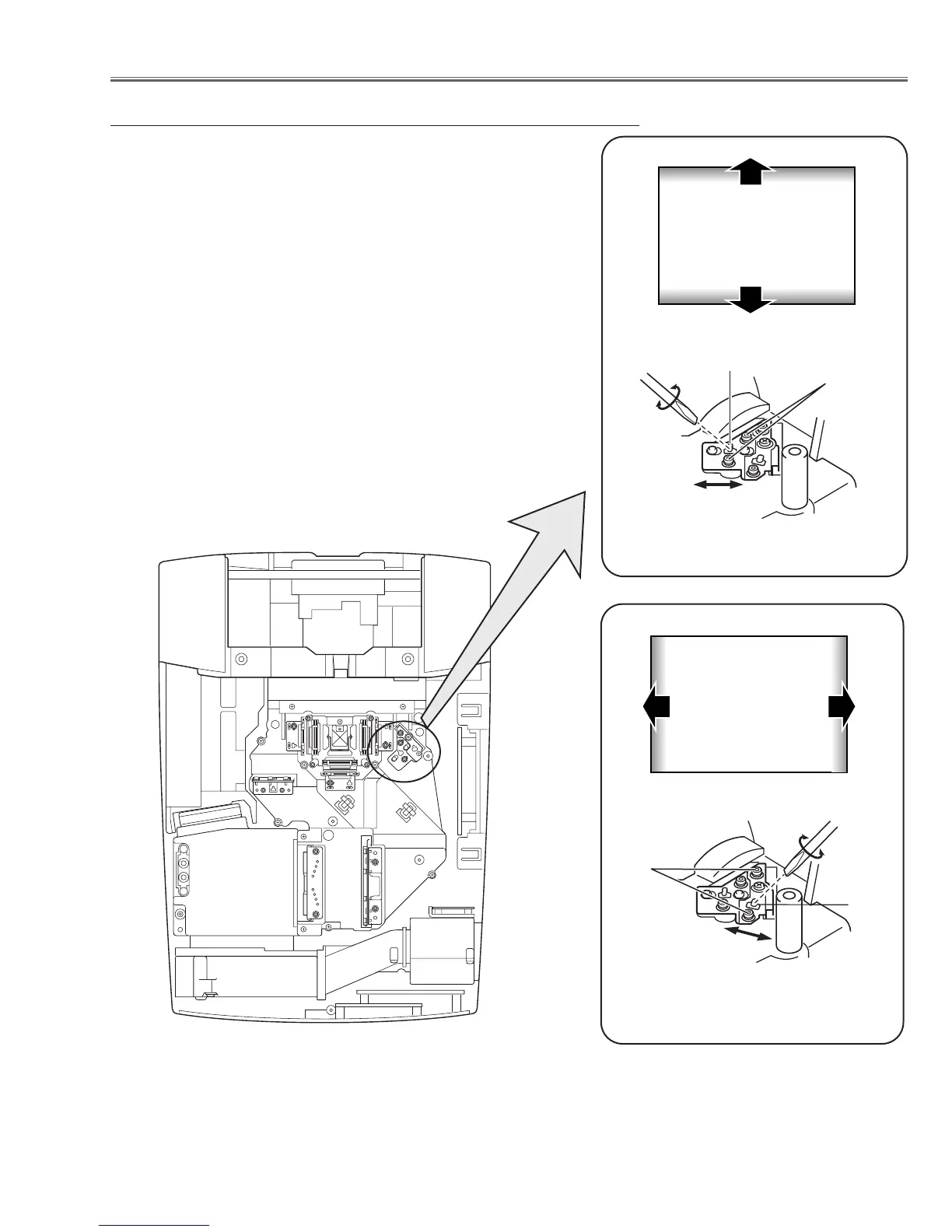

Fig.4-1
Moving of Slot B
White
Fig.4-2
Moving of Slot D
y
x
White
-23-
1 Turn the projector on by a state of without FPC cables.
2 Adjust the adjustment base of mirror to make color uniformity in
white.
1) If the cyan bar appears on the top or bottom of the screen as
shown in Fig.4-1, loosen 2 screws A with the 2.0mm hex driver,
and adjust the screw B to make color uniformity in white by using
a slot screwdriver.
2) If the shading appears on the left or right of the screen as shown
in Fig.4-2, loosen 2 screws C with the 2.0mm hex driver, and
adjust the slot D to make color uniformity in white by using a slot
screwdriver.
3 Tighten the screws A and C to fix the relay lens unit.
Mirror adjustment
Optical Adjustments
a
b
