-14-

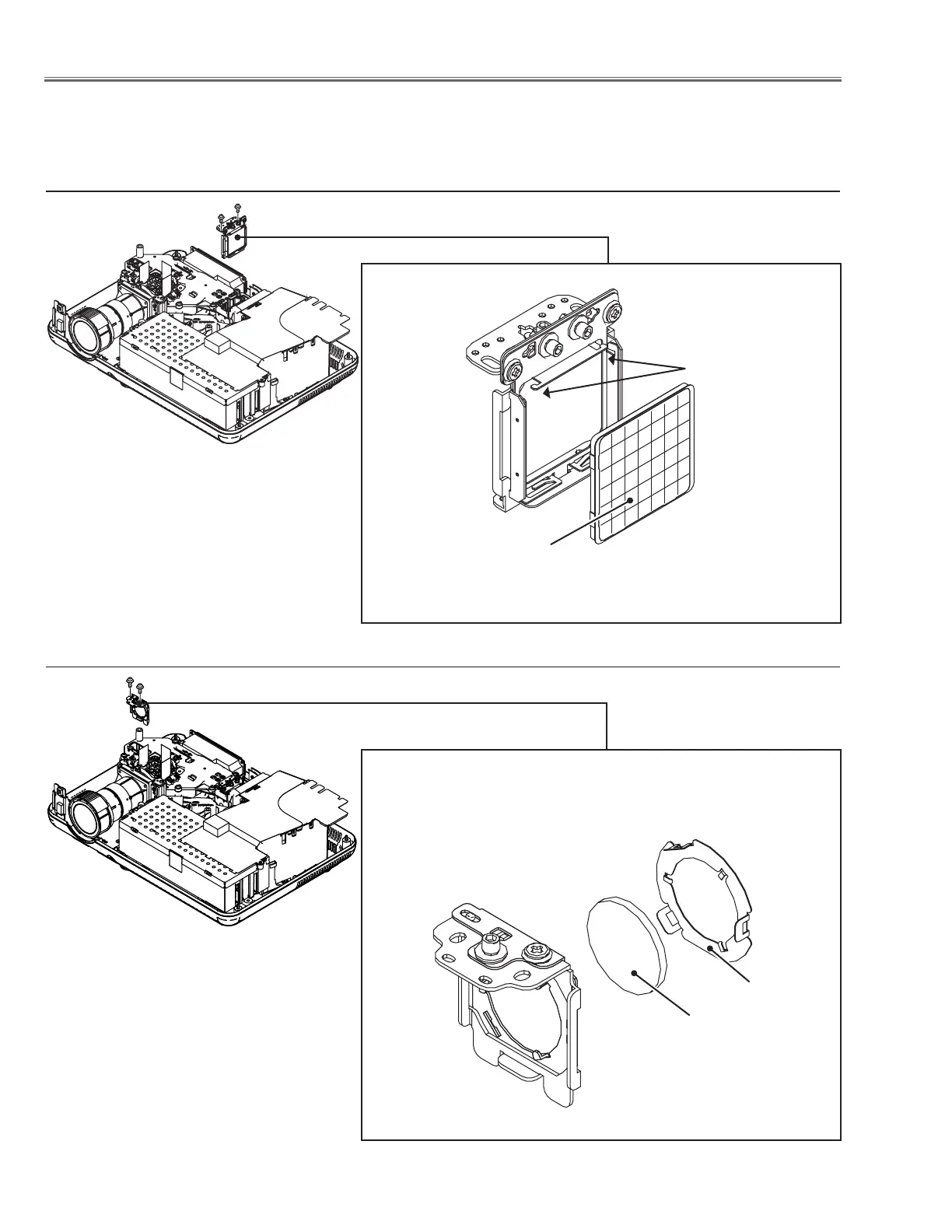

Optical Parts Disassembly
Before taking this procedure, remove Cabinet Top , Cabinet Front and Main Board following to the “Mechanical Disas-
sembly”.
Disassembly requires a 2.0mm hex wrench.
z Integrator lens-in disassembly
Hooks
Integrator lens-in
Integrator Lens-In Ass'y
(M2.5x5)x2
Fig.1
* Rugged surface
(Behind)
x Relay lens disassembly
Relay lens
Relay lens Ass'y
(M2.5x5)x2
Fig.2
Spring
