-17-

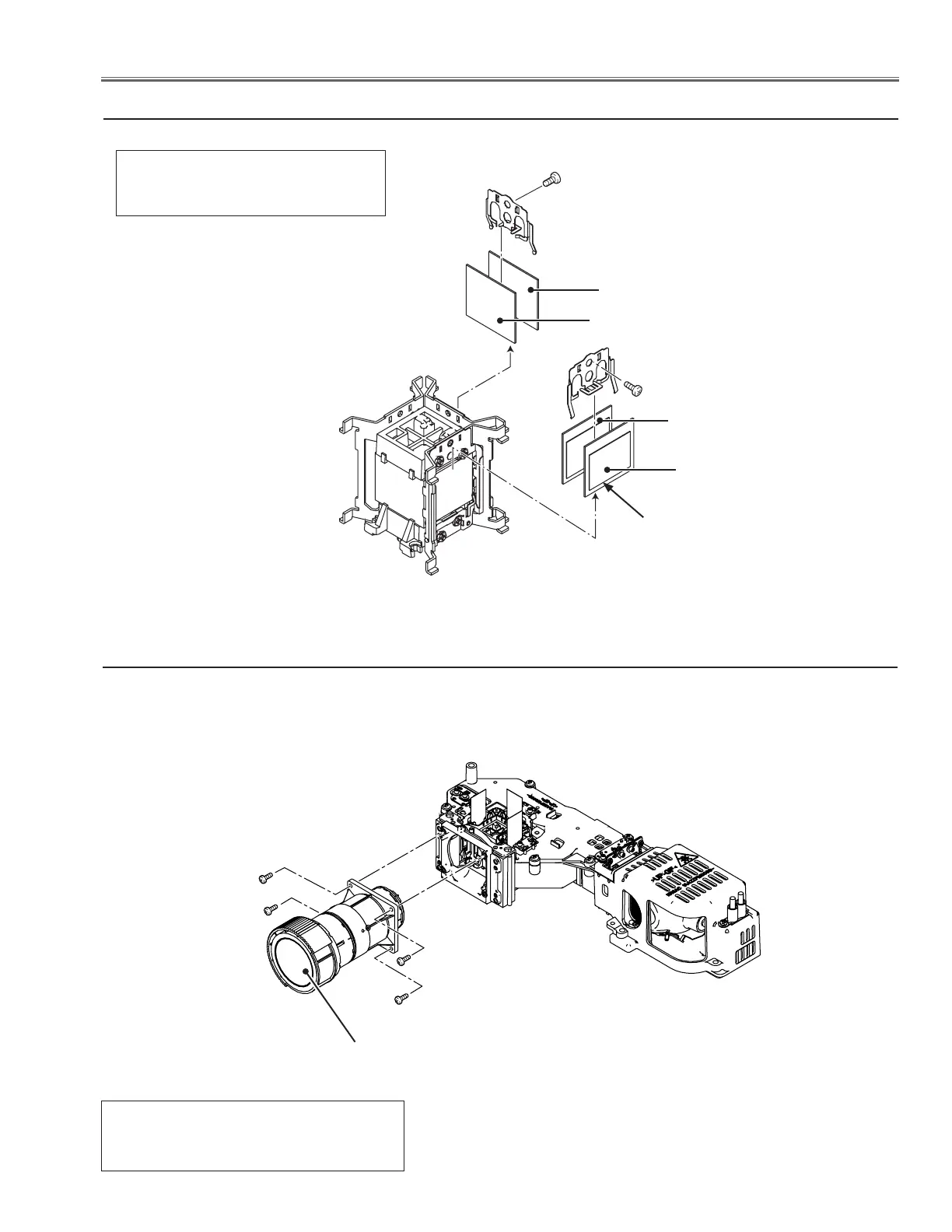

Optical Pats Disassembly
b Polarized glass, Pre-polarized glass removal
Polarized Glass(G)
Pre-Polarized Glass(G)
* Mount the polarized glasses as the
film attached side comes to the LCD
panel side.
(M2x2)
(M2x2)
Film
(Blue)
(Red)
(Green)
Pre-Polarized Glass(B)
Fig.5
n Projection lens removal
(M2.5x8)x4
Projection lens
Polarized Glass(B)
* Before removing the Projection Lens, it is
required to remove the Optical Unit from
the cabinet bottom.
Fig.6
To Next Page
