Sanyo SAP-DMRV183GJ User Manual

17
6. ELECTRICAL DATA
Connector
(WHT)
Fan motor
Trans-P
3P (WHT)
SUP
5P (BLK)
Humidity sensor
Power transformer
IND lamp assy
Terminal
plate
From Outodoor Unit
Room thermistor
Coil thermistor
Room/Coil
4P (WHT)
Lamp.1
3P (WHT)
HUM
2P (RED)
Lamp.2
5P (WHT)
SW. 1
3P (BLK)
Trans-S
2P (WHT)
Connector
(WHT)
Capacitor
Demo switch
Static pressure switch
Demo SW
2P (WHT)
Fan SW
2P (BLK)
Controller

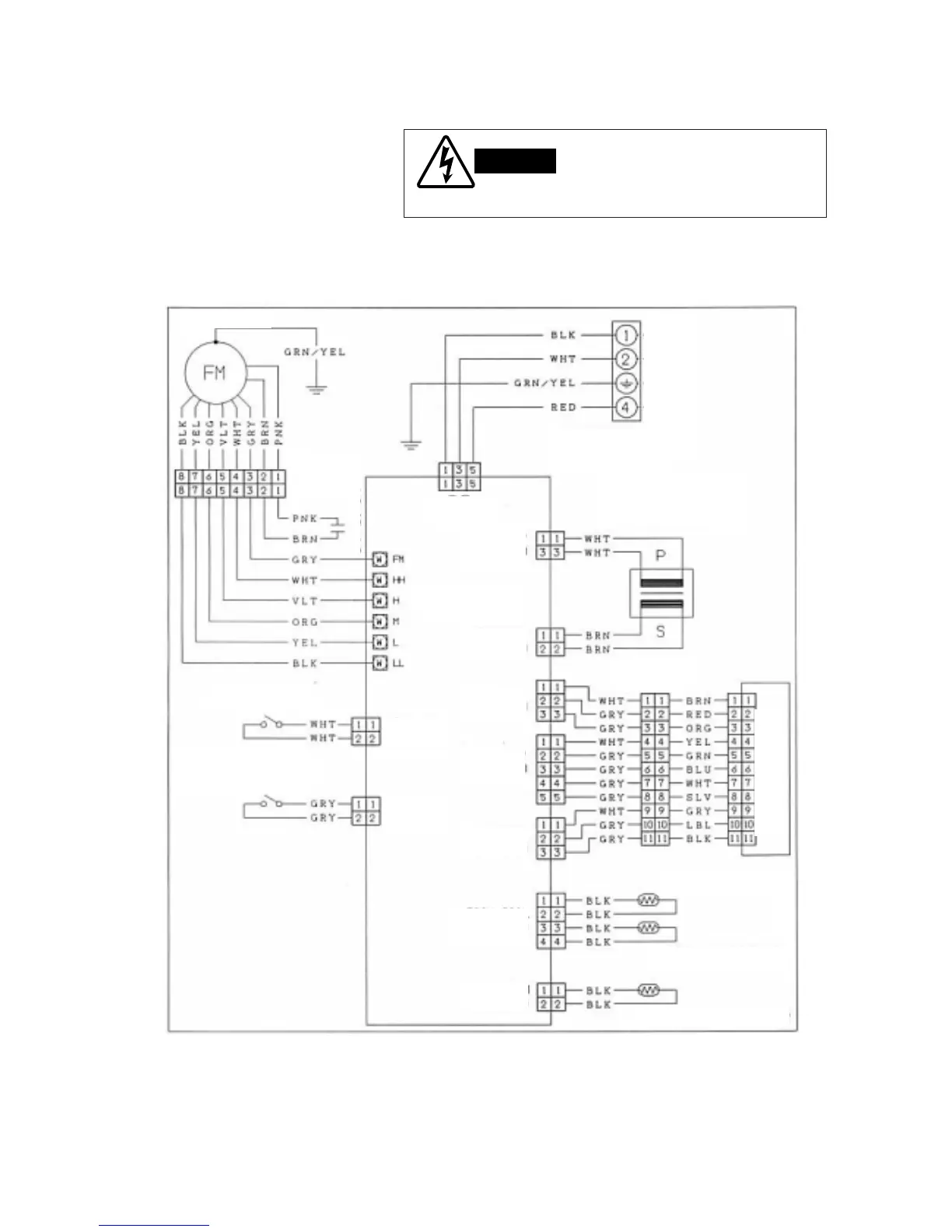

6-1. Electric Wiring Diagram
Indoor Unit SAP–DMRV93GJ
SAP–DMRV123GJ
SAP–DMRV183GJ
SAP–DMRV243GJ
To avoid electrical shock hazard, be
sure to disconnect power before
checking, servicing and/or cleaning
any electrical parts.
WARNING
